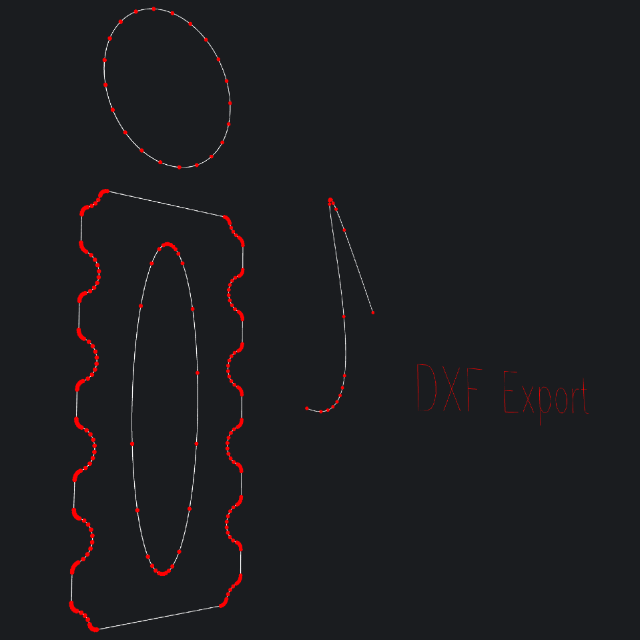

Script: TypeScript example of OCCT wires to JSCAD

const start = async () => {

    const compoundWires = await createCompoundShape();
    const transformedCompound = await bitbybit.occt.transforms.rotate({ shape: compoundWires, angle: 90, axis: [-1, 0, 0] });

    const wiresToPointsOpt = new Bit.Inputs.OCCT.WiresToPointsDto<Bit.Inputs.OCCT.TopoDSShapePointer>();
    wiresToPointsOpt.shape = transformedCompound;
    wiresToPointsOpt.angularDeflection = 0.3;
    const pointsOfWiresInCompound = await bitbybit.occt.shapes.wire.wiresToPoints(wiresToPointsOpt);

    const jscadPaths = await bitbybit.jscad.path.createPathsFromPoints({
        pointsLists: pointsOfWiresInCompound
    });

    const vectorTextOpt = new Bit.Inputs.JSCAD.TextDto();
    vectorTextOpt.xOffset = 10;
    vectorTextOpt.text = "DXF Export"
    const textVectors = await bitbybit.jscad.text.createVectorText(vectorTextOpt);
    const textPaths = await bitbybit.jscad.path.createPathsFromPoints({
        pointsLists: textVectors
    });

    const allPaths = [...jscadPaths, ...textPaths];

    bitbybit.jscad.downloadGeometryDxf({
        geometry: allPaths,
        fileName: "bitbybit-dxf"
    });

   const textOffset = bitbybit.jscad.expansions.offset({ geometry: textPaths, delta: 0.3, segments: 32, corners: Bit.Inputs.JSCAD.solidCornerTypeEnum.round });

    bitbybit.draw.drawAnyAsync({
        entity: textOffset
    });

    bitbybit.draw.drawAnyAsync({
        entity: transformedCompound
    });

    bitbybit.draw.drawAnyAsync({
        entity: pointsOfWiresInCompound.flat()
    });
}

async function createCompoundShape() {
    const filletWireDiff = await createWireWithCutouts();
    const ellipse = await createWireEllipse();
    const interpWire = await createWireInterpolated();
    const circleWire = await createWireCircle();
    return bitbybit.occt.shapes.compound.makeCompound({
        shapes: [filletWireDiff, ellipse, interpWire, circleWire]
    });
}

async function createWireInterpolated(): Promise<Bit.Inputs.OCCT.TopoDSWirePointer> {
    return bitbybit.occt.shapes.wire.interpolatePoints({
        points: [
            [5, 0, 0],
            [6, 0, 0],
            [6, 0, 6],
            [8, 0, 3],
        ],
        periodic: false,
        tolerance: 0.1,
    });
}

async function createWireCircle(): Promise<Bit.Inputs.OCCT.TopoDSWirePointer> {
    return bitbybit.occt.shapes.wire.createCircleWire({
        center: [0, 0, 8],
        direction: [0, 1, 0],
        radius: 2,
    })
}

async function createWireEllipse(): Promise<Bit.Inputs.OCCT.TopoDSWirePointer> {
    const ellipseOpt = new Bit.Inputs.OCCT.EllipseDto();
    ellipseOpt.radiusMajor = 4;
    return bitbybit.occt.shapes.wire.createEllipseWire(ellipseOpt)
}

async function createWireWithCutouts(): Promise<Bit.Inputs.OCCT.TopoDSWirePointer> {
    const rectOpt = new Bit.Inputs.OCCT.RectangleDto();
    rectOpt.width = 5;
    rectOpt.length = 10;
    const rect = await bitbybit.occt.shapes.face.createRectangleFace(rectOpt);
    const rectEdge1 = await bitbybit.occt.shapes.edge.getEdge({
        shape: rect,
        index: 2
    });
    const rectEdge2 = await bitbybit.occt.shapes.edge.getEdge({ shape: rect, index: 4 });
    const divOpt = new Bit.Inputs.OCCT.DivideDto<Bit.Inputs.OCCT.TopoDSEdgePointer>(rectEdge1);
    divOpt.nrOfDivisions = 5;
    const points1 = await bitbybit.occt.shapes.edge.divideEdgeByEqualDistanceToPoints(divOpt);
    divOpt.shape = rectEdge2;
    const points2 = await bitbybit.occt.shapes.edge.divideEdgeByEqualDistanceToPoints(divOpt);
    const allPoints = [...points1, ...points2];

    const circleOpt = new Bit.Inputs.OCCT.CircleDto();
    circleOpt.direction = [0, 1, 0];
    circleOpt.radius = 0.5;
    const circles = await Promise.all(allPoints.map(pt => {
        circleOpt.center = pt;
        return bitbybit.occt.shapes.face.createCircleFace(circleOpt);
    }));

    const diff = await bitbybit.occt.booleans.difference({
        shape: rect,
        shapes: circles,
        keepEdges: false
    });

    const wireDiff = await bitbybit.occt.shapes.wire.getWire({ shape: diff, index: 0 });
    return bitbybit.occt.fillets.fillet2d({ shape: wireDiff, radius: 0.2 });
}

start();
