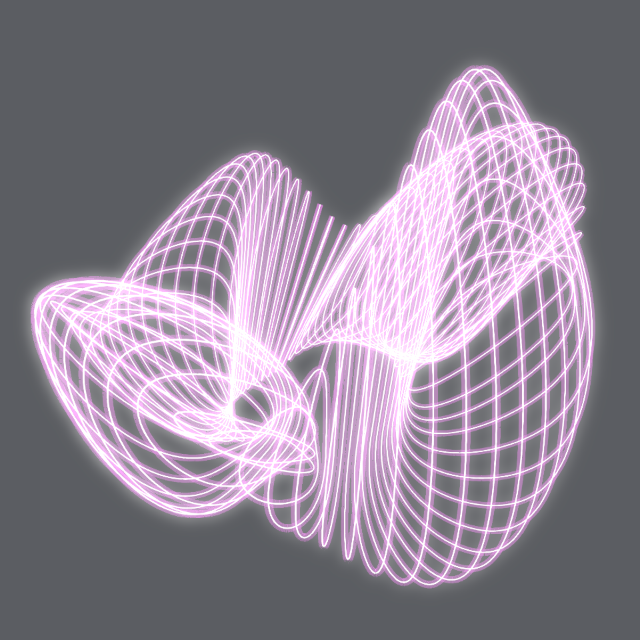

Script: The Orb

const scene = bitbybit.babylon.scene.getScene();

const pipeline = scene.postProcessRenderPipelineManager.supportedPipelines.find(s => s.name === "default");
if (!pipeline) {
    var defaultPipeline = new BABYLON.DefaultRenderingPipeline("default", true, scene, [scene.activeCamera]);
    defaultPipeline.bloomEnabled = true;
    defaultPipeline.fxaaEnabled = true;
    defaultPipeline.bloomWeight = 1;
}


const adjOpt = new Bit.Inputs.BabylonScene.CameraConfigurationDto();
adjOpt.position = [6, 0, -6];
adjOpt.lookAt = [0, 0, 0];
adjOpt.panningSensibility = 400;
adjOpt.wheelPrecision = 3;
bitbybit.babylon.scene.adjustActiveArcRotateCamera(adjOpt)

type Point3 = Bit.Inputs.Base.Point3;

const s1: Point3 = [1, 0, 0];
const s2: Point3 = [1, 0, 1];
const s3: Point3 = [-1, 0, 1];
const s4: Point3 = [-1, 0, -1];

const d1: Point3 = [2, 0.5, 0];
const d2: Point3 = [1.5, 0.5, 2];
const d3: Point3 = [-1, 0.6, 1.2];
const d4: Point3 = [-1.5, 0.3, -1.3];

const c1: Point3 = [3, 0, 0];
const c2: Point3 = [3.5, 0, 3];
const c3: Point3 = [-2, 0, 2.2];
const c4: Point3 = [-2.5, 0, -2.3];

let resolved = true;
let lastWireMesh: BABYLON.Mesh[] = [];
let lastInstances: BABYLON.InstancedMesh[] = [];

let step1 = 0.0004;
let step2 = -0.0008;
let step3 = -0.0012;
let step4 = -0.0016;

let val1 = -1;
let val2 = -3;
let val3 = -2;
let val4 = 1;


const rotationVec = new BABYLON.Vector3(0, 1, 0);
const rotationPoint = new BABYLON.Vector3(0, 0, 0);
let rotation = 0.01;

const optWireDraw = new Bit.Inputs.Draw.DrawOcctShapeOptions();
optWireDraw.precision = 0.04;
optWireDraw.edgeWidth = 10;
optWireDraw.edgeOpacity = 0.3;
optWireDraw.edgeColour = "#ff44ff";
optWireDraw.drawFaces = false;

const instanceEdgesColor = new BABYLON.Color4(1, 1, 1, 1)

const nrDivisions = 70;

const divideToPointsOptions = new Bit.Inputs.OCCT.DivideShapesDto<Bit.Inputs.OCCT.TopoDSWirePointer>(undefined, nrDivisions, true, false);

let indexCounter = 0;

bitbybit.time.registerRenderFunction(() => {
    if (indexCounter % 1000 === 0) {
        step1 *= -1
    }

    if (indexCounter % 2500 === 0) {
        step2 *= -1
    }

    if (indexCounter % 500 === 0) {
        step4 *= -1
    }

    if (indexCounter % 1500 === 0) {
        step3 *= -1
    }

    val1 += step1;
    val2 += step2;
    val3 += step3;
    val4 += step4;

    s1[1] = val1;
    s2[1] = val1;
    s3[1] = val1;
    s4[1] = val1;

    d1[1] = val4;
    d2[1] = val2;
    d3[1] = val4;
    d4[1] = val2;

    c1[1] = val3;
    c2[1] = -val1;
    c3[1] = val2;
    c4[1] = -val3;

    if (resolved) {
        start();
    }

    indexCounter++;
    rotation += 0.001;
});

async function start() {

    resolved = false;

    await bitbybit.occt.cleanAllCache();


    const intDto: Bit.Inputs.OCCT.InterpolateWiresDto = {
        interpolations: [
            {
                points: [s1, s2, s3, s4],
                periodic: true,
                tolerance: 0.1
            },
            {
                points: [d1, d2, d3, d4],
                periodic: true,
                tolerance: 0.1
            },
            {
                points: [c1, c2, c3, c4],
                periodic: true,
                tolerance: 0.1
            }
        ],
        returnCompound: false
    }

    const wrs = await bitbybit.occt.shapes.wire.interpolateWires(intDto) as Bit.Inputs.OCCT.TopoDSWirePointer[];

    divideToPointsOptions.shapes = wrs;
    const ptsOnWires = await bitbybit.occt.shapes.wire.divideWiresByParamsToPoints(divideToPointsOptions)

    const interpDto: Bit.Inputs.OCCT.InterpolateWiresDto = {
        interpolations: [],
        returnCompound: true
    };

    const flipped = bitbybit.lists.flipLists({
        list: ptsOnWires
    });
    flipped.forEach((pw) => {
        interpDto.interpolations.push({
            points: [...pw],
            periodic: true,
            tolerance: 0.1
        });

    });

    const wires = await bitbybit.occt.shapes.wire.interpolateWires(interpDto) as Bit.Inputs.OCCT.TopoDSCompoundPointer;

    const mesh = await bitbybit.draw.drawAnyAsync({
        entity: wires,
        options: optWireDraw
    });

    if (mesh) {
        mesh.rotateAround(rotationPoint, rotationVec, rotation);

        lastInstances.forEach(i => {
            i.dispose();
        });

        const children = mesh.getChildMeshes() as BABYLON.LinesMesh[];

        const instance = children[0].createInstance("cool");
        instance.enableEdgesRendering();
        instance.edgesColor = instanceEdgesColor;
        instance.edgesWidth = 2;
        instance.rotateAround(rotationPoint, rotationVec, rotation);
        lastInstances = [instance];

        if (lastWireMesh && lastWireMesh.length > 0) {
            lastWireMesh.forEach(s => {
                s.dispose();
            })
        }

        lastWireMesh.push(mesh);
    }

    await bitbybit.occt.deleteShapes({ shapes: [...wrs, wires] })
    resolved = true;


}
