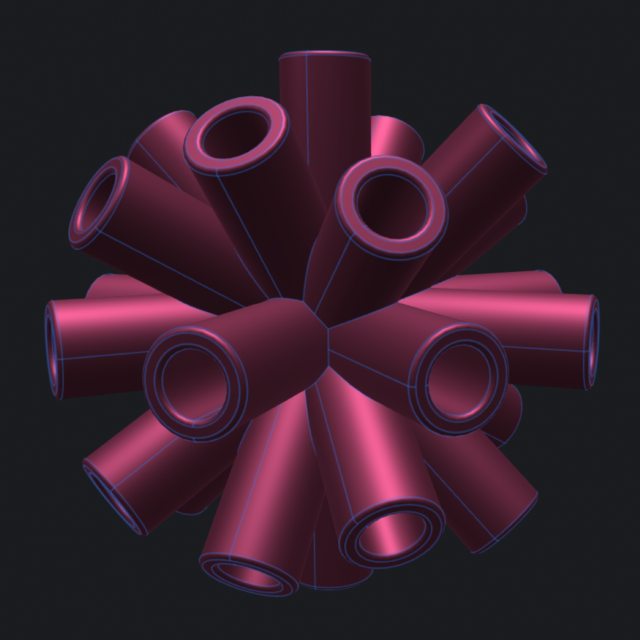

Script: Multi Axis Parametric Joint

// joint parameters
const jointTotalHeight = 14;
const jointWallThickness = 0.3;
const jointEdgeFilletRadiusPercentage = 0;

// joint hole parameters
const jointRadiusOfTheHole = 0.83;
const jointHoleDepth = 2;

// joint rotation parameters
const xDivisions = 1;
const zDivisions = 1;

// output parameters
const splitInHalfFor3DPrint = true;
const saveStepFile = false;
const whiteColour = '#ffffff';
const faceColour = '#ff2966';
const edgeColour = '#297fff';

const doubleHeight = jointTotalHeight * 3;
bitbybit.babylon.scene.drawPointLight({ position: [doubleHeight, doubleHeight, doubleHeight], intensity: 3000, radius: 0, diffuse: whiteColour, specular: whiteColour });

start();

async function start() {

    const cylinder = await makeCylinder(jointWallThickness, jointRadiusOfTheHole, jointTotalHeight / 2, jointHoleDepth, (jointWallThickness / 2) * (jointEdgeFilletRadiusPercentage / 100));
    const rotatedShapes = await rotateInPositions(cylinder, xDivisions, zDivisions);

    const union = await bitbybit.occt.booleans.union({ shapes: rotatedShapes, keepEdges: false });

    let resultShape = union;
    if (splitInHalfFor3DPrint) {
        const box = await bitbybit.occt.shapes.solid.createBox({ width: doubleHeight, height: doubleHeight, length: doubleHeight, center: [0, 0, -doubleHeight / 2] });

        const half = await bitbybit.occt.booleans.difference({ shape: union, shapes: [box], keepEdges: false });
        resultShape = half;
    }

    const drawOptions = new Bit.Inputs.Draw.DrawOcctShapeOptions();
    drawOptions.faceColour = faceColour;
    drawOptions.edgeColour = edgeColour;
    drawOptions.edgeOpacity = 0.3;
    drawOptions.edgeWidth = 5;
    bitbybit.draw.drawAnyAsync({ entity: resultShape, options: drawOptions });

    if (saveStepFile) {
        bitbybit.occt.io.saveShapeSTEP({ shape: resultShape, fileName: 'bitbybit-dev.step', adjustYtoZ: true })
    }
}

async function makeCylinder(thickness: number, radiusHole: number, height: number, holeDepth: number, roundRadius: number) {
    const cylinderBase = await bitbybit.occt.shapes.solid.createCylinder({ center: [0, 0, 0], height, radius: radiusHole + thickness, direction: [0, 1, 0] });
    const cylinderHole = await bitbybit.occt.shapes.solid.createCylinder({ center: [0, holeDepth, 0], height, radius: radiusHole, direction: [0, 1, 0] });
    const cyl = await bitbybit.occt.booleans.difference({ shape: cylinderBase, shapes: [cylinderHole], keepEdges: false });
    const mirrored = await bitbybit.occt.transforms.mirror({ shape: cyl, direction: [0, 0, 1], origin: [0, 0, 0] });
    const finalCyl = await bitbybit.occt.booleans.union({ shapes: [cyl, mirrored], keepEdges: false });
    let result = finalCyl
    let finalRoundRadius;
    if (roundRadius * 2 >= thickness) {
        finalRoundRadius = roundRadius - 0.0001;
    } else {
        finalRoundRadius = roundRadius;
    }
    if (finalRoundRadius !== 0) {
        result = await bitbybit.occt.fillets.filletEdges({ shape: finalCyl, radius: finalRoundRadius, indexes: [1, 3, 4, 5] });
    }
    return result;
}

async function rotateInPositions(shape: any, numOnXAxis: number, numOnZAxis: number) {

    const shapes = [];

    for (let i = -90 + (90 / numOnXAxis); i < 90; i += 90 / numOnXAxis) {
        const rotation = new Bit.Inputs.OCCT.RotateDto(shape, [1, 0, 0], i);
        const rotatedShapeX = await bitbybit.occt.transforms.rotate(rotation);

        for (let j = -90; j < 90; j += 90 / numOnZAxis) {
            const rotationY = new Bit.Inputs.OCCT.RotateDto(rotatedShapeX, [0, 0, 1], j);
            const rotatedShapeXY = await bitbybit.occt.transforms.rotate(rotationY);
            shapes.push(rotatedShapeXY);
        }
    }

    const rotation = new Bit.Inputs.OCCT.RotateDto(shape, [1, 0, 0], 90);
    const rotatedShapeToY = await bitbybit.occt.transforms.rotate(rotation);
    shapes.push(rotatedShapeToY);

    return shapes;
}
