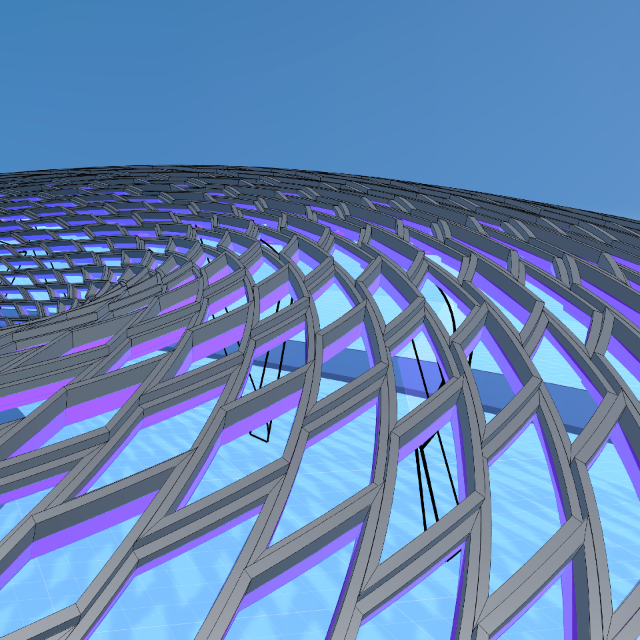

Script: Structural Roof Script
- Type
blockly- Project
- Parametric Roof Concept
- Author
- bitbybit
- Date Created
- Dec 23, 2022, 2:58:28 PM
- Last Edit Date
- Feb 28, 2025, 4:04:39 PM
Project Information
Algorithms allow to create rules for large scale 3D structures. Composing such objects from small components makes building process easier. Discrete parts can be assembled more easily. This script illustrates the possibilities of our platform. We make use of professional geometry kernels. In the latest release we tuned performance for faster rendering of such objects.
