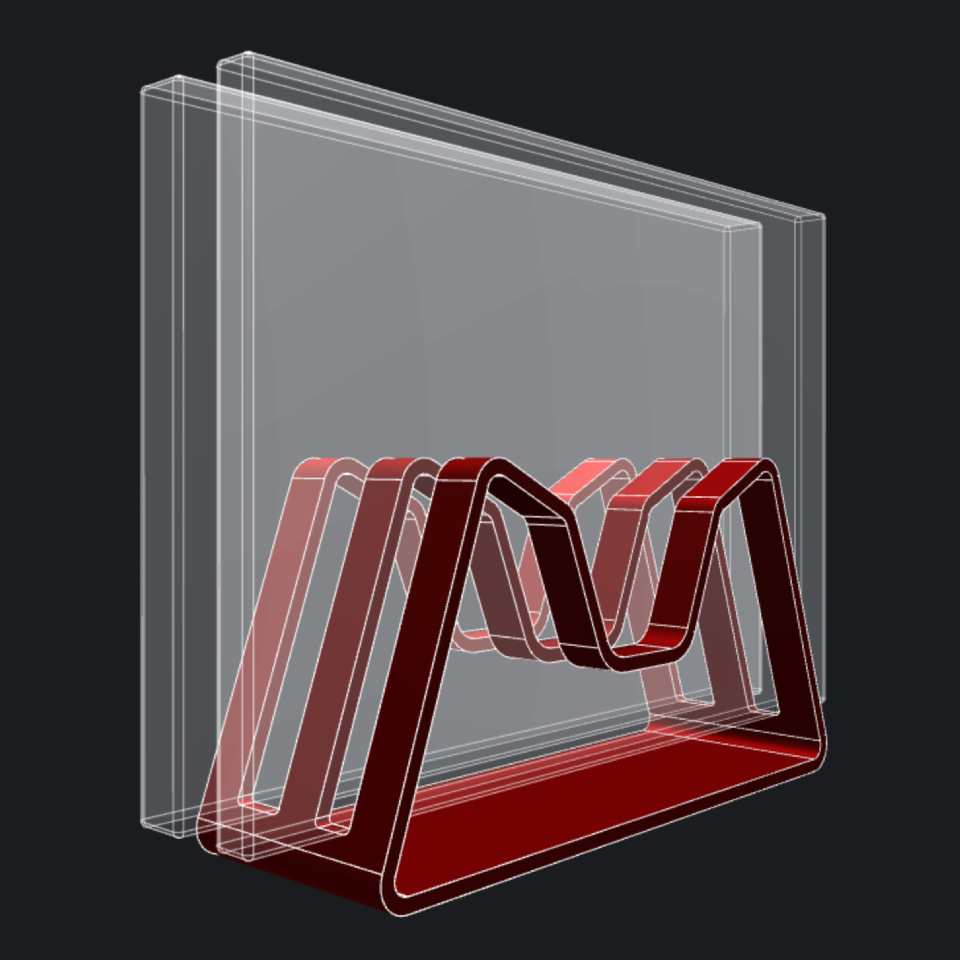

Multi slot laptop vertical stand
- Author
- matas
- Type
typescript- App Version
- 0.13.0
- Visibility
- public
- Date Created
- Apr 9, 2021, 8:12:43 PM
- Last Edit Date
- Dec 5, 2023, 5:05:43 PM
Script Details
The Code
const whiteColor = '#ffffff';
const holderColor = '#333333';
const laptopLiftedHeight = 3;
const distanceBetweenLaptops = 1.7;
const exportSTEP = false;
const laptops: Latop[] = [
{
width: 30.41,
length: 1.5,
height: 21.24,
},
{
width: 30.41,
length: 1.5,
height: 21.24,
}
]
bitbybit.babylon.scene.backgroundColour({ colour: '#bbbbbb' });
const cameraConf = new Bit.Inputs.BabylonScene.CameraConfigurationDto();
cameraConf.lookAt = [0, 11, 0];
cameraConf.position = [30, 10, 35];
cameraConf.wheelPrecision = 0.3;
cameraConf.panningSensibility = 1000;
bitbybit.babylon.scene.adjustActiveArcRotateCamera(cameraConf);
const pointLightConf = new Bit.Inputs.BabylonScene.PointLightDto();
pointLightConf.position = [-15, 20, -5];
pointLightConf.intensity = 8000;
pointLightConf.diffuse = '#3333ff';
pointLightConf.radius = 0;
bitbybit.babylon.scene.drawPointLight(pointLightConf);
const controlPoints = [
[-12.5, 0, 0],
[-8, 13, 0],
[-4, 11, 0],
[-2, 6, 0],
[2, 6, 0],
[4, 14, 0],
[8, 17, 0],
[12.5, 0, 0]
] as Bit.Inputs.Base.Point3[];
let laptopStand;
let laptopStandMesh;
const laptopsFilletsMesh = [];
start();
async function start() {
const ground = await bitbybit.occt.shapes.face.createCircleFace({ center: [0, 0, 0], direction: [0, 1, 0], radius: 75, });
const groundOptions = new Bit.Inputs.Draw.DrawOcctShapeOptions();
groundOptions.faceColour = whiteColor;
groundOptions.drawEdges = false;
await bitbybit.draw.drawAnyAsync({ entity: ground, options: groundOptions });
const renderLaptops = async (laptops) => {
laptops.forEach(laptop => {
laptop.center = [0, laptop.height / 2 + laptopLiftedHeight, 0] as Bit.Inputs.Base.Point3;
});
let laptopFillets = [];
let totalDistance = 0;
let previousLaptopLength = 0;
laptops.forEach(async (laptop, index) => {
totalDistance += distanceBetweenLaptops + laptop.length / 2 + previousLaptopLength / 2;
previousLaptopLength = laptop.length;
laptop.center[2] = totalDistance;
const laptopBaseModel = await bitbybit.occt.shapes.solid.createBox({
width: laptop.width,
length: laptop.length,
height: laptop.height,
center: laptop.center
});
const laptopFillet = await bitbybit.occt.fillets.filletEdges({ shape: laptopBaseModel, indexes: undefined, radius: 0.2 });
laptopFillets.push(laptopFillet);
const laptopVisModel = await bitbybit.occt.shapes.solid.createBox({
width: laptop.width,
length: laptop.length - 0.01,
height: laptop.height,
center: laptop.center
});
const laptopVisFillet = await bitbybit.occt.fillets.filletEdges({ shape: laptopVisModel, indexes: undefined, radius: 0.2 });
laptopFillets.push(laptopFillet);
const di = new Bit.Inputs.OCCT.DrawShapeDto(laptopVisFillet);
di.faceOpacity = 0.2;
di.edgeWidth = 5;
di.edgeOpacity = 0.6;
di.edgeColour = whiteColor;
di.faceColour = whiteColor;
const laptopFilletMesh = await bitbybit.occt.drawShape(di);
laptopsFilletsMesh.push(laptopFilletMesh);
})
const polygonWire = await bitbybit.occt.shapes.wire.createPolygonWire({
points: controlPoints
});
const extrusion = await bitbybit.occt.operations.extrude({
shape: polygonWire, direction: [0, 0, totalDistance += distanceBetweenLaptops + previousLaptopLength / 2]
});
const laptopStandFillet = await bitbybit.occt.fillets.filletEdges({ shape: extrusion, indexes: undefined, radius: 1 });
const laptopStandThick = await bitbybit.occt.operations.makeThickSolidSimple({ shape: laptopStandFillet, offset: -0.5 });
laptopStand = await bitbybit.occt.booleans.difference({ shape: laptopStandThick, shapes: laptopFillets, keepEdges: false });
const li = new Bit.Inputs.OCCT.DrawShapeDto(laptopStand);
li.faceOpacity = 1;
li.faceColour = holderColor;
li.edgeColour = whiteColor;
li.edgeWidth = 5;
laptopStandMesh = await bitbybit.draw.drawAnyAsync({ entity: laptopStand, options: li });
}
await renderLaptops(laptops);
}
class Latop {
width: number;
length: number;
height: number;
center?: Bit.Inputs.Base.Point3;
}
