Script: Multi slot laptop vertical stand

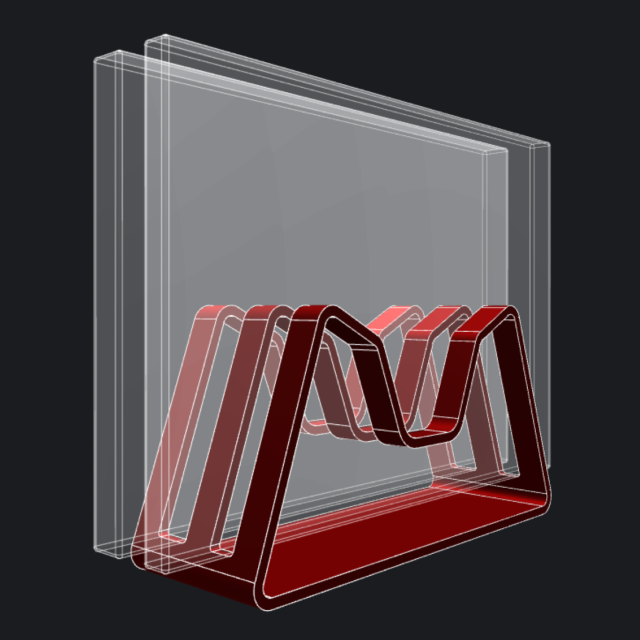

Multi slot laptop vertical stand picture
Type
Typescript logo indicatortypescript
Author
matas
Date Created
Apr 9, 2021, 11:12:43 PM
Last Edit Date
Dec 5, 2023, 7:05:43 PM

Project Information

Multi slot and single slot configurable laptop stand. Change parameters and you will be able to configure this stand for your own purposes in minutes.

View Full Project

Script Code

const whiteColor = '#ffffff';
const holderColor = '#333333';

const laptopLiftedHeight = 3;
const distanceBetweenLaptops = 1.7;
const exportSTEP = false;

const laptops: Latop[] = [
    {
        width: 30.41,
        length: 1.5,
        height: 21.24,
    },
    {
        width: 30.41,
        length: 1.5,
        height: 21.24,
    }
]

bitbybit.babylon.scene.backgroundColour({ colour: '#bbbbbb' });

const cameraConf = new Bit.Inputs.BabylonScene.CameraConfigurationDto();
cameraConf.lookAt = [0, 11, 0];
cameraConf.position = [30, 10, 35];
cameraConf.wheelPrecision = 0.3;
cameraConf.panningSensibility = 1000;
bitbybit.babylon.scene.adjustActiveArcRotateCamera(cameraConf);

const pointLightConf = new Bit.Inputs.BabylonScene.PointLightDto();
pointLightConf.position = [-15, 20, -5];
pointLightConf.intensity = 8000;
pointLightConf.diffuse = '#3333ff';
pointLightConf.radius = 0;
bitbybit.babylon.scene.drawPointLight(pointLightConf);

const controlPoints = [
    [-12.5, 0, 0],
    [-8, 13, 0],
    [-4, 11, 0],
    [-2, 6, 0],
    [2, 6, 0],
    [4, 14, 0],
    [8, 17, 0],
    [12.5, 0, 0]
] as Bit.Inputs.Base.Point3[];

let laptopStand;
let laptopStandMesh;

const laptopsFilletsMesh = [];

start();

async function start() {
    const ground = await bitbybit.occt.shapes.face.createCircleFace({ center: [0, 0, 0], direction: [0, 1, 0], radius: 75, });
    const groundOptions = new Bit.Inputs.Draw.DrawOcctShapeOptions();
    groundOptions.faceColour = whiteColor;
    groundOptions.drawEdges = false;
    await bitbybit.draw.drawAnyAsync({ entity: ground, options: groundOptions });

    const renderLaptops = async (laptops) => {

        laptops.forEach(laptop => {
            laptop.center = [0, laptop.height / 2 + laptopLiftedHeight, 0] as Bit.Inputs.Base.Point3;
        });

        let laptopFillets = [];
        let totalDistance = 0;
        let previousLaptopLength = 0;

        laptops.forEach(async (laptop, index) => {
            totalDistance += distanceBetweenLaptops + laptop.length / 2 + previousLaptopLength / 2;
            previousLaptopLength = laptop.length;
            laptop.center[2] = totalDistance;
            const laptopBaseModel = await bitbybit.occt.shapes.solid.createBox({
                width: laptop.width,
                length: laptop.length,
                height: laptop.height,
                center: laptop.center
            });
            const laptopFillet = await bitbybit.occt.fillets.filletEdges({ shape: laptopBaseModel, indexes: undefined, radius: 0.2 });
            laptopFillets.push(laptopFillet);

            const laptopVisModel = await bitbybit.occt.shapes.solid.createBox({
                width: laptop.width,
                length: laptop.length - 0.01,
                height: laptop.height,
                center: laptop.center
            });
            const laptopVisFillet = await bitbybit.occt.fillets.filletEdges({ shape: laptopVisModel, indexes: undefined, radius: 0.2 });
            laptopFillets.push(laptopFillet);

            const di = new Bit.Inputs.OCCT.DrawShapeDto(laptopVisFillet);
            di.faceOpacity = 0.2;
            di.edgeWidth = 5;
            di.edgeOpacity = 0.6;
            di.edgeColour = whiteColor;
            di.faceColour = whiteColor;
            const laptopFilletMesh = await bitbybit.occt.drawShape(di);
            laptopsFilletsMesh.push(laptopFilletMesh);
        })

        const polygonWire = await bitbybit.occt.shapes.wire.createPolygonWire({
            points: controlPoints
        });
        const extrusion = await bitbybit.occt.operations.extrude({
            shape: polygonWire, direction: [0, 0, totalDistance += distanceBetweenLaptops + previousLaptopLength / 2]
        });
        const laptopStandFillet = await bitbybit.occt.fillets.filletEdges({ shape: extrusion, indexes: undefined, radius: 1 });
        const laptopStandThick = await bitbybit.occt.operations.makeThickSolidSimple({ shape: laptopStandFillet, offset: -0.5 });

        laptopStand = await bitbybit.occt.booleans.difference({ shape: laptopStandThick, shapes: laptopFillets, keepEdges: false });
        const li = new Bit.Inputs.OCCT.DrawShapeDto(laptopStand);
        li.faceOpacity = 1;
        li.faceColour = holderColor;
        li.edgeColour = whiteColor;
        li.edgeWidth = 5;
        laptopStandMesh = await bitbybit.draw.drawAnyAsync({ entity: laptopStand, options: li });
    }

    await renderLaptops(laptops);
}

class Latop {
    width: number;
    length: number;
    height: number;
    center?: Bit.Inputs.Base.Point3;
}
