TypeScript Manifold Example
- Author
- bitbybit
- Type
typescript- App Version
- 0.19.0
- Visibility
- public
- Date Created
- Nov 27, 2024, 2:03:31 PM
- Last Edit Date
- Nov 27, 2024, 2:18:20 PM
Script Details

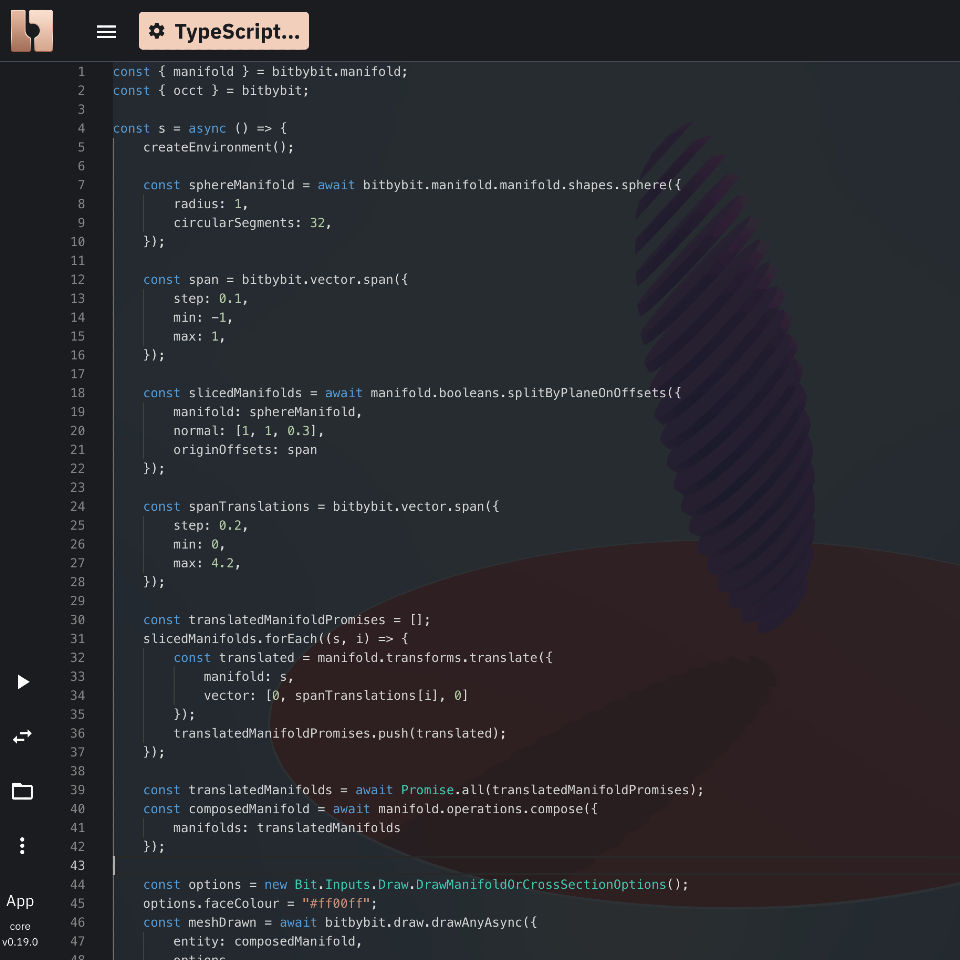

The Code
const { manifold } = bitbybit.manifold;
const { occt } = bitbybit;
const s = async () => {
createEnvironment();
const sphereManifold = await bitbybit.manifold.manifold.shapes.sphere({
radius: 1,
circularSegments: 32,
});
const span = bitbybit.vector.span({
step: 0.1,
min: -1,
max: 1,
});
const slicedManifolds = await manifold.booleans.splitByPlaneOnOffsets({
manifold: sphereManifold,
normal: [1, 1, 0.3],
originOffsets: span
});
const spanTranslations = bitbybit.vector.span({
step: 0.2,
min: 0,
max: 4.2,
});
const translatedManifoldPromises = [];
slicedManifolds.forEach((s, i) => {
const translated = manifold.transforms.translate({
manifold: s,
vector: [0, spanTranslations[i], 0]
});
translatedManifoldPromises.push(translated);
});
const translatedManifolds = await Promise.all(translatedManifoldPromises);
const composedManifold = await manifold.operations.compose({
manifolds: translatedManifolds
});
const options = new Bit.Inputs.Draw.DrawManifoldOrCrossSectionOptions();
options.faceColour = "#ff00ff";
const meshDrawn = await bitbybit.draw.drawAnyAsync({
entity: composedManifold,
options
});
const circleGround = await occt.shapes.face.createCircleFace({
radius: 5,
center: [0, -1, 0],
direction: [0, 1, 0],
});
bitbybit.time.registerRenderFunction(() => {
bitbybit.babylon.mesh.yaw({
babylonMesh: meshDrawn,
rotate: 0.5
});
});
bitbybit.draw.drawAnyAsync({
entity: circleGround
});
}
function createEnvironment() {
const skybox = new Bit.Inputs.BabylonScene.SkyboxDto();
bitbybit.babylon.scene.enableSkybox(skybox);
const lightOpt = new Bit.Inputs.BabylonScene.DirectionalLightDto();
lightOpt.intensity = 3;
lightOpt.direction = [-100,-100,-50]
bitbybit.babylon.scene.drawDirectionalLight(lightOpt);
}
s();
