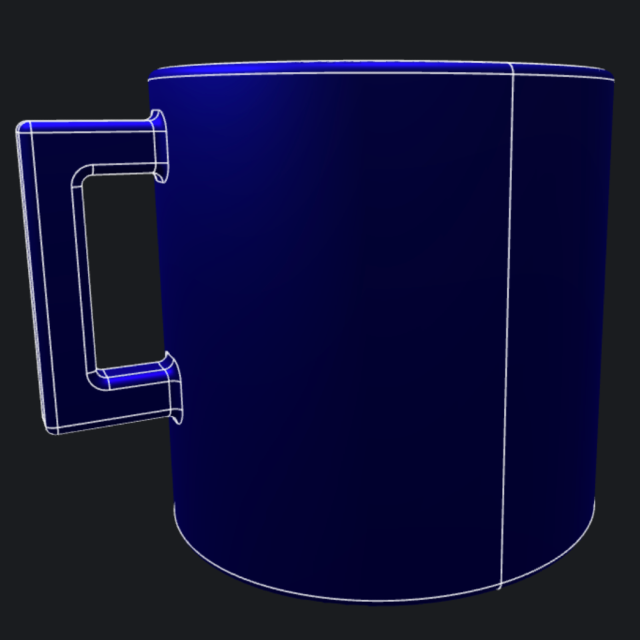

Script: Parametric cup script

const whiteColour = '#ffffff';


const cupHeight = 13;
const cupRadius = 4.5;
const cupThickness = 1;

const cupHolderWidth = 3;
const cupHolderHeight = 8;
const cupHolderLength = 2;
const cupHolderThickness = 1.5;

const roundingRadius = 0.3;

const faceColour = '#0000ff';
const edgeColour = whiteColour;



start();

async function start() {

    bitbybit.babylon.scene.drawPointLight({
        position: [10, 15, 5],
        diffuse: whiteColour,
        specular: whiteColour,
        intensity: 2000,
        radius: 0.05,
        shadowDarkness: 0,
        enableShadows: true,
        shadowGeneratorMapSize: 1024
    })

    const box = await bitbybit.occt.shapes.solid.createBox({
        width: cupHolderWidth * 2,
        height: cupHolderHeight,
        length: cupHolderLength,
        center: [cupRadius, cupHeight / 1.7, 0]
    });

    const boxInside = await bitbybit.occt.shapes.solid.createBox({
        width: (cupHolderWidth * 2) - (cupHolderThickness * 2),
        height: cupHolderHeight - (cupHolderThickness * 2),
        length: cupHolderLength * 1.2,
        center: [cupRadius, cupHeight / 1.7, 0]
    });

    const boolHolder = await bitbybit.occt.booleans.difference({
        shape: box,
        shapes: [boxInside],
        keepEdges: false
    });

    const cylinder = await bitbybit.occt.shapes.solid.createCylinder({
        center: [0, 0, 0],
        radius: cupRadius,
        height: cupHeight
    });

    const baseUnion = await bitbybit.occt.booleans.union({
        shapes: [cylinder, boolHolder],
        keepEdges: false
    });

    const cylinderInside = await bitbybit.occt.shapes.solid.createCylinder({
        center: [0, cupThickness, 0],
        radius: cupRadius - cupThickness,
        height: cupHeight
    });

    const cupBase = await bitbybit.occt.booleans.difference({
        shape: baseUnion,
        shapes: [cylinderInside],
        keepEdges: false
    });

    const rounded = await bitbybit.occt.fillets.filletEdges({
        radius: roundingRadius,
        indexes: undefined,
        shape: cupBase
    });

    const di = new Bit.Inputs.Draw.DrawOcctShapeOptions();
    di.faceColour = faceColour;
    di.faceOpacity = 1;
    di.edgeOpacity = 1;
    di.edgeWidth = 3;
    di.drawEdges = true;
    di.edgeColour = edgeColour;
    di.precision = 0.01;
    await bitbybit.draw.drawAnyAsync({ entity: rounded, options: di });

}

// ######### Option 1

// const cupHeight = 13;
// const cupRadius = 4.5;
// const cupThickness = 1;

// const cupHolderWidth = 3;
// const cupHolderHeight = 8;
// const cupHolderLength = 2;
// const cupHolderThickness = 1.5;

// const roundingRadius = 0.3;

// const faceColour = '#0000ff';
// const edgeColour = whiteColour;



// ######### Option 2

// const cupHeight = 10;
// const cupRadius = 10;
// const cupThickness = 2;

// const cupHolderWidth = 6;
// const cupHolderHeight = 6;
// const cupHolderLength = 2;
// const cupHolderThickness = 2;

// const roundingRadius = 0.6;

// const faceColour = '#ff00ff';
// const edgeColour = whiteColour;




// ######### Option 3

// const cupHeight = 10;
// const cupRadius = 4.5;
// const cupThickness = 1;

// const cupHolderWidth = 2;
// const cupHolderHeight = 7;
// const cupHolderLength = 3;
// const cupHolderThickness = 1;

// const roundingRadius = 0.1;

// const faceColour = '#ff0000';
// const edgeColour = '#bbbbff';
