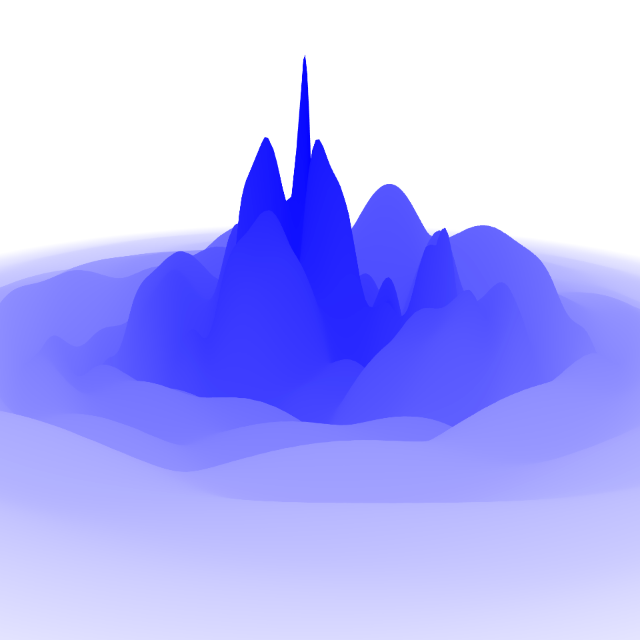

Script: Artificial Intelligence Generated 3D Sound Waves

createGUI();

const start = () => {
    // Get the Babylon.js scene (assuming a BitByBit context or similar setup)
    const scene = bitbybit.babylon.scene.getScene();

    // Create the plane with increased subdivisions for even smoother waves
    const plane = BABYLON.MeshBuilder.CreateGround(
        "wavePlane",
        { width: 40, height: 40, subdivisions: 300, updatable: true }, // Increased from 300 to 400
        scene
    );

    // Plane Vertex Shader
    BABYLON.Effect.ShadersStore["neonVertexShader"] = `
    precision highp float;
    attribute vec3 position;
    uniform mat4 worldViewProjection;
    varying vec2 vPos;
    void main() {
        gl_Position = worldViewProjection * vec4(position, 1.0);
        vPos = position.xz;
    }
`;

    // Plane Fragment Shader
    BABYLON.Effect.ShadersStore["neonFragmentShader"] = `
    precision highp float;
    varying vec2 vPos;
    void main() {
        float distance = length(vPos);
        if (distance > 20.0) {
            discard;
        } else {
            float normalizedDistance = distance / 20.0;
            vec3 blue = vec3(0.0, 0.0, 1.0);
            vec3 white = vec3(1.0, 1.0, 1.0);
            vec3 color = mix(blue, white, normalizedDistance);
            gl_FragColor = vec4(color, 1.0);
        }
    }
`;

    // Create shader material for the plane
    const shaderMaterial = new BABYLON.ShaderMaterial(
        "neonShader",
        scene,
        { vertex: "neon", fragment: "neon" },
        {
            attributes: ["position"],
            uniforms: ["worldViewProjection"]
        }
    );
    shaderMaterial.backFaceCulling = false;
    plane.material = shaderMaterial;

    // Add glow layer
    const glowLayer = new BABYLON.GlowLayer("glow", scene);
    glowLayer.intensity = 1.5;

    bitbybit.babylon.scene.backgroundColour({
        colour: "#ffffff",
    });

    // Audio Setup
    const audioContext = new AudioContext();
    let analyser, dataArray, gainNode;

    navigator.mediaDevices.getUserMedia({ audio: true })
        .then((stream) => {
            const source = audioContext.createMediaStreamSource(stream);
            gainNode = audioContext.createGain();
            analyser = audioContext.createAnalyser();
            gainNode.gain.value = 5.0;
            analyser.fftSize = 2048;
            const bufferLength = analyser.frequencyBinCount;
            dataArray = new Uint8Array(bufferLength);
            source.connect(gainNode);
            gainNode.connect(analyser);
            console.log("Microphone connected!");
        })
        .catch((err) => {
            console.error("Microphone error:", err);
            alert("Please allow microphone access.");
        });

    // Animation Parameters
    const numBands = 10;
    const amplitudeFactor = 6.0; // Increased from 4.0 for taller waves
    const baseFreq = 0.5; // Decreased from 1.0 for larger waves
    const maxRadius = 20;
    let rotationAngle = 0;

    // Random phases for waves
    const angles = [];
    for (let j = 0; j < numBands; j++) {
        angles[j] = Math.random() * Math.PI * 2;
    }

    scene.onBeforeRenderObservable.add(() => {
        if (!analyser || !dataArray) return;

        analyser.getByteFrequencyData(dataArray);

        // Compute amplitudes from audio
        const bandSize = Math.floor(dataArray.length / numBands);
        const amplitudes = [];
        for (let i = 0; i < numBands; i++) {
            let sum = 0;
            for (let j = 0; j < bandSize; j++) {
                sum += dataArray[i * bandSize + j];
            }
            amplitudes[i] = (sum / bandSize / 255) * amplitudeFactor;
        }

        // Update plane vertices for wave effect
        const positions = plane.getVerticesData(BABYLON.VertexBuffer.PositionKind);
        if (!positions) return;

        const numVertices = positions.length / 3;
        const time = performance.now() / 1000;

        for (let i = 0; i < numVertices; i++) {
            const x = positions[i * 3];
            const z = positions[i * 3 + 2];
            const r = Math.sqrt(x * x + z * z);
            let yDisp = 0;

            if (r <= maxRadius) {
                const theta = Math.atan2(z, x);
                const scale = Math.pow(1 - r / maxRadius, 2);

                for (let j = 0; j < numBands; j++) {
                    const freq = (j + 1) * baseFreq;
                    const wave = Math.sin(freq * r + time * 0.5 + angles[j]) * Math.cos((j + 1) * theta);
                    yDisp += amplitudes[j] * wave;
                }
                yDisp *= scale;
            }

            positions[i * 3 + 1] = yDisp;
        }

        // Rotate the plane
        rotationAngle += 0.005;
        plane.rotation.y = rotationAngle;

        plane.updateVerticesData(BABYLON.VertexBuffer.PositionKind, positions);
        plane.refreshBoundingInfo();
    });
}

function createGUI() {
    const gui = bitbybit.babylon.gui;
    const textOpt = new Bit.Inputs.BabylonGui.CreateFullScreenUIDto();
    const fullScreenUI = gui.advancedDynamicTexture.createFullScreenUI(textOpt);
    const stackPanelOpt = new Bit.Inputs.BabylonGui.CreateStackPanelDto();
    stackPanelOpt.background = "#00000000";
    const stackPanel = gui.stackPanel.createStackPanel(stackPanelOpt);
    const stackPanelOpt2 = new Bit.Inputs.BabylonGui.CreateStackPanelDto();
    stackPanelOpt2.background = "#00000000";
    const stackPanel2 = gui.stackPanel.createStackPanel(stackPanelOpt2);
    stackPanel2.verticalAlignment = BABYLON.GUI.Control.VERTICAL_ALIGNMENT_BOTTOM;
    fullScreenUI.addControl(stackPanel2);
    stackPanel.paddingTopInPixels = 10;
    stackPanel2.addControl(stackPanel);

    const buttonOptions = new Bit.Inputs.BabylonGui.CreateButtonDto();
    buttonOptions.width = "400px";
    buttonOptions.height = "150px";
    buttonOptions.label = "START EXPERIENCE";
    buttonOptions.color = "#ffffff";
    buttonOptions.background = "#00000000";
    const button = gui.button.createSimpleButton(buttonOptions);
    button.paddingTopInPixels = 20;
    button.paddingBottomInPixels = 20;

    button.onPointerClickObservable.add(() => {
        start();
    })

    const imageOpt = new Bit.Inputs.BabylonGui.CreateImageDto();
    imageOpt.url = "assets/logo-gold-small.png";
    const image = gui.image.createImage(imageOpt);
    const padding = 30;
    image.paddingTopInPixels = padding;
    image.paddingBottomInPixels = padding;
    image.paddingLeftInPixels = padding;
    image.paddingRightInPixels = padding;

    image.onPointerClickObservable.add(() => {
        window.open("https://bitbybit.dev", '_blank').focus();
    });
    const txtBlockOptions1 = new Bit.Inputs.BabylonGui.CreateTextBlockDto();
    txtBlockOptions1.text = "Powered By";
    const txtBlock1 = gui.textBlock.createTextBlock(txtBlockOptions1);
    txtBlock1.height = "40px";
    txtBlock1.color = "#ffffff";
    txtBlock1.paddingBottomInPixels = 10;
    const txtBlockOptions = new Bit.Inputs.BabylonGui.CreateTextBlockDto();
    txtBlockOptions.text = "BITBYBIT.DEV";
    const txtBlock = gui.textBlock.createTextBlock(txtBlockOptions);
    txtBlock.height = "60px";
    txtBlock.color = "#ffffff";
    txtBlock.paddingBottomInPixels = 30;

    stackPanel2.addControl(button);
    stackPanel2.addControl(image);
    stackPanel2.addControl(txtBlock1);
    stackPanel2.addControl(txtBlock);
}
