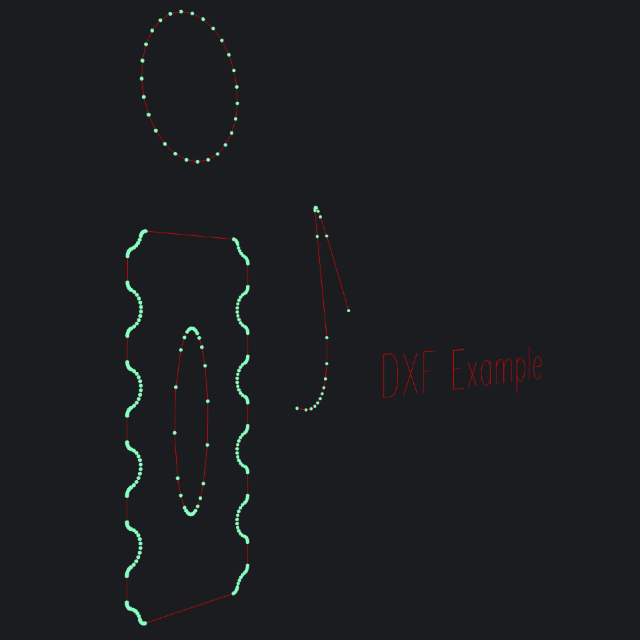

Script: Rete example of OCCT wires to DXF
- Type
rete- Project
- OCCT Wires to JSCAD to DXF
- Author
- bitbybit
- Date Created
- Feb 26, 2024, 3:08:40 PM
- Last Edit Date
- Feb 26, 2024, 9:56:47 PM
Project Information
In the latest release we introduce the methods to transform wires of the shape into collections of points based on OCCT tangential deflection. This enables to rebuild 2D JSCAD paths and save them to DXF file format together with other 2D entities of JSCAD such as path text.
Script Code
{
"id": "rete-v2-json",
"nodes": {
"11ee45126f6e7fc3": {
"id": "11ee45126f6e7fc3",
"name": "bitbybit.occt.shapes.face.createRectangleFace",
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
},
"width": 5,
"length": 10
},
"inputs": {},
"position": [
1175.8928708194205,
-424.32562158610745
]
},
"274eea4e0bbd4d7f": {
"id": "274eea4e0bbd4d7f",
"name": "bitbybit.occt.shapes.face.createCircleFace",
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
},
"radius": 0.5
},
"inputs": {
"center": {
"connections": [
{
"node": "1bea1ebcf5c953f2",
"output": "result",
"data": {}
}
]
}
},
"position": [
3742.136959110282,
242.8004289477258
]
},
"01c7ed0964301ef6": {
"id": "01c7ed0964301ef6",
"name": "bitbybit.occt.shapes.wire.getWire",
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
},
"index": 0
},
"inputs": {
"shape": {
"connections": [
{
"node": "11ee45126f6e7fc3",
"output": "result",
"data": {}
}
]
}
},
"position": [
1695.4582038481897,
212.24246503918795
]
},
"45e221a37df75f77": {
"id": "45e221a37df75f77",
"name": "bitbybit.occt.shapes.edge.getEdge",
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
},
"index": 4
},
"inputs": {
"shape": {
"connections": [
{
"node": "01c7ed0964301ef6",
"output": "result",
"data": {}
}
]
}
},
"position": [
2093.217560320334,
426.00820716698286
]
},
"bd1bc0996b4fe29a": {
"id": "bd1bc0996b4fe29a",
"name": "bitbybit.occt.shapes.edge.getEdge",
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
},
"index": 2
},
"inputs": {
"shape": {
"connections": [
{
"node": "01c7ed0964301ef6",
"output": "result",
"data": {}
}
]
}
},
"position": [
2102.921471489834,
125.43557993364698
]
},
"a4dde6cd7baefb9d": {
"id": "a4dde6cd7baefb9d",
"name": "bitbybit.occt.shapes.edge.divideEdgeByParamsToPoints",
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
},
"nrOfDivisions": 5,
"removeStartPoint": false,
"removeEndPoint": false
},
"inputs": {
"shape": {
"connections": [
{
"node": "bd1bc0996b4fe29a",
"output": "result",
"data": {}
}
]
}
},
"position": [
2484.6483584634016,
-66.81803297007843
]
},
"06ce2ce76473be38": {
"id": "06ce2ce76473be38",
"name": "bitbybit.occt.shapes.edge.divideEdgeByParamsToPoints",
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
},
"nrOfDivisions": 5,
"removeStartPoint": false,
"removeEndPoint": false
},
"inputs": {
"shape": {
"connections": [
{
"node": "45e221a37df75f77",
"output": "result",
"data": {}
}
]
}
},
"position": [
2487.780520481191,
372.32671695476915
]
},
"baccc13fbd7bc09a": {
"id": "baccc13fbd7bc09a",
"name": "bitbybit.lists.createList",
"data": {},
"inputs": {
"listElements": {
"connections": [
{
"node": "a4dde6cd7baefb9d",
"output": "result",
"data": {}
},
{
"node": "06ce2ce76473be38",
"output": "result",
"data": {}
}
]
}
},
"position": [
2995.6735297393984,
190.39506855509407
]
},
"1bea1ebcf5c953f2": {
"id": "1bea1ebcf5c953f2",
"name": "bitbybit.lists.flatten",
"data": {
"nrLevels": 2
},
"inputs": {
"list": {
"connections": [
{
"node": "baccc13fbd7bc09a",
"output": "list",
"data": {}
}
]
}
},
"position": [
3357.0574274715045,
310.695319180986
]
},
"f68cd017cb5d4c99": {
"id": "f68cd017cb5d4c99",
"name": "bitbybit.occt.booleans.difference",
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
},
"keepEdges": false
},
"inputs": {
"shape": {
"connections": [
{
"node": "11ee45126f6e7fc3",
"output": "result",
"data": {}
}
]
},
"shapes": {
"connections": [
{
"node": "4485f793087ed679",
"output": "list",
"data": {}
}
]
}
},
"position": [
5019.485490427133,
85.81685962366686
]
},
"3fb9c5d1165b4ab1": {
"id": "3fb9c5d1165b4ab1",
"name": "bitbybit.lists.createList",
"data": {},
"inputs": {
"listElements": {
"connections": [
{
"node": "274eea4e0bbd4d7f",
"output": "result",
"data": {}
},
{
"node": "984dcd8b2d2f21ea",
"output": "result",
"data": {}
}
]
}
},
"position": [
4134.166585112095,
548.3381280236001
]
},
"984dcd8b2d2f21ea": {
"id": "984dcd8b2d2f21ea",
"name": "bitbybit.occt.shapes.face.createEllipseFace",
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
},
"radiusMinor": 0.7,
"radiusMajor": 2.5
},
"inputs": {},
"position": [
3759.606492042091,
735.9562035476938
]
},
"db647f4209e6b917": {
"id": "db647f4209e6b917",
"name": "bitbybit.lists.flatten",
"data": {
"nrLevels": 1
},
"inputs": {
"list": {
"connections": [
{
"node": "3fb9c5d1165b4ab1",
"output": "list",
"data": {}
}
]
}
},
"position": [
4408.03887703275,
537.2369397447015
]
},
"4485f793087ed679": {
"id": "4485f793087ed679",
"name": "bitbybit.lists.createList",
"data": {},
"inputs": {
"listElements": {
"connections": [
{
"node": "db647f4209e6b917",
"output": "result",
"data": {}
}
]
}
},
"position": [
4702.255610248676,
533.2886464048435
]
},
"ffebc1511575e5c3": {
"id": "ffebc1511575e5c3",
"name": "bitbybit.occt.shapes.face.createCircleFace",
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
},
"radius": 2
},
"inputs": {
"center": {
"connections": [
{
"node": "c24f31ebb31cf193",
"output": "result",
"data": {}
}
]
}
},
"position": [
5685.384205661066,
532.6082168179094
]
},
"c24f31ebb31cf193": {
"id": "c24f31ebb31cf193",
"name": "bitbybit.vector.vectorXYZ",
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
},
"x": 0,
"y": 0,
"z": 9
},
"inputs": {},
"position": [
5188.782964076654,
629.8718890325273
]
},
"9d09a43e2530314c": {
"id": "9d09a43e2530314c",
"name": "bitbybit.occt.shapes.compound.makeCompound",
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
}
},
"inputs": {
"shapes": {
"connections": [
{
"node": "4d18b5a0c284c496",
"output": "list",
"data": {}
}
]
}
},
"position": [
6578.536938303309,
73.59693483251874
]
},
"4d18b5a0c284c496": {
"id": "4d18b5a0c284c496",
"name": "bitbybit.lists.createList",
"data": {},
"inputs": {
"listElements": {
"connections": [
{
"node": "9a1743eec067091f",
"output": "result",
"data": {}
},
{
"node": "ba608cae323b55a8",
"output": "result",
"data": {}
},
{
"node": "ffebc1511575e5c3",
"output": "result",
"data": {}
},
{
"node": "71faca9387875de3",
"output": "result",
"data": {}
}
]
}
},
"position": [
6077.7810227138425,
242.56692667549862
]
},
"154ffc435175bd24": {
"id": "154ffc435175bd24",
"name": "bitbybit.occt.shapes.wire.wiresToPoints",
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
},
"angularDeflection": 0.1,
"curvatureDeflection": 0.1,
"minimumOfPoints": 2,
"uTolerance": 1e-9,
"minimumLength": 1e-7
},
"inputs": {
"shape": {
"connections": [
{
"node": "4d1bf6466004e70d",
"output": "result",
"data": {}
}
]
},
"angularDeflection": {
"connections": [
{
"node": "b579a87dafb4e773",
"output": "result",
"data": {}
}
]
}
},
"position": [
7441.0966292564335,
-37.03370832165268
]
},
"4d1bf6466004e70d": {
"id": "4d1bf6466004e70d",
"name": "bitbybit.occt.transforms.rotate",
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
},
"angle": 90
},
"inputs": {
"shape": {
"connections": [
{
"node": "9d09a43e2530314c",
"output": "result",
"data": {}
}
]
},
"axis": {
"connections": [
{
"node": "8eea25c4767132da",
"output": "result",
"data": {}
}
]
}
},
"position": [
7051.567743760782,
168.3436369285719
]
},
"8eea25c4767132da": {
"id": "8eea25c4767132da",
"name": "bitbybit.vector.vectorXYZ",
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
},
"x": -1,
"y": 0,
"z": 0
},
"inputs": {},
"position": [
6560.533860029217,
438.171381658161
]
},
"66f3f42c4d1021df": {
"id": "66f3f42c4d1021df",
"name": "bitbybit.jscad.path.createPathsFromPoints",
"data": {
"genericNodeData": {
"hide": false,
"oneOnOne": false,
"flatten": 0
}
},
"inputs": {
"pointsLists": {
"connections": [
{
"node": "154ffc435175bd24",
"output": "result",
"data": {}
}
]
}
},
"position": [
7908.2835752865185,
-13.894409666602067
]
},
"4fee1557643d2038": {
"id": "4fee1557643d2038",
"name": "bitbybit.draw.drawAnyAsync",
"data": {
"genericNodeData": {
"hide": false,
"oneOnOne": false,
"flatten": 0
}
},
"inputs": {
"options": {
"connections": [
{
"node": "8dddbb6a6e86bb94",
"output": "result",
"data": {}
}
]
},
"entity": {
"connections": [
{
"node": "edb7d521d6f9bf0a",
"output": "result",
"data": {}
}
]
}
},
"position": [
8557.05554608812,
843.062676252615
]
},
"8dddbb6a6e86bb94": {
"id": "8dddbb6a6e86bb94",
"name": "bitbybit.draw.optionsSimple",
"data": {
"genericNodeData": {
"hide": false,
"oneOnOne": false,
"flatten": 0
},
"size": 0.1,
"opacity": 1,
"updatable": false,
"hidden": false
},
"inputs": {
"colours": {
"connections": [
{
"node": "9d2f8b4887ce62ff",
"output": "result",
"data": {}
}
]
}
},
"position": [
7358.087210409164,
1023.8625364463674
]
},
"9d2f8b4887ce62ff": {
"id": "9d2f8b4887ce62ff",
"name": "bitbybit.color.hexColor",
"data": {
"genericNodeData": {
"hide": false,
"oneOnOne": false,
"flatten": 0
},
"color": "#8affc2"
},
"inputs": {},
"position": [
7029.076052016437,
1028.237013456413
]
},
"9a1743eec067091f": {
"id": "9a1743eec067091f",
"name": "bitbybit.occt.fillets.fillet2d",
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
},
"radius": 0.2
},
"inputs": {
"shape": {
"connections": [
{
"node": "de98423c64d13392",
"output": "result",
"data": {}
}
]
}
},
"position": [
5743.469065360105,
-315.1871508819934
]
},
"de98423c64d13392": {
"id": "de98423c64d13392",
"name": "bitbybit.occt.shapes.wire.getWire",
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
},
"index": 0
},
"inputs": {
"shape": {
"connections": [
{
"node": "f68cd017cb5d4c99",
"output": "result",
"data": {}
}
]
}
},
"position": [
5393.311184320025,
-173.4934963389147
]
},
"f4563bbf45d52e59": {
"id": "f4563bbf45d52e59",
"name": "bitbybit.jscad.downloadGeometryDxf",
"data": {
"genericNodeData": {
"hide": false,
"oneOnOne": false,
"flatten": 0
},
"fileName": "cool"
},
"inputs": {
"geometry": {
"connections": [
{
"node": "552ca2e323994123",
"output": "list",
"data": {}
}
]
},
"fileName": {
"connections": [
{
"node": "6c09973590298afc",
"output": "result",
"data": {}
}
]
}
},
"position": [
9375.573690651712,
-60.51119992602236
]
},
"ba608cae323b55a8": {
"id": "ba608cae323b55a8",
"name": "bitbybit.occt.shapes.wire.getWire",
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
},
"index": 1
},
"inputs": {
"shape": {
"connections": [
{
"node": "f68cd017cb5d4c99",
"output": "result",
"data": {}
}
]
}
},
"position": [
5618.112529088196,
161.76371360821906
]
},
"edb7d521d6f9bf0a": {
"id": "edb7d521d6f9bf0a",
"name": "bitbybit.lists.flatten",
"data": {
"nrLevels": 1
},
"inputs": {
"list": {
"connections": [
{
"node": "154ffc435175bd24",
"output": "result",
"data": {}
}
]
}
},
"position": [
8090.817968928495,
592.7988419537703
]
},
"71faca9387875de3": {
"id": "71faca9387875de3",
"name": "bitbybit.occt.shapes.wire.interpolatePoints",
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
},
"periodic": false,
"tolerance": 1e-7
},
"inputs": {
"points": {
"connections": [
{
"node": "2732b40570e77bd1",
"output": "list",
"data": {}
}
]
}
},
"position": [
5898.375780300618,
952.6377936538671
]
},
"2edf87beb2d30750": {
"id": "2edf87beb2d30750",
"name": "bitbybit.point.pointXYZ",
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
},
"x": 5,
"y": 0,
"z": 0
},
"inputs": {},
"position": [
5197.548902318496,
985.4349913918284
]
},
"2732b40570e77bd1": {
"id": "2732b40570e77bd1",
"name": "bitbybit.lists.createList",
"data": {},
"inputs": {
"listElements": {
"connections": [
{
"node": "2edf87beb2d30750",
"output": "result",
"data": {}
},
{
"node": "0d11ed2da9962a94",
"output": "result",
"data": {}
},
{
"node": "7e0a9f83dab7eb31",
"output": "result",
"data": {}
},
{
"node": "12ee8f11426f7f75",
"output": "result",
"data": {}
}
]
}
},
"position": [
5558.2240565488255,
1458.8668708231792
]
},
"0d11ed2da9962a94": {
"id": "0d11ed2da9962a94",
"name": "bitbybit.point.pointXYZ",
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
},
"x": 6,
"y": 0,
"z": 0
},
"inputs": {},
"position": [
5209.566743633726,
1301.9573585198982
]
},
"7e0a9f83dab7eb31": {
"id": "7e0a9f83dab7eb31",
"name": "bitbybit.point.pointXYZ",
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
},
"x": 6,
"y": 0,
"z": 6
},
"inputs": {},
"position": [
5209.998969840203,
1607.7903835936077
]
},
"12ee8f11426f7f75": {
"id": "12ee8f11426f7f75",
"name": "bitbybit.point.pointXYZ",
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
},
"x": 8,
"y": 0,
"z": 3
},
"inputs": {},
"position": [
5196.341659627321,
1914.9738362636958
]
},
"bf58dc10ace5ed64": {
"id": "bf58dc10ace5ed64",
"name": "bitbybit.jscad.text.createVectorText",
"data": {
"genericNodeData": {
"hide": false,
"oneOnOne": false,
"flatten": 0
},
"text": "DXF Example",
"segments": 24,
"xOffset": 10,
"yOffset": 0,
"height": 1,
"lineSpacing": 1.4,
"letterSpacing": 1,
"align": "center",
"extrudeOffset": 0
},
"inputs": {},
"position": [
6999.557508826982,
-741.9285949049353
]
},
"d662ef139f020bd0": {
"id": "d662ef139f020bd0",
"name": "bitbybit.jscad.path.createPathsFromPoints",
"data": {
"genericNodeData": {
"hide": false,
"oneOnOne": false,
"flatten": 0
}
},
"inputs": {
"pointsLists": {
"connections": [
{
"node": "bf58dc10ace5ed64",
"output": "result",
"data": {}
}
]
}
},
"position": [
7473.408653312119,
-700.7894249342274
]
},
"b34b864566e82f17": {
"id": "b34b864566e82f17",
"name": "bitbybit.lists.createList",
"data": {},
"inputs": {
"listElements": {
"connections": [
{
"node": "d662ef139f020bd0",
"output": "result",
"data": {}
},
{
"node": "66f3f42c4d1021df",
"output": "result",
"data": {}
}
]
}
},
"position": [
8379.880515032015,
-28.577501270315338
]
},
"1dabbda6d4f9240b": {
"id": "1dabbda6d4f9240b",
"name": "bitbybit.lists.flatten",
"data": {
"nrLevels": 1
},
"inputs": {
"list": {
"connections": [
{
"node": "b34b864566e82f17",
"output": "list",
"data": {}
}
]
}
},
"position": [
8707.516341832123,
-67.24421165933877
]
},
"552ca2e323994123": {
"id": "552ca2e323994123",
"name": "bitbybit.lists.createList",
"data": {},
"inputs": {
"listElements": {
"connections": [
{
"node": "1dabbda6d4f9240b",
"output": "result",
"data": {}
}
]
}
},
"position": [
9062.19049096311,
-54.51580509061711
]
},
"6c09973590298afc": {
"id": "6c09973590298afc",
"name": "bitbybit.logic.valueGate",
"data": {
"genericNodeData": {
"hide": false,
"oneOnOne": false,
"flatten": 0
},
"boolean": false
},
"inputs": {
"value": {
"connections": [
{
"node": "f5db1e13a9e45a0e",
"output": "result",
"data": {}
}
]
},
"boolean": {
"connections": [
{
"node": "12b7f4d0dd1b1e0d",
"output": "result",
"data": {}
}
]
}
},
"position": [
8976.171489394681,
131.8051595163385
]
},
"f5db1e13a9e45a0e": {
"id": "f5db1e13a9e45a0e",
"name": "bitbybit.text.create",
"data": {
"genericNodeData": {
"hide": false,
"oneOnOne": false,
"flatten": 0
},
"text": "bitbybit-dxf"
},
"inputs": {},
"position": [
8615.648501171176,
183.86018453001358
]
},
"12b7f4d0dd1b1e0d": {
"id": "12b7f4d0dd1b1e0d",
"name": "bitbybit.logic.boolean",
"data": {
"genericNodeData": {
"hide": false,
"oneOnOne": false,
"flatten": 0
},
"boolean": false
},
"inputs": {},
"position": [
8577.28752964681,
404.600330251528
]
},
"b579a87dafb4e773": {
"id": "b579a87dafb4e773",
"name": "bitbybit.math.numberSlider",
"data": {
"options": {
"min": 0.05,
"max": 1,
"step": 0.01,
"width": 350
},
"number": 0.33
},
"inputs": {},
"position": [
470.87054038199483,
-933.6477291753729
]
}
}
} Plans & Pricing
Choose Your Plan
Editor plans for 3D development, API keys for server-side CAD algorithms
Editor Plans
Cloud storage, private projects & 3D algorithms for Bitbybit editors
API Key Plans
Run CAD algorithms on managed cloud servers from your own backend applications
B2B
ENTERPRISE
Custom pricingCustom software development, dedicated servers & CAD automation at scale.
CAD Automation & Software
- Custom software development
- Cloud CAD automation pipelines
- 3D configurators (STEP & GLTF)
- Batch export jobs
- Custom algorithms & deployment
Infrastructure & Support
- Custom compute allocation
- Dedicated / VPS server tenants
- Long-running computation jobs
- Custom upload limits & overage
- SLA & premium support
