Alien Nebula Cruiser GLTF Asset

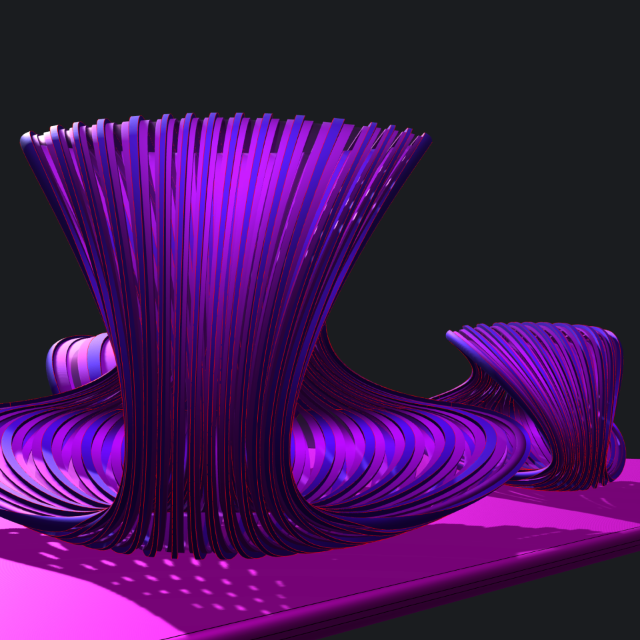

Alien Nebula Cruiser GLTF Asset picture
Author
matas
Created
Nov 9, 2023, 10:42:13 AM
Last edit
Apr 29, 2024, 8:27:11 AM

Edit scriptPreview

Project

Alien Nebula Cruiser

This is a conceptual design of advanced spacecraft that shows off some of the new algorithms of the platform, such as splitting the wire into multiple pieces, selecting geometry by using boolean pattern matching, and adopting advanced lofting techniques.

View full project
const start = async () => {

    const files = [
        "alien-nebula-cruiser-1.glb",
        "alien-nebula-cruiser-2.glb",
        "alien-nebula-cruiser-3.glb"
    ]

    const gltfFiles = await Promise.all(files.map(fileName => bitbybit.asset.getFile({ fileName })));
    const meshes = await Promise.all(gltfFiles.map(assetFile => bitbybit.babylon.io.loadAssetIntoScene({ assetFile, hidden: false })));

    const triangle = await bitbybit.occt.shapes.wire.createNGonWire({
        nrCorners: 3,
        center: [0, 0, 0],
        direction: [0, 1, 0],
        radius: 14,
    });

    const corners = await bitbybit.occt.shapes.edge.getCornerPointsOfEdgesForShape({ shape: triangle });

    corners.forEach((corner, index) => {
        if (meshes[index]) {
            meshes[index].position = new BABYLON.Vector3(corner[0], corner[1], corner[2]);
        }
    })

    const triangleBase = await bitbybit.occt.shapes.wire.createNGonWire({
        nrCorners: 3,
        center: [0, 0, 0],
        direction: [0, 1, 0],
        radius: 30,
    });

    const triangleOffset = await bitbybit.occt.operations.offset({ shape: triangleBase, distance: 5, tolerance: 0.1 });
    const triangleFace = await bitbybit.occt.shapes.face.createFaceFromWire({ shape: triangleOffset, planar: true });
    const triangleExtrusion = await bitbybit.occt.operations.extrude({ shape: triangleFace, direction: [0, 1, 0] });
    const triangleFillet = await bitbybit.occt.fillets.filletEdges({ shape: triangleExtrusion, radius: 0.4 });

    const options = new Bit.Inputs.Draw.DrawOcctShapeOptions();
    options.faceColour = "#ff00ff";
    options.edgeColour = "#000000";
    const triangleMesh = await bitbybit.draw.drawAnyAsync({
        entity: triangleFillet,
        options
    });

    const parentMesh = new BABYLON.Mesh("parent");

    meshes.forEach(m => m.parent = parentMesh);

    triangleMesh.position = new BABYLON.Vector3(0, -6, 0);
    triangleMesh.parent = parentMesh;

    const rotationVec = new BABYLON.Vector3(0, 1, 0);

    const optionsLight = new Bit.Inputs.BabylonScene.DirectionalLightDto();
    optionsLight.direction = [-100, -100, -100];
    optionsLight.intensity = 4;
    optionsLight.shadowGeneratorMapSize = 2056;

    bitbybit.babylon.scene.drawDirectionalLight(optionsLight);

    bitbybit.time.registerRenderFunction(() => {
        parentMesh.rotate(rotationVec, 0.0005);
        meshes.forEach(mesh => {
            mesh.rotate(rotationVec, -0.002);
        })
    });


}

start();
