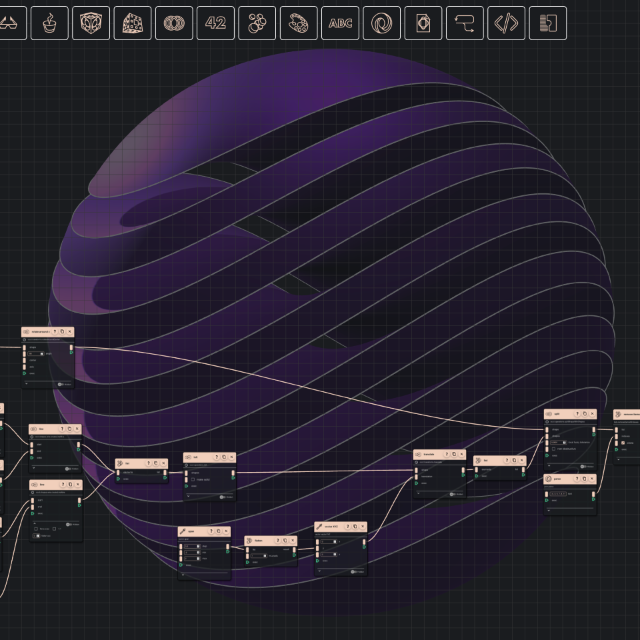

Script: Split OCCT shape
- Type
rete- Project
- Split shape with shapes
- Author
- bitbybit
- Date Created
- Feb 5, 2025, 2:45:02 PM
- Last Edit Date
- Feb 27, 2025, 8:36:03 AM
Project Information
New OCCT feature implemented that allows to split shape with multiple shapes in destructive and non-destructive modes via BOPAlgo_Builder functionality
Script Code
{
"id": "rete-v2-json",
"nodes": {
"1c4209753eca0012": {
"id": "1c4209753eca0012",
"name": "bitbybit.occt.shapes.solid.createSphere",
"customName": "sphere",
"async": true,
"drawable": true,
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0,
"forceExecution": false
},
"radius": 3,
"center": [
0,
0,
0
]
},
"inputs": {},
"position": [
-1266.459580697446,
350.7163608705831
]
},
"e917b3d1dd1e65e6": {
"id": "e917b3d1dd1e65e6",
"name": "bitbybit.occt.shapes.wire.createLineWire",
"customName": "line",
"async": true,
"drawable": true,
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0,
"forceExecution": false
},
"start": [
0,
0,
0
],
"end": [
0,
1,
0
]
},
"inputs": {
"start": {
"connections": [
{
"node": "679e1dede9683c33",
"output": "result",
"data": {}
}
]
},
"end": {
"connections": [
{
"node": "e8ac64f6f245d901",
"output": "result",
"data": {}
}
]
}
},
"position": [
-747.3890380859375,
937.9850769042969
]
},
"679e1dede9683c33": {
"id": "679e1dede9683c33",
"name": "bitbybit.vector.vectorXYZ",
"customName": "vector XYZ",
"async": false,
"drawable": true,
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0,
"forceExecution": false
},
"x": 5,
"y": -1,
"z": -5
},
"inputs": {
"y": {
"connections": [
{
"node": "0e52b942f7dfdf13",
"output": "result",
"data": {}
}
]
}
},
"position": [
-1216.3265380859375,
811.5827331542969
]
},
"e8ac64f6f245d901": {
"id": "e8ac64f6f245d901",
"name": "bitbybit.vector.vectorXYZ",
"customName": "vector XYZ",
"async": false,
"drawable": true,
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0,
"forceExecution": false
},
"x": -5,
"y": 1,
"z": -5
},
"inputs": {
"y": {
"connections": [
{
"node": "9ccd2bc59e35c9aa",
"output": "result",
"data": {}
}
]
}
},
"position": [
-1218.1273193359375,
1154.4889831542969
]
},
"7662db34ec043e8a": {
"id": "7662db34ec043e8a",
"name": "bitbybit.occt.shapes.wire.createLineWire",
"customName": "line",
"async": true,
"drawable": true,
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0,
"forceExecution": false
},
"start": [
0,
0,
0
],
"end": [
0,
1,
0
]
},
"inputs": {
"start": {
"connections": [
{
"node": "a5265b6fd806a213",
"output": "result",
"data": {}
}
]
},
"end": {
"connections": [
{
"node": "23a017ed639c95d2",
"output": "result",
"data": {}
}
]
}
},
"position": [
-742.3528213172974,
1274.1142461479508
]
},
"a5265b6fd806a213": {
"id": "a5265b6fd806a213",
"name": "bitbybit.vector.vectorXYZ",
"customName": "vector XYZ",
"async": false,
"drawable": true,
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0,
"forceExecution": false
},
"x": 5,
"y": 1,
"z": 5
},
"inputs": {
"y": {
"connections": [
{
"node": "9ccd2bc59e35c9aa",
"output": "result",
"data": {}
}
]
}
},
"position": [
-1230.0897633440738,
1500.750618794212
]
},
"23a017ed639c95d2": {
"id": "23a017ed639c95d2",
"name": "bitbybit.vector.vectorXYZ",
"customName": "vector XYZ",
"async": false,
"drawable": true,
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0,
"forceExecution": false
},
"x": -5,
"y": -1,
"z": 5
},
"inputs": {
"y": {
"connections": [
{
"node": "0e52b942f7dfdf13",
"output": "result",
"data": {}
}
]
}
},
"position": [
-1253.5708890894923,
1876.1745529526352
]
},
"43cf5280d801b4f0": {
"id": "43cf5280d801b4f0",
"name": "bitbybit.occt.operations.loft",
"customName": "loft",
"async": true,
"drawable": true,
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0,
"forceExecution": false
},
"makeSolid": false
},
"inputs": {
"shapes": {
"connections": [
{
"node": "7e4f55a1d36fc90e",
"output": "list",
"data": {}
}
]
}
},
"position": [
186.4826386175671,
1108.7425514094543
]
},
"7e4f55a1d36fc90e": {
"id": "7e4f55a1d36fc90e",
"name": "bitbybit.lists.createList",
"customName": "list",
"data": {},
"inputs": {
"listElements": {
"connections": [
{
"node": "e917b3d1dd1e65e6",
"output": "result",
"data": {}
},
{
"node": "7662db34ec043e8a",
"output": "result",
"data": {}
}
]
}
},
"position": [
-225.02844804634563,
1145.944434473797
]
},
"d760a85fa3e3d7fc": {
"id": "d760a85fa3e3d7fc",
"name": "bitbybit.vector.span",
"customName": "span",
"async": false,
"drawable": false,
"data": {
"genericNodeData": {
"hide": false,
"oneOnOne": false,
"flatten": 0,
"forceExecution": false
},
"step": 0.3,
"min": -2,
"max": 2
},
"inputs": {},
"position": [
153.7042929270101,
1556.0102744088663
]
},
"d8ba80b7936706db": {
"id": "d8ba80b7936706db",
"name": "bitbybit.occt.transforms.translate",
"customName": "translate",
"async": true,
"drawable": true,
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0,
"forceExecution": false
},
"translation": [
0,
0,
0
]
},
"inputs": {
"translation": {
"connections": [
{
"node": "9402dbdc19b393bc",
"output": "result",
"data": {}
}
]
},
"shape": {
"connections": [
{
"node": "43cf5280d801b4f0",
"output": "result",
"data": {}
}
]
}
},
"position": [
1576.4019535363573,
1091.5693250579864
]
},
"9402dbdc19b393bc": {
"id": "9402dbdc19b393bc",
"name": "bitbybit.vector.vectorXYZ",
"customName": "vector XYZ",
"async": false,
"drawable": true,
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0,
"forceExecution": false
},
"x": 0,
"y": 0,
"z": 0
},
"inputs": {
"y": {
"connections": [
{
"node": "258b289cd7ed78e5",
"output": "result",
"data": {}
}
]
}
},
"position": [
978.6334654944926,
1527.8738359157526
]
},
"258b289cd7ed78e5": {
"id": "258b289cd7ed78e5",
"name": "bitbybit.lists.flatten",
"customName": "flatten",
"data": {
"nrLevels": 1
},
"inputs": {
"list": {
"connections": [
{
"node": "d760a85fa3e3d7fc",
"output": "result",
"data": {}
}
]
}
},
"position": [
555.9493476790446,
1612.5868802190016
]
},
"0e52b942f7dfdf13": {
"id": "0e52b942f7dfdf13",
"name": "bitbybit.math.negate",
"customName": "negate",
"async": false,
"drawable": false,
"data": {
"genericNodeData": {
"hide": false,
"oneOnOne": false,
"flatten": 0,
"forceExecution": false
},
"number": 1
},
"inputs": {
"number": {
"connections": [
{
"node": "9ccd2bc59e35c9aa",
"output": "result",
"data": {}
}
]
}
},
"position": [
-1836.5336358105108,
1476.2838394735134
]
},
"d3bc9462cff3fca7": {
"id": "d3bc9462cff3fca7",
"name": "bitbybit.math.numberSlider",
"customName": "number slider",
"data": {
"options": {
"min": 0,
"max": 10,
"step": 0.1,
"width": 350,
"updateOnDrag": false
},
"number": 10
},
"inputs": {},
"position": [
-2743.4255274364946,
1211.4616943158348
]
},
"f46811c63b911c8e": {
"id": "f46811c63b911c8e",
"name": "bitbybit.occt.operations.splitShapeWithShapes",
"customName": "split",
"async": true,
"drawable": true,
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0,
"forceExecution": false
},
"localFuzzyTolerance": 0.0001,
"nonDestructive": false
},
"inputs": {
"shapes": {
"connections": [
{
"node": "b281a1800918b25f",
"output": "list",
"data": {}
}
]
},
"shape": {
"connections": [
{
"node": "bf904a3d079b03e4",
"output": "result",
"data": {}
}
]
}
},
"position": [
2365.7712269182575,
847.0864420763828
]
},
"b281a1800918b25f": {
"id": "b281a1800918b25f",
"name": "bitbybit.lists.createList",
"customName": "list",
"data": {},
"inputs": {
"listElements": {
"connections": [
{
"node": "d8ba80b7936706db",
"output": "result",
"data": {}
}
]
}
},
"position": [
1939.8545793039325,
1128.4728441403677
]
},
"1bd08cb2d46a3bf5": {
"id": "1bd08cb2d46a3bf5",
"name": "bitbybit.draw.drawAnyAsync",
"customName": "draw async",
"async": true,
"drawable": true,
"data": {
"genericNodeData": {
"hide": false,
"oneOnOne": false,
"flatten": 0,
"forceExecution": false
}
},
"inputs": {
"entity": {
"connections": [
{
"node": "a6cb6b3b43a8cd8a",
"output": "result",
"data": {}
}
]
},
"options": {
"connections": [
{
"node": "c11be3bd26bc5c15",
"output": "result",
"data": {}
}
]
}
},
"position": [
3712.65535885974,
928.658522677609
]
},
"bf904a3d079b03e4": {
"id": "bf904a3d079b03e4",
"name": "bitbybit.occt.transforms.rotateAroundCenter",
"customName": "rotate around center",
"async": true,
"drawable": true,
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0,
"forceExecution": false
},
"angle": -90,
"center": [
0,
0,
0
],
"axis": [
0,
0,
1
]
},
"inputs": {
"shape": {
"connections": [
{
"node": "1c4209753eca0012",
"output": "result",
"data": {}
}
]
}
},
"position": [
-791.747265882226,
350.98796080748514
]
},
"3f5ad610363163d1": {
"id": "3f5ad610363163d1",
"name": "bitbybit.lists.removeItemsAtIndexes",
"customName": "remove items",
"async": false,
"drawable": false,
"data": {
"genericNodeData": {
"hide": false,
"oneOnOne": false,
"flatten": 0,
"forceExecution": false
},
"clone": true
},
"inputs": {
"list": {
"connections": [
{
"node": "f46811c63b911c8e",
"output": "result",
"data": {}
}
]
},
"indexes": {
"connections": [
{
"node": "1e684d82142ee68f",
"output": "result",
"data": {}
}
]
}
},
"position": [
2785.370063639792,
849.8591790008614
]
},
"1e684d82142ee68f": {
"id": "1e684d82142ee68f",
"name": "bitbybit.json.parse",
"customName": "parse",
"async": false,
"drawable": false,
"data": {
"genericNodeData": {
"hide": false,
"oneOnOne": false,
"flatten": 0,
"forceExecution": false
},
"text": "[ 0, 3, 4, 7, 8, 11, 12]"
},
"inputs": {},
"position": [
2363.52600323013,
1239.332537469159
]
},
"a6cb6b3b43a8cd8a": {
"id": "a6cb6b3b43a8cd8a",
"name": "bitbybit.occt.shapes.compound.makeCompound",
"customName": "make",
"async": true,
"drawable": true,
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0,
"forceExecution": false
}
},
"inputs": {
"shapes": {
"connections": [
{
"node": "3f5ad610363163d1",
"output": "result",
"data": {}
}
]
}
},
"position": [
3162.0854441311467,
842.4526998293636
]
},
"c11be3bd26bc5c15": {
"id": "c11be3bd26bc5c15",
"name": "bitbybit.draw.optionsOcctShape",
"customName": "occt shape",
"async": false,
"drawable": false,
"data": {
"genericNodeData": {
"hide": false,
"oneOnOne": false,
"flatten": 0,
"forceExecution": false
},
"faceOpacity": 1,
"edgeOpacity": 1,
"edgeColour": "#ffffff",
"faceColour": "#9900ff",
"vertexColour": "#ff00ff",
"edgeWidth": 2,
"vertexSize": 0.03,
"drawEdges": true,
"drawFaces": true,
"drawVertices": false,
"precision": 0.005,
"drawEdgeIndexes": false,
"edgeIndexHeight": 0.06,
"edgeIndexColour": "#ff00ff",
"drawFaceIndexes": false,
"faceIndexHeight": 0.06,
"faceIndexColour": "#0000ff"
},
"inputs": {},
"position": [
3173.5901786997433,
1139.0257546060086
]
},
"636776a57c090266": {
"id": "636776a57c090266",
"name": "bitbybit.runner.setRunnerResultValue",
"customName": "set runner result value",
"data": {
"property": "sphere"
},
"inputs": {
"value": {
"connections": [
{
"node": "1bd08cb2d46a3bf5",
"output": "result",
"data": {}
}
]
}
},
"position": [
4321.376202230087,
1039.004855400745
]
},
"a8debd02d3a57e07": {
"id": "a8debd02d3a57e07",
"name": "bitbybit.runner.getRunnerInputValue",
"customName": "get runner input value",
"data": {
"property": "bending"
},
"inputs": {},
"position": [
-2637.369909980111,
986.5382592310434
]
},
"9ccd2bc59e35c9aa": {
"id": "9ccd2bc59e35c9aa",
"name": "bitbybit.logic.firstDefinedValueGate",
"customName": "first defined value gate",
"async": false,
"drawable": false,
"data": {
"genericNodeData": {
"hide": false,
"oneOnOne": false,
"flatten": 0,
"forceExecution": false
}
},
"inputs": {
"value2": {
"connections": [
{
"node": "d3bc9462cff3fca7",
"output": "result",
"data": {}
}
]
},
"value1": {
"connections": [
{
"node": "a8debd02d3a57e07",
"output": "result",
"data": {}
}
]
}
},
"position": [
-2139.3553608353095,
985.9618133277556
]
},
"a82c6fdac06d87c4": {
"id": "a82c6fdac06d87c4",
"name": "bitbybit.babylon.scene.drawDirectionalLight",
"customName": "directional light",
"async": false,
"drawable": false,
"data": {
"genericNodeData": {
"hide": false,
"oneOnOne": false,
"flatten": 0,
"forceExecution": false
},
"direction": [
-100,
-100,
-100
],
"intensity": 4,
"diffuse": "#ffffff",
"specular": "#ffffff",
"shadowGeneratorMapSize": 1024,
"enableShadows": true,
"shadowDarkness": 0,
"shadowUsePercentageCloserFiltering": true,
"shadowContactHardeningLightSizeUVRatio": 0.2,
"shadowBias": 0.0001,
"shadowNormalBias": 0.002,
"shadowMaxZ": 1000,
"shadowMinZ": 0
},
"inputs": {},
"position": [
-2669.8361671836237,
1861.445913244766
]
}
}
} Plans & Pricing
Choose Your Plan
Editor plans for 3D development, API keys for server-side CAD algorithms
Editor Plans
Cloud storage, private projects & 3D algorithms for Bitbybit editors
API Key Plans
Run CAD algorithms on managed cloud servers from your own backend applications
B2B
ENTERPRISE
Custom pricingCustom software development, dedicated servers & CAD automation at scale.
CAD Automation & Software
- Custom software development
- Cloud CAD automation pipelines
- 3D configurators (STEP & GLTF)
- Batch export jobs
- Custom algorithms & deployment
Infrastructure & Support
- Custom compute allocation
- Dedicated / VPS server tenants
- Long-running computation jobs
- Custom upload limits & overage
- SLA & premium support
