Script: Christmas Tree Pattern
- Type
rete- Project
- Christmas Tree Love
- Author
- matas
- Date Created
- Jan 1, 2024, 5:32:19 PM
- Last Edit Date
- Jan 6, 2024, 2:25:03 PM
Project Information

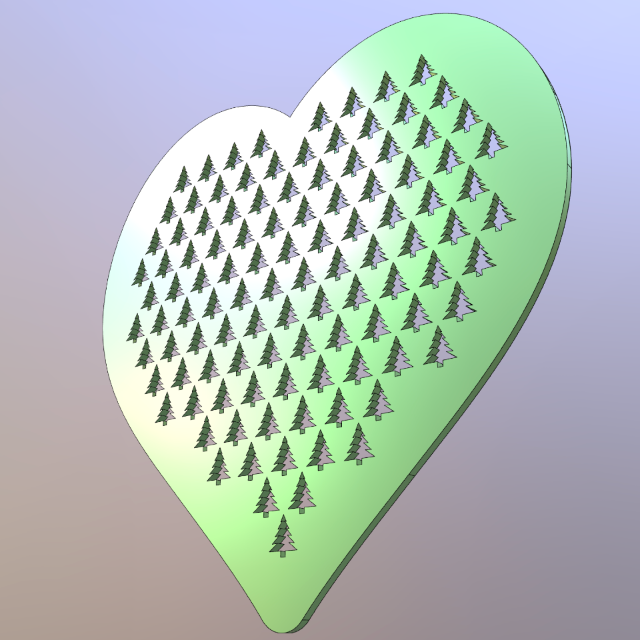

In this project we demonstrate several new features, such filtering of points on the face and creating faces by combining multiple wires. We first create hexagonal point grid, removing all the points that are not on the face of the heart. Remaining points are used as origins for Christmas tree wires. Then face is created and extruded.
Script Code
{
"id": "rete-v2-json",
"nodes": {
"98653435a3d9eadc": {
"id": "98653435a3d9eadc",
"name": "bitbybit.point.hexGrid",
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
},
"nrHexagonsY": 21,
"nrHexagonsX": 21,
"radiusHexagon": 0.5,
"orientOnCenter": true,
"pointsOnGround": false
},
"inputs": {},
"position": [
686.3769600353521,
-8.909702194727926
]
},
"8691dcc0bb8edaf6": {
"id": "8691dcc0bb8edaf6",
"name": "bitbybit.occt.shapes.wire.createHeartWire",
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
},
"rotation": 90,
"sizeApprox": 10
},
"inputs": {
"direction": {
"connections": [
{
"node": "17742aaa1466c1e4",
"output": "result",
"data": {}
}
]
}
},
"position": [
876.0046467129553,
725.2474462925619
]
},
"17742aaa1466c1e4": {
"id": "17742aaa1466c1e4",
"name": "bitbybit.vector.vectorXYZ",
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
},
"x": 0,
"y": 0,
"z": 1
},
"inputs": {},
"position": [
378.515625,
830.0625
]
},
"0bd1147e48711776": {
"id": "0bd1147e48711776",
"name": "bitbybit.occt.shapes.face.createFaceFromWire",
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
},
"planar": true
},
"inputs": {
"shape": {
"connections": [
{
"node": "8691dcc0bb8edaf6",
"output": "result",
"data": {}
}
]
}
},
"position": [
1130.9928389364384,
391.5582701828273
]
},
"c2b99605d624690e": {
"id": "c2b99605d624690e",
"name": "bitbybit.occt.shapes.face.filterFacePoints",
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
},
"tolerance": 0.01,
"useBndBox": false,
"gapTolerance": 0.05,
"keepIn": true,
"keepOn": true,
"keepOut": false,
"keepUnknown": false
},
"inputs": {
"points": {
"connections": [
{
"node": "98653435a3d9eadc",
"output": "result",
"data": {}
}
]
},
"shape": {
"connections": [
{
"node": "0bd1147e48711776",
"output": "result",
"data": {}
}
]
}
},
"position": [
1668.9486265562034,
216.2180174077213
]
},
"c535f2d20f562e33": {
"id": "c535f2d20f562e33",
"name": "bitbybit.occt.shapes.wire.createChristmasTreeWire",
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
},
"height": 6,
"innerDist": 1.5,
"outerDist": 3,
"nrSkirts": 5,
"trunkHeight": 1,
"trunkWidth": 1,
"half": false,
"rotation": 0
},
"inputs": {},
"position": [
2579.085998968027,
175.53445615454876
]
},
"87a3a86a3e53bdcc": {
"id": "87a3a86a3e53bdcc",
"name": "bitbybit.lists.flatten",
"data": {
"nrLevels": 1
},
"inputs": {
"list": {
"connections": [
{
"node": "c2b99605d624690e",
"output": "result",
"data": {}
}
]
}
},
"position": [
2190.3289482391233,
508.1203180737045
]
},
"cecd45866d60a8d8": {
"id": "cecd45866d60a8d8",
"name": "bitbybit.occt.transforms.scale",
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
},
"factor": 0.11
},
"inputs": {
"shape": {
"connections": [
{
"node": "c535f2d20f562e33",
"output": "result",
"data": {}
}
]
}
},
"position": [
3175.613721251641,
283.754618454874
]
},
"6ffe21d0bd48498f": {
"id": "6ffe21d0bd48498f",
"name": "bitbybit.occt.shapes.wire.reversedWire",
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
}
},
"inputs": {
"shape": {
"connections": [
{
"node": "cecd45866d60a8d8",
"output": "result",
"data": {}
}
]
}
},
"position": [
3497.118335787151,
372.8469052676732
]
},
"a5fe7b0648479063": {
"id": "a5fe7b0648479063",
"name": "bitbybit.occt.transforms.translate",
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
}
},
"inputs": {
"shape": {
"connections": [
{
"node": "6ffe21d0bd48498f",
"output": "result",
"data": {}
}
]
},
"translation": {
"connections": [
{
"node": "87a3a86a3e53bdcc",
"output": "result",
"data": {}
}
]
}
},
"position": [
3871.7292226584486,
538.1059935147547
]
},
"d9c0020cb0d8272c": {
"id": "d9c0020cb0d8272c",
"name": "bitbybit.occt.shapes.wire.createHeartWire",
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
},
"rotation": 90,
"sizeApprox": 13
},
"inputs": {
"direction": {
"connections": [
{
"node": "17742aaa1466c1e4",
"output": "result",
"data": {}
}
]
}
},
"position": [
858.915554049208,
1167.3416114297706
]
},
"b67f77ea658aa75a": {
"id": "b67f77ea658aa75a",
"name": "bitbybit.occt.shapes.face.createFaceFromWires",
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
},
"planar": false
},
"inputs": {
"shapes": {
"connections": [
{
"node": "1b0a82b2b22b0093",
"output": "list",
"data": {}
}
]
}
},
"position": [
5253.087142881022,
692.75199880101
]
},
"0c703c0ebfd9f631": {
"id": "0c703c0ebfd9f631",
"name": "bitbybit.lists.createList",
"data": {},
"inputs": {
"listElements": {
"connections": [
{
"node": "cb2fe38dcd848900",
"output": "result",
"data": {}
},
{
"node": "a5fe7b0648479063",
"output": "result",
"data": {}
}
]
}
},
"position": [
4235.291145972629,
928.9997241916554
]
},
"e4161fa3e9d82d32": {
"id": "e4161fa3e9d82d32",
"name": "bitbybit.lists.flatten",
"data": {
"nrLevels": 1
},
"inputs": {
"list": {
"connections": [
{
"node": "0c703c0ebfd9f631",
"output": "list",
"data": {}
}
]
}
},
"position": [
4516.287984027663,
697.8349028469199
]
},
"1b0a82b2b22b0093": {
"id": "1b0a82b2b22b0093",
"name": "bitbybit.lists.createList",
"data": {},
"inputs": {
"listElements": {
"connections": [
{
"node": "e4161fa3e9d82d32",
"output": "result",
"data": {}
}
]
}
},
"position": [
4868.041584143968,
708.376955402615
]
},
"3182cf27519b2a02": {
"id": "3182cf27519b2a02",
"name": "bitbybit.occt.operations.extrude",
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
}
},
"inputs": {
"shape": {
"connections": [
{
"node": "b67f77ea658aa75a",
"output": "result",
"data": {}
}
]
},
"direction": {
"connections": [
{
"node": "5d24dd7651a43671",
"output": "result",
"data": {}
}
]
}
},
"position": [
5803.741845368216,
805.6799665392979
]
},
"5d24dd7651a43671": {
"id": "5d24dd7651a43671",
"name": "bitbybit.vector.vectorXYZ",
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
},
"x": 0,
"y": 0,
"z": 0.2
},
"inputs": {},
"position": [
5448.307233762323,
1016.0923700270475
]
},
"5d560635d40a5f3c": {
"id": "5d560635d40a5f3c",
"name": "bitbybit.babylon.scene.enableSkybox",
"data": {
"genericNodeData": {
"hide": false,
"oneOnOne": false,
"flatten": 0
},
"skybox": "city",
"size": 1000,
"blur": 0.4,
"environmentIntensity": 0.7
},
"inputs": {},
"position": [
212.55510124312104,
1712.5857754209082
]
},
"58bbeb5bde0615e9": {
"id": "58bbeb5bde0615e9",
"name": "bitbybit.draw.drawAnyAsync",
"data": {
"genericNodeData": {
"hide": false,
"oneOnOne": false,
"flatten": 0
}
},
"inputs": {
"entity": {
"connections": [
{
"node": "3182cf27519b2a02",
"output": "result",
"data": {}
}
]
},
"options": {
"connections": [
{
"node": "c9ff9c28ac937f2c",
"output": "result",
"data": {}
}
]
}
},
"position": [
6552.987824721928,
1253.1490570158908
]
},
"fdbb939a8e3985c4": {
"id": "fdbb939a8e3985c4",
"name": "bitbybit.babylon.scene.drawDirectionalLight",
"data": {
"genericNodeData": {
"hide": false,
"oneOnOne": false,
"flatten": 0
},
"intensity": 2,
"diffuse": "#ffffff",
"specular": "#ffffff",
"shadowGeneratorMapSize": 1024,
"enableShadows": true,
"shadowDarkness": 0
},
"inputs": {},
"position": [
181.85100408961245,
2094.691022839723
]
},
"cb2fe38dcd848900": {
"id": "cb2fe38dcd848900",
"name": "bitbybit.occt.transforms.translate",
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
}
},
"inputs": {
"translation": {
"connections": [
{
"node": "5c4eacde8e863b39",
"output": "result",
"data": {}
}
]
},
"shape": {
"connections": [
{
"node": "d9c0020cb0d8272c",
"output": "result",
"data": {}
}
]
}
},
"position": [
1993.811876191125,
1642.692012459621
]
},
"5c4eacde8e863b39": {
"id": "5c4eacde8e863b39",
"name": "bitbybit.vector.vectorXYZ",
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
},
"x": 0,
"y": 0.3,
"z": 0
},
"inputs": {},
"position": [
1531.2837018519328,
1850.1223160779825
]
},
"c9ff9c28ac937f2c": {
"id": "c9ff9c28ac937f2c",
"name": "bitbybit.draw.optionsOcctShapeMaterial",
"data": {
"genericNodeData": {
"hide": false,
"oneOnOne": false,
"flatten": 0
},
"precision": 0.01,
"drawEdges": true,
"edgeColour": "#000000",
"edgeWidth": 1
},
"inputs": {
"faceMaterial": {
"connections": [
{
"node": "44c822fa470e3947",
"output": "result",
"data": {}
}
]
}
},
"position": [
5910.5869933724925,
1664.3016468042565
]
},
"44c822fa470e3947": {
"id": "44c822fa470e3947",
"name": "bitbybit.babylon.material.pbrMetallicRoughness.create",
"data": {
"genericNodeData": {
"hide": false,
"oneOnOne": false,
"flatten": 0
},
"name": "Custom Material",
"baseColor": "#69ff66",
"metallic": 0.8,
"roughness": 0.2,
"alpha": 1,
"backFaceCulling": false,
"zOffset": 2
},
"inputs": {},
"position": [
5450.711653863521,
1686.7961333268859
]
}
}
} Cloud Plans
