Script: Circular edge filters
- Type
rete- Project
- Centers of circular edges
- Author
- bitbybit
- Date Created
- Apr 3, 2024, 7:48:27 PM
- Last Edit Date
- Apr 4, 2024, 4:44:33 PM
Project Information

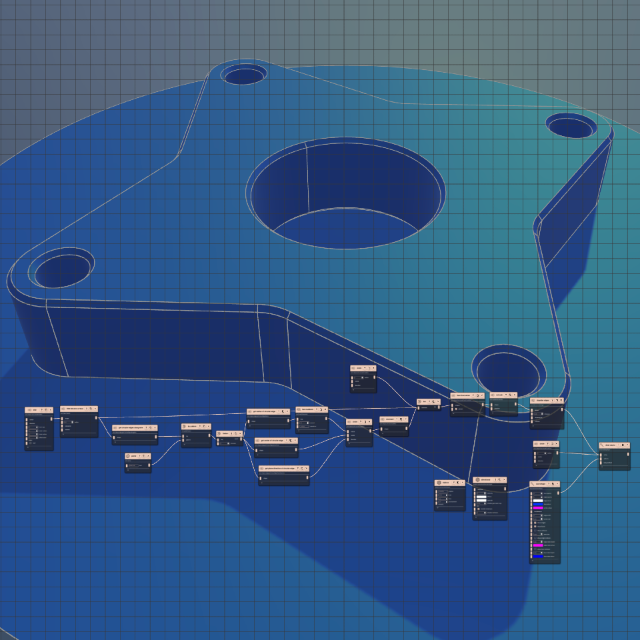

This project demonstrates how to filter circular edges and use information about these edges to construct parametric geometry.
Script Code
{
"id": "rete-v2-json",
"nodes": {
"c660448de8886a4a": {
"id": "c660448de8886a4a",
"name": "bitbybit.occt.shapes.wire.createStarWire",
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
},
"numRays": 4,
"outerRadius": 4,
"innerRadius": 2,
"offsetOuterEdges": 0,
"half": false
},
"inputs": {},
"position": [
491.13977528239536,
805.2829720164151
]
},
"59973f940bb176d3": {
"id": "59973f940bb176d3",
"name": "bitbybit.occt.fillets.fillet2d",
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
},
"radius": 0.5
},
"inputs": {
"shape": {
"connections": [
{
"node": "c660448de8886a4a",
"output": "result",
"data": {}
}
]
}
},
"position": [
855.0125338718065,
793.0774677321001
]
},
"c3ae92322015b46e": {
"id": "c3ae92322015b46e",
"name": "bitbybit.occt.shapes.edge.getCircularEdgesAlongWire",
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
}
},
"inputs": {
"shape": {
"connections": [
{
"node": "59973f940bb176d3",
"output": "result",
"data": {}
}
]
}
},
"position": [
1389.1858040912134,
988.5190784735848
]
},
"77eadd72857090b4": {
"id": "77eadd72857090b4",
"name": "bitbybit.occt.shapes.edge.getCircularEdgeCenterPoint",
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
}
},
"inputs": {
"shape": {
"connections": [
{
"node": "16c3559b35e1865e",
"output": "result",
"data": {}
}
]
}
},
"position": [
2853.646839155298,
1120.6218130335426
]
},
"16c3559b35e1865e": {
"id": "16c3559b35e1865e",
"name": "bitbybit.lists.flatten",
"data": {
"nrLevels": 1
},
"inputs": {
"list": {
"connections": [
{
"node": "b73760f84bf94db3",
"output": "result",
"data": {}
}
]
}
},
"position": [
2459.042756340605,
1048.8673612410912
]
},
"b73760f84bf94db3": {
"id": "b73760f84bf94db3",
"name": "bitbybit.lists.getByPattern",
"data": {
"genericNodeData": {
"hide": false,
"oneOnOne": false,
"flatten": 0
}
},
"inputs": {
"list": {
"connections": [
{
"node": "c3ae92322015b46e",
"output": "result",
"data": {}
}
]
},
"pattern": {
"connections": [
{
"node": "3eab1f5e9c7e6bc7",
"output": "result",
"data": {}
}
]
}
},
"position": [
2100.6988291908547,
974.5968284689075
]
},
"3eab1f5e9c7e6bc7": {
"id": "3eab1f5e9c7e6bc7",
"name": "bitbybit.json.parse",
"data": {
"genericNodeData": {
"hide": false,
"oneOnOne": false,
"flatten": 0
},
"text": "[false,true]"
},
"inputs": {},
"position": [
1520.5277917307944,
1279.7311456719679
]
},
"65aa26fc4488879a": {
"id": "65aa26fc4488879a",
"name": "bitbybit.occt.shapes.wire.createCircleWire",
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": true,
"flatten": 0
},
"radius": 0.3
},
"inputs": {
"radius": {
"connections": [
{
"node": "af00e2f44e6131cf",
"output": "result",
"data": {}
}
]
},
"center": {
"connections": [
{
"node": "77eadd72857090b4",
"output": "result",
"data": {}
}
]
},
"direction": {
"connections": [
{
"node": "e6a83778df15dfd9",
"output": "result",
"data": {}
}
]
}
},
"position": [
3794.7562448766444,
927.7593650813823
]
},
"8be8bcec3e286e5c": {
"id": "8be8bcec3e286e5c",
"name": "bitbybit.occt.shapes.face.createFaceFromWires",
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
},
"planar": true
},
"inputs": {
"shapes": {
"connections": [
{
"node": "a36140874129b5d6",
"output": "list",
"data": {}
}
]
}
},
"position": [
4866.999205027142,
657.2612848320978
]
},
"a36140874129b5d6": {
"id": "a36140874129b5d6",
"name": "bitbybit.lists.createList",
"data": {},
"inputs": {
"listElements": {
"connections": [
{
"node": "59973f940bb176d3",
"output": "result",
"data": {}
},
{
"node": "57f25efb1746e7cb",
"output": "result",
"data": {}
},
{
"node": "de048525102790a7",
"output": "result",
"data": {}
}
]
}
},
"position": [
4521.102702620287,
720.4812759825716
]
},
"30166b863a588aa2": {
"id": "30166b863a588aa2",
"name": "bitbybit.occt.operations.extrude",
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
}
},
"inputs": {
"shape": {
"connections": [
{
"node": "8be8bcec3e286e5c",
"output": "result",
"data": {}
}
]
}
},
"position": [
5270.94589630152,
651.9478611315831
]
},
"2bbc497966c474a0": {
"id": "2bbc497966c474a0",
"name": "bitbybit.occt.fillets.chamferEdges",
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
},
"distance": 0.05
},
"inputs": {
"shape": {
"connections": [
{
"node": "30166b863a588aa2",
"output": "result",
"data": {}
}
]
}
},
"position": [
5686.088235252179,
707.7993321112438
]
},
"73c7c3ae6c4731f3": {
"id": "73c7c3ae6c4731f3",
"name": "bitbybit.draw.drawAnyAsync",
"data": {
"genericNodeData": {
"hide": false,
"oneOnOne": false,
"flatten": 0
}
},
"inputs": {
"entity": {
"connections": [
{
"node": "2bbc497966c474a0",
"output": "result",
"data": {}
},
{
"node": "e0af12f4a28dd8d9",
"output": "result",
"data": {}
}
]
},
"options": {
"connections": [
{
"node": "8485ca2193c3e5bd",
"output": "result",
"data": {}
}
]
}
},
"position": [
6394.999889026584,
1167.5970201353562
]
},
"8485ca2193c3e5bd": {
"id": "8485ca2193c3e5bd",
"name": "bitbybit.draw.optionsOcctShape",
"data": {
"genericNodeData": {
"hide": false,
"oneOnOne": false,
"flatten": 0
},
"faceOpacity": 1,
"edgeOpacity": 1,
"edgeColour": "#ffffff",
"faceColour": "#0033ff",
"vertexColour": "#ff00ff",
"edgeWidth": 1,
"vertexSize": 0.05,
"drawEdges": true,
"drawFaces": true,
"drawVertices": false,
"precision": 0.001,
"drawEdgeIndexes": false,
"edgeIndexHeight": 0.06,
"edgeIndexColour": "#ff00ff",
"drawFaceIndexes": false,
"faceIndexHeight": 0.06,
"faceIndexColour": "#0000ff"
},
"inputs": {},
"position": [
5680.156283491467,
1566.471867481916
]
},
"de048525102790a7": {
"id": "de048525102790a7",
"name": "bitbybit.occt.shapes.wire.createCircleWire",
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
},
"radius": 1
},
"inputs": {},
"position": [
3837.6530177137115,
375.7124365837713
]
},
"1a83a6752421edee": {
"id": "1a83a6752421edee",
"name": "bitbybit.babylon.scene.enableSkybox",
"data": {
"genericNodeData": {
"hide": false,
"oneOnOne": false,
"flatten": 0
},
"skybox": "clearSky",
"size": 1000,
"blur": 0.1,
"environmentIntensity": 0.7
},
"inputs": {},
"position": [
4704.182237771038,
1553.2397929900249
]
},
"36e5425b3cfe7d7c": {
"id": "36e5425b3cfe7d7c",
"name": "bitbybit.babylon.scene.drawDirectionalLight",
"data": {
"genericNodeData": {
"hide": false,
"oneOnOne": false,
"flatten": 0
},
"intensity": 3,
"diffuse": "#ffffff",
"specular": "#ffffff",
"shadowGeneratorMapSize": 2056,
"enableShadows": true,
"shadowDarkness": 0
},
"inputs": {},
"position": [
5097.8974939159725,
1523.6646002182301
]
},
"e0af12f4a28dd8d9": {
"id": "e0af12f4a28dd8d9",
"name": "bitbybit.occt.shapes.face.createCircleFace",
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
},
"radius": 5
},
"inputs": {},
"position": [
5717.97689525739,
1153.3006437598813
]
},
"e3c6a041d4daba7d": {
"id": "e3c6a041d4daba7d",
"name": "bitbybit.occt.shapes.edge.getCircularEdgeRadius",
"data": {
"genericNodeData": {
"hide": false,
"oneOnOne": false,
"flatten": 0
}
},
"inputs": {
"shape": {
"connections": [
{
"node": "16c3559b35e1865e",
"output": "result",
"data": {}
}
]
}
},
"position": [
2773.641984012151,
821.9005603459766
]
},
"af00e2f44e6131cf": {
"id": "af00e2f44e6131cf",
"name": "bitbybit.math.twoNrOperation",
"data": {
"genericNodeData": {
"hide": false,
"oneOnOne": false,
"flatten": 0
},
"first": 1,
"second": 0.5,
"operation": "multiply"
},
"inputs": {
"first": {
"connections": [
{
"node": "e3c6a041d4daba7d",
"output": "result",
"data": {}
}
]
}
},
"position": [
3276.466858169382,
800.5609730889878
]
},
"e6a83778df15dfd9": {
"id": "e6a83778df15dfd9",
"name": "bitbybit.occt.shapes.edge.getCircularEdgePlaneDirection",
"data": {
"genericNodeData": {
"hide": false,
"oneOnOne": false,
"flatten": 0
}
},
"inputs": {
"shape": {
"connections": [
{
"node": "16c3559b35e1865e",
"output": "result",
"data": {}
}
]
}
},
"position": [
2895.9489491567647,
1407.2899315612367
]
},
"57f25efb1746e7cb": {
"id": "57f25efb1746e7cb",
"name": "bitbybit.occt.shapes.wire.reversedWire",
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
}
},
"inputs": {
"shape": {
"connections": [
{
"node": "65aa26fc4488879a",
"output": "result",
"data": {}
}
]
}
},
"position": [
4139.051993897255,
901.1161791455297
]
}
}
