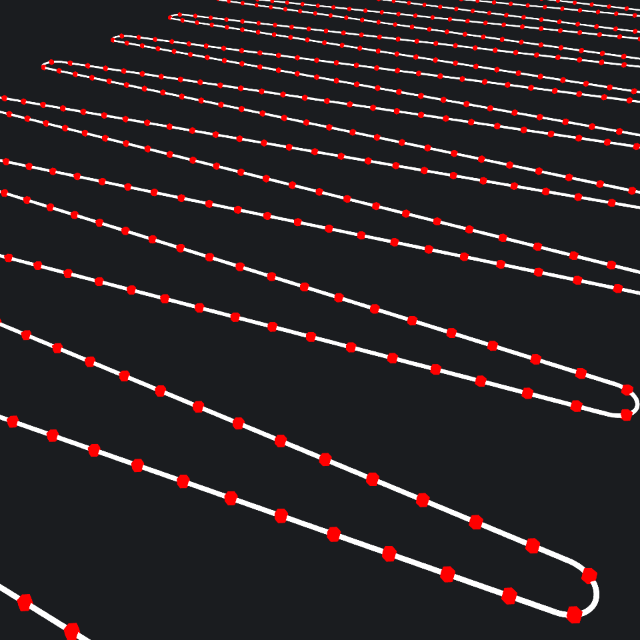

Script: Dividing Large Wire Example
- Type
rete- Project
- Getting Started Demos Rete
- Author
- matas
- Date Created
- Sep 14, 2024, 11:12:50 AM
- Last Edit Date
- Sep 14, 2024, 11:49:01 AM
Project Information
This project contains demo scripts for Rete editor that are used as examples in the "Getting Started" section of the documentation.
Script Code
{
"id": "rete-v2-json",
"nodes": {
"07617d524b5b083f": {
"id": "07617d524b5b083f",
"name": "bitbybit.occt.shapes.wire.getWireLength",
"async": true,
"drawable": false,
"data": {
"genericNodeData": {
"hide": false,
"oneOnOne": false,
"flatten": 0,
"forceExecution": false
}
},
"inputs": {
"shape": {
"connections": [
{
"node": "1125cd8315b07993",
"output": "result",
"data": {}
}
]
}
},
"position": [
2282.046507813783,
97.81313278029633
]
},
"132306907bd2dd70": {
"id": "132306907bd2dd70",
"name": "bitbybit.previewData",
"data": {
"previewJSONControl": "[\n 4340.827912144725\n]"
},
"inputs": {
"data": {
"connections": [
{
"node": "07617d524b5b083f",
"output": "result",
"data": {}
}
]
}
},
"position": [
2623.9621801476037,
-99.87175163569884
]
},
"ec973aff5327643c": {
"id": "ec973aff5327643c",
"name": "bitbybit.occt.shapes.wire.createLineWire",
"async": true,
"drawable": true,
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0,
"forceExecution": false
},
"start": [
0,
0,
0
],
"end": [
0,
1,
0
]
},
"inputs": {
"start": {
"connections": [
{
"node": "70f72af56d0edab3",
"output": "result",
"data": {}
}
]
},
"end": {
"connections": [
{
"node": "0f694ccb982e365d",
"output": "result",
"data": {}
}
]
}
},
"position": [
365.95705481060884,
746.843829922219
]
},
"70f72af56d0edab3": {
"id": "70f72af56d0edab3",
"name": "bitbybit.vector.vectorXYZ",
"async": false,
"drawable": true,
"data": {
"genericNodeData": {
"hide": false,
"oneOnOne": false,
"flatten": 0,
"forceExecution": false
},
"x": -200,
"y": 0,
"z": -10
},
"inputs": {},
"position": [
-80.71521735425037,
440.3050918230051
]
},
"0f694ccb982e365d": {
"id": "0f694ccb982e365d",
"name": "bitbybit.vector.vectorXYZ",
"async": false,
"drawable": true,
"data": {
"genericNodeData": {
"hide": false,
"oneOnOne": false,
"flatten": 0,
"forceExecution": false
},
"x": 200,
"y": 0,
"z": -10
},
"inputs": {},
"position": [
-66.33623127160135,
972.6277805519092
]
},
"91cec7c9de876f97": {
"id": "91cec7c9de876f97",
"name": "bitbybit.draw.optionsSimple",
"async": false,
"drawable": false,
"data": {
"genericNodeData": {
"hide": false,
"oneOnOne": false,
"flatten": 0,
"forceExecution": false
},
"colours": "#ff0000",
"size": 0.3,
"opacity": 1,
"updatable": false,
"hidden": false
},
"inputs": {},
"position": [
2953.593348019897,
777.4135722499004
]
},
"0ce87d99f32102c3": {
"id": "0ce87d99f32102c3",
"name": "bitbybit.occt.transforms.translate",
"async": true,
"drawable": true,
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0,
"forceExecution": false
},
"translation": [
0,
0,
0
]
},
"inputs": {
"shape": {
"connections": [
{
"node": "ec973aff5327643c",
"output": "result",
"data": {}
}
]
},
"translation": {
"connections": [
{
"node": "336308488b9e9362",
"output": "result",
"data": {}
}
]
}
},
"position": [
720.4514049520625,
1021.6918369174364
]
},
"336308488b9e9362": {
"id": "336308488b9e9362",
"name": "bitbybit.vector.vectorXYZ",
"async": false,
"drawable": true,
"data": {
"genericNodeData": {
"hide": false,
"oneOnOne": false,
"flatten": 0,
"forceExecution": false
},
"x": 0,
"y": 0,
"z": 49.95
},
"inputs": {},
"position": [
324.4519729275021,
1135.4074479447243
]
},
"2b7a54f8deee89db": {
"id": "2b7a54f8deee89db",
"name": "bitbybit.occt.shapes.wire.createZigZagBetweenTwoWires",
"async": true,
"drawable": true,
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0,
"forceExecution": false
},
"nrZigZags": 70,
"inverse": false,
"divideByEqualDistance": false,
"zigZagsPerEdge": true
},
"inputs": {
"wire1": {
"connections": [
{
"node": "ec973aff5327643c",
"output": "result",
"data": {}
}
]
},
"wire2": {
"connections": [
{
"node": "0ce87d99f32102c3",
"output": "result",
"data": {}
}
]
}
},
"position": [
1158.5178385513962,
725.7560940211405
]
},
"6251111ec66d1cc9": {
"id": "6251111ec66d1cc9",
"name": "bitbybit.draw.drawAnyAsync",
"async": true,
"drawable": false,
"data": {
"genericNodeData": {
"hide": false,
"oneOnOne": false,
"flatten": 0,
"forceExecution": false
}
},
"inputs": {
"options": {
"connections": [
{
"node": "8e71982c69d48e23",
"output": "result",
"data": {}
}
]
},
"entity": {
"connections": [
{
"node": "1125cd8315b07993",
"output": "result",
"data": {}
}
]
}
},
"position": [
2408.4984963062707,
1120.3176620853424
]
},
"8e71982c69d48e23": {
"id": "8e71982c69d48e23",
"name": "bitbybit.draw.optionsOcctShapeSimple",
"async": false,
"drawable": false,
"data": {
"genericNodeData": {
"hide": false,
"oneOnOne": false,
"flatten": 0,
"forceExecution": false
},
"precision": 0.01,
"drawFaces": true,
"faceColour": "#ff0000",
"drawEdges": true,
"edgeColour": "#ffffff",
"edgeWidth": 10
},
"inputs": {},
"position": [
1531.0945882570645,
1298.1069616053992
]
},
"f5386ecbfaf57763": {
"id": "f5386ecbfaf57763",
"name": "bitbybit.occt.shapes.wire.divideWireByEqualDistanceToPoints",
"async": true,
"drawable": true,
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0,
"forceExecution": false
},
"nrOfDivisions": 4000,
"removeStartPoint": false,
"removeEndPoint": false
},
"inputs": {
"shape": {
"connections": [
{
"node": "1125cd8315b07993",
"output": "result",
"data": {}
}
]
}
},
"position": [
2412.3257887995624,
551.4955813280537
]
},
"9e075cb3702e8f8f": {
"id": "9e075cb3702e8f8f",
"name": "bitbybit.draw.drawAnyAsync",
"async": true,
"drawable": false,
"data": {
"genericNodeData": {
"hide": false,
"oneOnOne": false,
"flatten": 0,
"forceExecution": false
}
},
"inputs": {
"entity": {
"connections": [
{
"node": "f5386ecbfaf57763",
"output": "result",
"data": {}
}
]
},
"options": {
"connections": [
{
"node": "91cec7c9de876f97",
"output": "result",
"data": {}
}
]
}
},
"position": [
3234.8654839201727,
377.19374084110177
]
},
"c56e9fa396a5dff5": {
"id": "c56e9fa396a5dff5",
"name": "bitbybit.babylon.scene.adjustActiveArcRotateCamera",
"async": false,
"drawable": false,
"data": {
"genericNodeData": {
"hide": false,
"oneOnOne": false,
"flatten": 0,
"forceExecution": false
},
"position": [
10,
10,
10
],
"lookAt": [
0,
0,
0
],
"lowerBetaLimit": 1,
"upperBetaLimit": 179,
"angularSensibilityX": 1000,
"angularSensibilityY": 1000,
"maxZ": 1000,
"panningSensibility": 1000,
"wheelPrecision": 3
},
"inputs": {
"position": {
"connections": [
{
"node": "f7bea14b3f05cca4",
"output": "result",
"data": {}
}
]
}
},
"position": [
83.99550999158794,
1623.008343762187
]
},
"f7bea14b3f05cca4": {
"id": "f7bea14b3f05cca4",
"name": "bitbybit.vector.vectorXYZ",
"async": false,
"drawable": true,
"data": {
"genericNodeData": {
"hide": false,
"oneOnOne": false,
"flatten": 0,
"forceExecution": false
},
"x": 100,
"y": 100,
"z": 100
},
"inputs": {},
"position": [
-351.8035971518484,
1622.8869085702781
]
},
"1125cd8315b07993": {
"id": "1125cd8315b07993",
"name": "bitbybit.occt.fillets.fillet2d",
"async": true,
"drawable": true,
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0,
"forceExecution": false
},
"radius": 0.6
},
"inputs": {
"shape": {
"connections": [
{
"node": "2b7a54f8deee89db",
"output": "result",
"data": {}
}
]
}
},
"position": [
1828.8153113768012,
659.8298510063264
]
}
}
