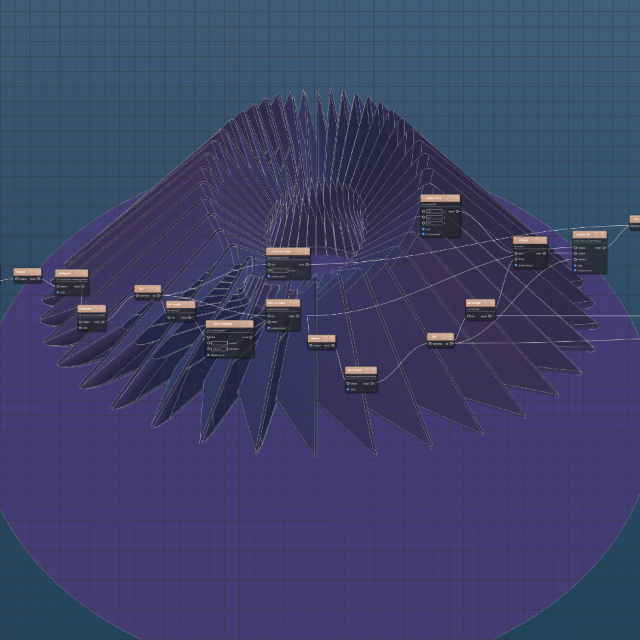

Script: Parametric Ellipsoid Model
- Type
rete- Project
- Rotated Parametric Ellipsoid
- Author
- bitbybit
- Date Created
- Apr 1, 2023, 8:27:19 PM
- Last Edit Date
- Dec 7, 2023, 3:42:01 PM
Project Information
Rete is a great visual programming editor that now exposed many new components to create various kinds of parametric geometries.
Script Code
{
"id": "bitbybit-dev@0.0.1",
"nodes": {
"7": {
"id": 7,
"data": {
"hide": true,
"simpleOutput": true,
"radius": 1,
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
}
},
"inputs": {
"radius": {
"connections": [
{
"node": 16,
"output": "result",
"data": {}
}
]
},
"center": {
"connections": []
},
"direction": {
"connections": []
}
},
"outputs": {
"result": {
"connections": [
{
"node": 31,
"input": "shape",
"data": {}
}
]
}
},
"position": [
18.869834088257306,
256.81118039968834
],
"name": "bitbybit.occt.shapes.wire.createCircleWire"
},
"8": {
"id": 8,
"data": {
"hide": true,
"simpleOutput": true,
"radius": 1,
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
}
},
"inputs": {
"radius": {
"connections": [
{
"node": 13,
"output": "result",
"data": {}
}
]
},
"center": {
"connections": []
},
"direction": {
"connections": []
}
},
"outputs": {
"result": {
"connections": [
{
"node": 31,
"input": "shape",
"data": {}
}
]
}
},
"position": [
-6.288137963003152,
-50.78791505854708
],
"name": "bitbybit.occt.shapes.wire.createCircleWire"
},
"12": {
"id": 12,
"data": {
"number": 1.4
},
"inputs": {
"number": {
"connections": []
}
},
"outputs": {
"result": {
"connections": [
{
"node": 19,
"input": "first",
"data": {}
},
{
"node": 18,
"input": "radiusMinor",
"data": {}
},
{
"node": 28,
"input": "first",
"data": {}
},
{
"node": 29,
"input": "y",
"data": {}
}
]
}
},
"position": [
-1202.8362999180506,
-626.542421620887
],
"name": "bitbybit.math.number"
},
"13": {
"id": 13,
"data": {
"number": 2
},
"inputs": {
"number": {
"connections": []
}
},
"outputs": {
"result": {
"connections": [
{
"node": 8,
"input": "radius",
"data": {}
}
]
}
},
"position": [
-957.5705188717164,
-147.61310671637813
],
"name": "bitbybit.math.number"
},
"16": {
"id": 16,
"data": {
"number": 6
},
"inputs": {
"number": {
"connections": []
}
},
"outputs": {
"result": {
"connections": [
{
"node": 7,
"input": "radius",
"data": {}
}
]
}
},
"position": [
-963.4114790442086,
28.105111803065306
],
"name": "bitbybit.math.number"
},
"18": {
"id": 18,
"data": {
"hide": true,
"simpleOutput": true,
"radiusMinor": 1.5,
"radiusMajor": 3,
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
}
},
"inputs": {
"center": {
"connections": [
{
"node": 29,
"output": "result",
"data": {}
}
]
},
"direction": {
"connections": []
},
"radiusMinor": {
"connections": [
{
"node": 12,
"output": "result",
"data": {}
}
]
},
"radiusMajor": {
"connections": [
{
"node": 19,
"output": "result",
"data": {}
}
]
}
},
"outputs": {
"result": {
"connections": [
{
"node": 31,
"input": "shape",
"data": {}
}
]
}
},
"position": [
285.6293699960282,
-602.7498087493911
],
"name": "bitbybit.occt.shapes.wire.createEllipseWire"
},
"19": {
"id": 19,
"data": {
"simpleOutput": true,
"first": 1,
"second": 2,
"operation": "multiply"
},
"inputs": {
"first": {
"connections": [
{
"node": 12,
"output": "result",
"data": {}
}
]
},
"second": {
"connections": []
},
"operation": {
"connections": []
}
},
"outputs": {
"result": {
"connections": [
{
"node": 18,
"input": "radiusMajor",
"data": {}
},
{
"node": 21,
"input": "first",
"data": {}
},
{
"node": 30,
"input": "y",
"data": {}
}
]
}
},
"position": [
-852.6919252954584,
-467.9200406058119
],
"name": "bitbybit.math.twoNrOperation"
},
"20": {
"id": 20,
"data": {
"hide": true,
"simpleOutput": true,
"radiusMinor": 1,
"radiusMajor": 2,
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
}
},
"inputs": {
"center": {
"connections": [
{
"node": 30,
"output": "result",
"data": {}
}
]
},
"direction": {
"connections": []
},
"radiusMinor": {
"connections": [
{
"node": 28,
"output": "result",
"data": {}
}
]
},
"radiusMajor": {
"connections": [
{
"node": 21,
"output": "result",
"data": {}
}
]
}
},
"outputs": {
"result": {
"connections": [
{
"node": 31,
"input": "shape",
"data": {}
}
]
}
},
"position": [
304.0994054818125,
-1101.8258647574826
],
"name": "bitbybit.occt.shapes.wire.createEllipseWire"
},
"21": {
"id": 21,
"data": {
"simpleOutput": true,
"first": 1,
"second": 3,
"operation": "add"
},
"inputs": {
"first": {
"connections": [
{
"node": 19,
"output": "result",
"data": {}
}
]
},
"second": {
"connections": []
},
"operation": {
"connections": []
}
},
"outputs": {
"result": {
"connections": [
{
"node": 20,
"input": "radiusMajor",
"data": {}
}
]
}
},
"position": [
-299.3953012176979,
-965.1726243547024
],
"name": "bitbybit.math.twoNrOperation"
},
"28": {
"id": 28,
"data": {
"simpleOutput": true,
"first": 1,
"second": 1.1,
"operation": "add"
},
"inputs": {
"first": {
"connections": [
{
"node": 12,
"output": "result",
"data": {}
}
]
},
"second": {
"connections": []
},
"operation": {
"connections": []
}
},
"outputs": {
"result": {
"connections": [
{
"node": 20,
"input": "radiusMinor",
"data": {}
}
]
}
},
"position": [
-306.3542234089226,
-1286.4274184055948
],
"name": "bitbybit.math.twoNrOperation"
},
"29": {
"id": 29,
"data": {
"hide": true,
"simpleOutput": true,
"x": 0,
"y": 0,
"z": 0,
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
}
},
"inputs": {
"x": {
"connections": []
},
"y": {
"connections": [
{
"node": 12,
"output": "result",
"data": {}
}
]
},
"z": {
"connections": []
}
},
"outputs": {
"result": {
"connections": [
{
"node": 18,
"input": "center",
"data": {}
}
]
}
},
"position": [
-281.930137719952,
-673.7936932341875
],
"name": "bitbybit.vector.vectorXYZ"
},
"30": {
"id": 30,
"data": {
"hide": true,
"simpleOutput": true,
"x": 0,
"y": 0,
"z": 0,
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
}
},
"inputs": {
"x": {
"connections": []
},
"y": {
"connections": [
{
"node": 19,
"output": "result",
"data": {}
}
]
},
"z": {
"connections": []
}
},
"outputs": {
"result": {
"connections": [
{
"node": 20,
"input": "center",
"data": {}
}
]
}
},
"position": [
-295.9207356615921,
-390.1226894545706
],
"name": "bitbybit.vector.vectorXYZ"
},
"31": {
"id": 31,
"data": {
"removeStartPoint": false,
"removeEndPoint": false,
"hide": true,
"simpleOutput": true,
"nrOfDivisions": 40,
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
}
},
"inputs": {
"shape": {
"connections": [
{
"node": 7,
"output": "result",
"data": {}
},
{
"node": 8,
"output": "result",
"data": {}
},
{
"node": 18,
"output": "result",
"data": {}
},
{
"node": 20,
"output": "result",
"data": {}
}
]
},
"nrOfDivisions": {
"connections": []
},
"removeStartPoint": {
"connections": []
},
"removeEndPoint": {
"connections": []
}
},
"outputs": {
"result": {
"connections": [
{
"node": 39,
"input": "listElements",
"data": {}
}
]
}
},
"position": [
828.0205987786776,
-360.6708121293274
],
"name": "bitbybit.occt.shapes.wire.divideWireByParamsToPoints"
},
"36": {
"id": 36,
"data": {},
"inputs": {
"list": {
"connections": [
{
"node": 39,
"output": "list",
"data": {}
}
]
}
},
"outputs": {
"result": {
"connections": [
{
"node": 41,
"input": "list",
"data": {}
}
]
}
},
"position": [
1440.3639376072626,
-281.80621405474153
],
"name": "bitbybit.lists.flipLists"
},
"39": {
"id": 39,
"data": {},
"inputs": {
"listElements": {
"connections": [
{
"node": 31,
"output": "result",
"data": {}
}
]
}
},
"outputs": {
"list": {
"connections": [
{
"node": 36,
"input": "list",
"data": {}
}
]
}
},
"position": [
1227.2843464204632,
-244.29339475778062
],
"name": "createList"
},
"40": {
"id": 40,
"data": {
"hide": true,
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
}
},
"inputs": {
"points": {
"connections": [
{
"node": 41,
"output": "result",
"data": {}
}
]
}
},
"outputs": {
"result": {
"connections": [
{
"node": 55,
"input": "shape",
"data": {}
}
]
}
},
"position": [
2023.8158598946068,
-254.1031045172963
],
"name": "bitbybit.occt.shapes.wire.createPolygonWire"
},
"41": {
"id": 41,
"data": {
"nrLevels": 1
},
"inputs": {
"list": {
"connections": [
{
"node": 36,
"output": "result",
"data": {}
}
]
},
"nrLevels": {
"connections": []
}
},
"outputs": {
"result": {
"connections": [
{
"node": 40,
"input": "points",
"data": {}
}
]
}
},
"position": [
1688.8063940179704,
-256.52186479758814
],
"name": "flatten"
},
"43": {
"id": 43,
"data": {
"simpleOutput": true,
"index": 0
},
"inputs": {
"list": {
"connections": [
{
"node": 45,
"output": "list",
"data": {}
}
]
},
"index": {
"connections": []
}
},
"outputs": {
"result": {
"connections": [
{
"node": 50,
"input": "listElements",
"data": {}
}
]
}
},
"position": [
3242.5485782629544,
-383.427285036479
],
"name": "bitbybit.lists.removeItemAtIndex"
},
"44": {
"id": 44,
"data": {},
"inputs": {
"list": {
"connections": [
{
"node": 45,
"output": "list",
"data": {}
}
]
}
},
"outputs": {
"result": {
"connections": [
{
"node": 48,
"input": "first",
"data": {}
}
]
}
},
"position": [
2627.333321561589,
-56.857626941806515
],
"name": "bitbybit.lists.listLength"
},
"45": {
"id": 45,
"data": {},
"inputs": {
"listElements": {
"connections": [
{
"node": 55,
"output": "result",
"data": {}
}
]
}
},
"outputs": {
"list": {
"connections": [
{
"node": 43,
"input": "list",
"data": {}
},
{
"node": 44,
"input": "list",
"data": {}
},
{
"node": 47,
"input": "list",
"data": {}
}
]
}
},
"position": [
2431.613536040034,
-153.257877502493
],
"name": "createList"
},
"47": {
"id": 47,
"data": {
"simpleOutput": true,
"index": 0
},
"inputs": {
"list": {
"connections": [
{
"node": 45,
"output": "list",
"data": {}
}
]
},
"index": {
"connections": [
{
"node": 48,
"output": "result",
"data": {}
}
]
}
},
"outputs": {
"result": {
"connections": [
{
"node": 63,
"input": "shapes",
"data": {}
},
{
"node": 61,
"input": "list",
"data": {}
}
]
}
},
"position": [
3242.0711708491476,
-65.79992666928072
],
"name": "bitbybit.lists.removeItemAtIndex"
},
"48": {
"id": 48,
"data": {
"simpleOutput": true,
"first": 1,
"second": 1,
"operation": "subtract"
},
"inputs": {
"first": {
"connections": [
{
"node": 44,
"output": "result",
"data": {}
}
]
},
"second": {
"connections": []
},
"operation": {
"connections": []
}
},
"outputs": {
"result": {
"connections": [
{
"node": 47,
"input": "index",
"data": {}
}
]
}
},
"position": [
2870.4241768698557,
63.64419977665864
],
"name": "bitbybit.math.twoNrOperation"
},
"50": {
"id": 50,
"data": {},
"inputs": {
"listElements": {
"connections": [
{
"node": 43,
"output": "result",
"data": {}
},
{
"node": 63,
"output": "result",
"data": {}
}
]
}
},
"outputs": {
"list": {
"connections": [
{
"node": 52,
"input": "list",
"data": {}
}
]
}
},
"position": [
5479.5593152618485,
-581.9067580129665
],
"name": "createList"
},
"52": {
"id": 52,
"data": {},
"inputs": {
"list": {
"connections": [
{
"node": 50,
"output": "list",
"data": {}
}
]
}
},
"outputs": {
"result": {
"connections": [
{
"node": 54,
"input": "list",
"data": {}
}
]
}
},
"position": [
5691.522812758692,
-612.980690168301
],
"name": "bitbybit.lists.flipLists"
},
"54": {
"id": 54,
"data": {
"nrLevels": 1
},
"inputs": {
"list": {
"connections": [
{
"node": 52,
"output": "result",
"data": {}
}
]
},
"nrLevels": {
"connections": []
}
},
"outputs": {
"result": {
"connections": [
{
"node": 68,
"input": "shapes",
"data": {}
}
]
}
},
"position": [
5924.739771503408,
-577.8091166827984
],
"name": "flatten"
},
"55": {
"id": 55,
"data": {
"hide": true,
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
}
},
"inputs": {
"shape": {
"connections": [
{
"node": 40,
"output": "result",
"data": {}
}
]
}
},
"outputs": {
"result": {
"connections": [
{
"node": 45,
"input": "listElements",
"data": {}
}
]
}
},
"position": [
2082.247933236842,
-30.374794049111106
],
"name": "bitbybit.occt.shapes.wire.reversedWire"
},
"60": {
"id": 60,
"data": {
"hide": true,
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
}
},
"inputs": {
"shape": {
"connections": [
{
"node": 61,
"output": "result",
"data": {}
}
]
}
},
"outputs": {
"result": {
"connections": [
{
"node": 64,
"input": "listElements",
"data": {}
}
]
}
},
"position": [
3729.6353029182005,
348.2742574292835
],
"name": "bitbybit.occt.shapes.wire.startPointOnWire"
},
"61": {
"id": 61,
"data": {
"nrLevels": 1
},
"inputs": {
"list": {
"connections": [
{
"node": 47,
"output": "result",
"data": {}
}
]
},
"nrLevels": {
"connections": []
}
},
"outputs": {
"result": {
"connections": [
{
"node": 60,
"input": "shape",
"data": {}
}
]
}
},
"position": [
3499.2879589437844,
153.4720200289907
],
"name": "flatten"
},
"63": {
"id": 63,
"data": {
"hide": true,
"simpleOutput": true,
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
}
},
"inputs": {
"shapes": {
"connections": [
{
"node": 47,
"output": "result",
"data": {}
}
]
},
"scales": {
"connections": [
{
"node": 65,
"output": "result",
"data": {}
}
]
},
"centers": {
"connections": [
{
"node": 64,
"output": "list",
"data": {}
}
]
}
},
"outputs": {
"result": {
"connections": [
{
"node": 50,
"input": "listElements",
"data": {}
}
]
}
},
"position": [
5128.3617685879235,
-486.70773048415475
],
"name": "bitbybit.occt.transforms.scale3dShapes"
},
"64": {
"id": 64,
"data": {},
"inputs": {
"listElements": {
"connections": [
{
"node": 60,
"output": "result",
"data": {}
}
]
}
},
"outputs": {
"list": {
"connections": [
{
"node": 63,
"input": "centers",
"data": {}
},
{
"node": 67,
"input": "list",
"data": {}
},
{
"node": 93,
"input": "centers",
"data": {}
}
]
}
},
"position": [
4233.941214736363,
142.0500363362817
],
"name": "createList"
},
"65": {
"id": 65,
"data": {
"simpleOutput": true,
"times": 10
},
"inputs": {
"item": {
"connections": [
{
"node": 73,
"output": "result",
"data": {}
}
]
},
"times": {
"connections": [
{
"node": 67,
"output": "result",
"data": {}
}
]
}
},
"outputs": {
"result": {
"connections": [
{
"node": 63,
"input": "scales",
"data": {}
}
]
}
},
"position": [
4767.353939333308,
-452.27820285282803
],
"name": "bitbybit.lists.repeat"
},
"67": {
"id": 67,
"data": {},
"inputs": {
"list": {
"connections": [
{
"node": 64,
"output": "list",
"data": {}
}
]
}
},
"outputs": {
"result": {
"connections": [
{
"node": 65,
"input": "times",
"data": {}
},
{
"node": 98,
"input": "times",
"data": {}
}
]
}
},
"position": [
4472.33223385645,
-65.71614880389106
],
"name": "bitbybit.lists.listLength"
},
"68": {
"id": 68,
"data": {
"makeSolid": false,
"hide": true,
"simpleOutput": true,
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
}
},
"inputs": {
"shapes": {
"connections": [
{
"node": 54,
"output": "result",
"data": {}
}
]
},
"makeSolid": {
"connections": []
}
},
"outputs": {
"result": {
"connections": [
{
"node": 88,
"input": "shape",
"data": {}
}
]
}
},
"position": [
6149.718466556235,
-616.632728865608
],
"name": "bitbybit.occt.operations.loft"
},
"73": {
"id": 73,
"data": {
"hide": true,
"simpleOutput": true,
"x": 1.5,
"y": 1.5,
"z": 1.5,
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
}
},
"inputs": {
"x": {
"connections": []
},
"y": {
"connections": []
},
"z": {
"connections": []
}
},
"outputs": {
"result": {
"connections": [
{
"node": 65,
"input": "item",
"data": {}
}
]
}
},
"position": [
4193.0993462652295,
-710.574918506071
],
"name": "bitbybit.vector.vectorXYZ"
},
"88": {
"id": 88,
"data": {
"hide": true,
"simpleOutput": true,
"radius": 0.2,
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
}
},
"inputs": {
"shape": {
"connections": [
{
"node": 68,
"output": "result",
"data": {}
}
]
},
"radius": {
"connections": []
},
"radiusList": {
"connections": []
},
"indexes": {
"connections": []
}
},
"outputs": {
"result": {
"connections": [
{
"node": 95,
"input": "listElements",
"data": {}
}
]
}
},
"position": [
6431.184686200055,
-610.1088080310842
],
"name": "bitbybit.occt.fillets.filletEdges"
},
"89": {
"id": 89,
"data": {
"simpleOutput": true
},
"inputs": {
"entity": {
"connections": [
{
"node": 109,
"output": "result",
"data": {}
}
]
},
"options": {
"connections": [
{
"node": 90,
"output": "result",
"data": {}
}
]
},
"babylonMesh": {
"connections": []
}
},
"outputs": {
"result": {
"connections": []
}
},
"position": [
8927.23263551451,
-268.92354330092854
],
"name": "bitbybit.draw.drawAnyAsync"
},
"90": {
"id": 90,
"data": {
"drawEdges": true,
"drawFaces": true,
"drawEdgeIndexes": false,
"drawFaceIndexes": false,
"simpleOutput": true,
"faceOpacity": 1,
"edgeOpacity": 1,
"edgeColour": "#ffffff",
"faceColour": "#ff0000",
"edgeWidth": 0.2,
"precision": 0.005,
"edgeIndexHeight": 0.06,
"edgeIndexColour": "ff00ff",
"faceIndexHeight": 0.06,
"faceIndexColour": "#0000ff"
},
"inputs": {
"faceOpacity": {
"connections": []
},
"edgeOpacity": {
"connections": []
},
"edgeColour": {
"connections": []
},
"faceColour": {
"connections": []
},
"faceMaterial": {
"connections": [
{
"node": 91,
"output": "result",
"data": {}
}
]
},
"edgeWidth": {
"connections": []
},
"drawEdges": {
"connections": []
},
"drawFaces": {
"connections": []
},
"precision": {
"connections": []
},
"drawEdgeIndexes": {
"connections": []
},
"edgeIndexHeight": {
"connections": []
},
"edgeIndexColour": {
"connections": []
},
"drawFaceIndexes": {
"connections": []
},
"faceIndexHeight": {
"connections": []
},
"faceIndexColour": {
"connections": []
}
},
"outputs": {
"result": {
"connections": [
{
"node": 89,
"input": "options",
"data": {}
},
{
"node": 107,
"input": "options",
"data": {}
}
]
}
},
"position": [
7716.673275866004,
-661.3125953718453
],
"name": "bitbybit.draw.optionsOcctShape"
},
"91": {
"id": 91,
"data": {
"backFaceCulling": false,
"simpleOutput": true,
"name": "Custom Material",
"baseColor": "#7a33ff",
"metallic": 0.8,
"roughness": 0.3,
"alpha": 1,
"zOffset": 0
},
"inputs": {
"name": {
"connections": []
},
"baseColor": {
"connections": []
},
"metallic": {
"connections": []
},
"roughness": {
"connections": []
},
"alpha": {
"connections": []
},
"backFaceCulling": {
"connections": []
},
"zOffset": {
"connections": []
}
},
"outputs": {
"result": {
"connections": [
{
"node": 90,
"input": "faceMaterial",
"data": {}
}
]
}
},
"position": [
7151.173238545159,
-632.542390989217
],
"name": "bitbybit.babylon.material.pbrMetallicRoughness.create"
},
"92": {
"id": 92,
"data": {
"hide": true,
"simpleOutput": true,
"x": 0.9,
"y": 0.9,
"z": 0.9,
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
}
},
"inputs": {
"x": {
"connections": [
{
"node": 111,
"output": "result",
"data": {}
}
]
},
"y": {
"connections": [
{
"node": 111,
"output": "result",
"data": {}
}
]
},
"z": {
"connections": [
{
"node": 111,
"output": "result",
"data": {}
}
]
}
},
"outputs": {
"result": {
"connections": [
{
"node": 98,
"input": "item",
"data": {}
}
]
}
},
"position": [
6293.156570947895,
-248.2302541393666
],
"name": "bitbybit.vector.vectorXYZ"
},
"93": {
"id": 93,
"data": {
"hide": true,
"simpleOutput": true,
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
}
},
"inputs": {
"shapes": {
"connections": [
{
"node": 95,
"output": "list",
"data": {}
}
]
},
"scales": {
"connections": [
{
"node": 98,
"output": "result",
"data": {}
}
]
},
"centers": {
"connections": [
{
"node": 64,
"output": "list",
"data": {}
}
]
}
},
"outputs": {
"result": {
"connections": [
{
"node": 101,
"input": "list",
"data": {}
}
]
}
},
"position": [
7170.702548881185,
-44.59390545123563
],
"name": "bitbybit.occt.transforms.scale3dShapes"
},
"95": {
"id": 95,
"data": {},
"inputs": {
"listElements": {
"connections": [
{
"node": 88,
"output": "result",
"data": {}
}
]
}
},
"outputs": {
"list": {
"connections": [
{
"node": 93,
"input": "shapes",
"data": {}
}
]
}
},
"position": [
6941.061217650433,
-112.26186182596632
],
"name": "createList"
},
"98": {
"id": 98,
"data": {
"simpleOutput": true,
"times": 10
},
"inputs": {
"item": {
"connections": [
{
"node": 92,
"output": "result",
"data": {}
}
]
},
"times": {
"connections": [
{
"node": 67,
"output": "result",
"data": {}
}
]
}
},
"outputs": {
"result": {
"connections": [
{
"node": 93,
"input": "scales",
"data": {}
}
]
}
},
"position": [
6662.114364296665,
-100.46614912169301
],
"name": "bitbybit.lists.repeat"
},
"99": {
"id": 99,
"data": {
"hide": true,
"simpleOutput": true,
"offset": 0.05,
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
}
},
"inputs": {
"shape": {
"connections": [
{
"node": 101,
"output": "result",
"data": {}
}
]
},
"offset": {
"connections": []
}
},
"outputs": {
"result": {
"connections": [
{
"node": 110,
"input": "listElements",
"data": {}
}
]
}
},
"position": [
7779.847979494318,
71.58718417822541
],
"name": "bitbybit.occt.operations.makeThickSolidSimple"
},
"101": {
"id": 101,
"data": {
"nrLevels": 1
},
"inputs": {
"list": {
"connections": [
{
"node": 93,
"output": "result",
"data": {}
}
]
},
"nrLevels": {
"connections": []
}
},
"outputs": {
"result": {
"connections": [
{
"node": 99,
"input": "shape",
"data": {}
}
]
}
},
"position": [
7445.608395000835,
49.522191198934685
],
"name": "flatten"
},
"102": {
"id": 102,
"data": {
"simpleOutput": true,
"skybox": "clearSky",
"size": 1000,
"blur": 0.2,
"environmentIntensity": 0.7
},
"inputs": {
"skybox": {
"connections": []
},
"size": {
"connections": []
},
"blur": {
"connections": []
},
"environmentIntensity": {
"connections": []
}
},
"outputs": {},
"position": [
-1150.7532092102756,
-2067.7342577216414
],
"name": "bitbybit.babylon.scene.enableSkybox"
},
"103": {
"id": 103,
"data": {
"enableShadows": true,
"simpleOutput": true,
"intensity": 0.3,
"diffuse": "#ffffff",
"specular": "#ffffff",
"shadowGeneratorMapSize": 2056,
"shadowDarkness": 0
},
"inputs": {
"direction": {
"connections": [
{
"node": 108,
"output": "result",
"data": {}
}
]
},
"intensity": {
"connections": []
},
"diffuse": {
"connections": []
},
"specular": {
"connections": []
},
"shadowGeneratorMapSize": {
"connections": []
},
"enableShadows": {
"connections": []
},
"shadowDarkness": {
"connections": []
}
},
"outputs": {
"result": {
"connections": []
}
},
"position": [
-1205.2344196333827,
-1578.0083108097147
],
"name": "bitbybit.babylon.scene.drawDirectionalLight"
},
"104": {
"id": 104,
"data": {
"hide": true,
"simpleOutput": true,
"radiusMinor": 8,
"radiusMajor": 12,
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
}
},
"inputs": {
"center": {
"connections": [
{
"node": 105,
"output": "result",
"data": {}
}
]
},
"direction": {
"connections": []
},
"radiusMinor": {
"connections": []
},
"radiusMajor": {
"connections": []
}
},
"outputs": {
"result": {
"connections": [
{
"node": 107,
"input": "entity",
"data": {}
}
]
}
},
"position": [
6996.824493898636,
-1537.4894667255942
],
"name": "bitbybit.occt.shapes.face.createEllipseFace"
},
"105": {
"id": 105,
"data": {
"hide": true,
"simpleOutput": true,
"x": 0,
"y": -0.1,
"z": 0,
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
}
},
"inputs": {
"x": {
"connections": []
},
"y": {
"connections": []
},
"z": {
"connections": []
}
},
"outputs": {
"result": {
"connections": [
{
"node": 104,
"input": "center",
"data": {}
}
]
}
},
"position": [
6690.621219184986,
-1550.9759524067504
],
"name": "bitbybit.vector.vectorXYZ"
},
"107": {
"id": 107,
"data": {
"simpleOutput": true
},
"inputs": {
"entity": {
"connections": [
{
"node": 104,
"output": "result",
"data": {}
}
]
},
"options": {
"connections": [
{
"node": 90,
"output": "result",
"data": {}
}
]
},
"babylonMesh": {
"connections": []
}
},
"outputs": {
"result": {
"connections": []
}
},
"position": [
8320.285537218248,
-808.907008082772
],
"name": "bitbybit.draw.drawAnyAsync"
},
"108": {
"id": 108,
"data": {
"hide": true,
"simpleOutput": true,
"x": -100,
"y": -100,
"z": -100,
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
}
},
"inputs": {
"x": {
"connections": []
},
"y": {
"connections": []
},
"z": {
"connections": []
}
},
"outputs": {
"result": {
"connections": [
{
"node": 103,
"input": "direction",
"data": {}
}
]
}
},
"position": [
-1617.581132227177,
-1567.6966972046307
],
"name": "bitbybit.vector.vectorXYZ"
},
"109": {
"id": 109,
"data": {
"hide": true,
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
}
},
"inputs": {
"shapes": {
"connections": [
{
"node": 110,
"output": "list",
"data": {}
}
]
}
},
"outputs": {
"result": {
"connections": [
{
"node": 89,
"input": "entity",
"data": {}
}
]
}
},
"position": [
8429.101459398054,
-109.91958376454562
],
"name": "bitbybit.occt.shapes.compound.makeCompound"
},
"110": {
"id": 110,
"data": {},
"inputs": {
"listElements": {
"connections": [
{
"node": 99,
"output": "result",
"data": {}
}
]
}
},
"outputs": {
"list": {
"connections": [
{
"node": 109,
"input": "shapes",
"data": {}
}
]
}
},
"position": [
8173.38071793748,
125.10735239829668
],
"name": "createList"
},
"111": {
"id": 111,
"data": {
"number": 0.6
},
"inputs": {
"number": {
"connections": []
}
},
"outputs": {
"result": {
"connections": [
{
"node": 92,
"input": "x",
"data": {}
},
{
"node": 92,
"input": "y",
"data": {}
},
{
"node": 92,
"input": "z",
"data": {}
}
]
}
},
"position": [
5923.09919579524,
-188.26734691159334
],
"name": "bitbybit.math.number"
}
}
} Cloud Plans
Choose Your Plan
Select the perfect plan for your 3D development needs
FREE
€0/forever- Core 3D algorithms
- Unlimited public projects
- Small cloud storage
Get Started
SILVER
€6/month- Complex 3D algorithms
- Private projects
- Mid-size cloud storage
Choose Silver
Most Popular
GOLD
€12/month- Advanced 3D algorithms
- Unlimited private projects
- Large cloud storage
Choose Gold
B2B
ENTERPRISE
Custom pricing- Managed Bitbybit CAD Cloud
- Batch CAD hundreds of files
- Long lasting 3D computations
Learn More
