Script: Drawing edge indexes on the solid

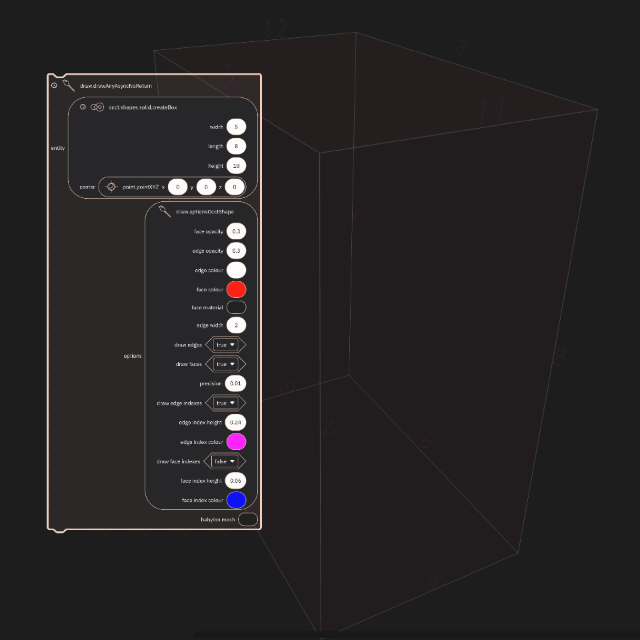

Drawing edge indexes on the solid picture

Type: blockly
Project: Getting Started Demos Blockly
Author: matas
Date Created: Feb 21, 2024, 4:44:16 PM
Last Edit Date: Feb 21, 2024, 7:13:31 PM

Project Information

This project contains demo scripts for Blockly based editor that are used as examples in the "Getting Started" section of the documentation.

View Full Project

Script Code

<xml xmlns="https://developers.google.com/blockly/xml">
 <block type="bitbybit.draw.drawAnyAsyncNoReturn" id="UO^K1-FNciNjT{DsaF2S" x="-1052" y="-1219">
  <value name="Entity">
   <block type="bitbybit.occt.shapes.solid.createBox" id="kAPiNsy.MZ9?u8OMw:F{">
    <value name="Width">
     <block type="math_number" id="ps%ZB=Lg|=n2+WoN88L;">
      <field name="NUM">5</field>
     </block>
    </value>
    <value name="Length">
     <block type="math_number" id="9AIhYC!Bl`qQ=@rx{Hvm">
      <field name="NUM">8</field>
     </block>
    </value>
    <value name="Height">
     <block type="math_number" id="VA?PT:1w_do!EcPH3o`H">
      <field name="NUM">10</field>
     </block>
    </value>
    <value name="Center">
     <block type="bitbybit.point.pointXYZ" id="*C~h4g-MdUu*}L~6n9W;">
      <value name="X">
       <block type="math_number" id="HSM/v}`gGJkJyeK.OYgI">
        <field name="NUM">0</field>
       </block>
      </value>
      <value name="Y">
       <block type="math_number" id="Co1x#c;yRR~3n8]irr}O">
        <field name="NUM">0</field>
       </block>
      </value>
      <value name="Z">
       <block type="math_number" id="n.I1=AL{C-iE4{hZiuRz">
        <field name="NUM">0</field>
       </block>
      </value>
     </block>
    </value>
   </block>
  </value>
  <value name="Options">
   <block type="bitbybit.draw.optionsOcctShape" id="C)_;nd+-yNa2tkQ=f.(j">
    <value name="FaceOpacity">
     <block type="math_number" id="WJFo/9(aQI[,F]A0,{nV">
      <field name="NUM">0.3</field>
     </block>
    </value>
    <value name="EdgeOpacity">
     <block type="math_number" id="2xaR^pUK:5[w$[i*9iEJ">
      <field name="NUM">0.3</field>
     </block>
    </value>
    <value name="EdgeColour">
     <block type="colour_picker" id="1Kbr5PB^wsuJ9`NhR,g(">
      <field name="COLOUR">#ffffff</field>
     </block>
    </value>
    <value name="FaceColour">
     <block type="colour_picker" id="OsgqgBob6so1DhNeQTzf">
      <field name="COLOUR">#ff0000</field>
     </block>
    </value>
    <value name="EdgeWidth">
     <block type="math_number" id="S[;)nHF3kw,0T6.imOS:">
      <field name="NUM">2</field>
     </block>
    </value>
    <value name="DrawEdges">
     <block type="logic_boolean" id="o~*ZYZY;JaHYEi`Cc$Zb">
      <field name="BOOL">TRUE</field>
     </block>
    </value>
    <value name="DrawFaces">
     <block type="logic_boolean" id="Sg:lgzZ4(fSu^x%a#Sol">
      <field name="BOOL">TRUE</field>
     </block>
    </value>
    <value name="Precision">
     <block type="math_number" id=",MwLCD$,blZsB`:NR`m_">
      <field name="NUM">0.01</field>
     </block>
    </value>
    <value name="DrawEdgeIndexes">
     <block type="logic_boolean" id="NWp7H~{+?}[IWv/g{Im,">
      <field name="BOOL">TRUE</field>
     </block>
    </value>
    <value name="EdgeIndexHeight">
     <block type="math_number" id="F5O^[n@Xq)6N-}71wc:_">
      <field name="NUM">0.24</field>
     </block>
    </value>
    <value name="EdgeIndexColour">
     <block type="colour_picker" id="i*VgIX^h~3nr1S.o1-3y">
      <field name="COLOUR">#ff00ff</field>
     </block>
    </value>
    <value name="DrawFaceIndexes">
     <block type="logic_boolean" id="|S~9#-TIn?ed*=]V?*1h">
      <field name="BOOL">FALSE</field>
     </block>
    </value>
    <value name="FaceIndexHeight">
     <block type="math_number" id="G3,mdV2.$_lJl4,Uh/zF">
      <field name="NUM">0.06</field>
     </block>
    </value>
    <value name="FaceIndexColour">
     <block type="colour_picker" id=";7fHMr6^$BfeQ3x(9Xy.">
      <field name="COLOUR">#0000ff</field>
     </block>
    </value>
   </block>
  </value>
 </block>
</xml>
