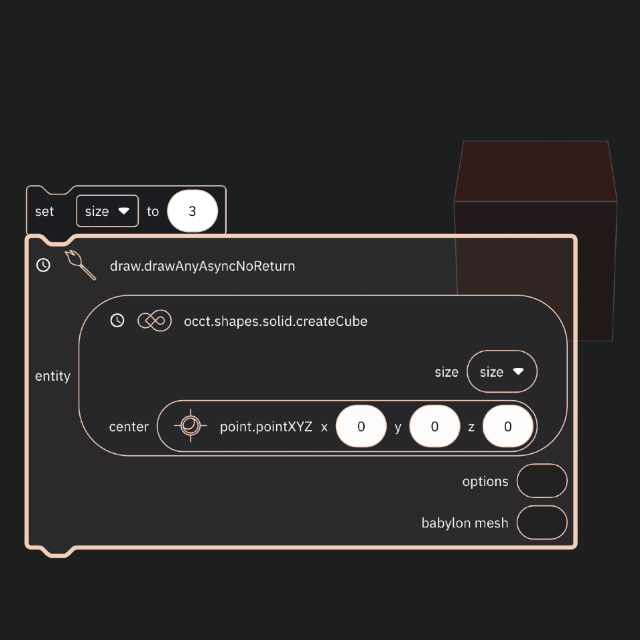

Script: Parametric Cube With Variable

Type: blockly
Project: Getting Started Demos Blockly
Author: matas
Date Created: Jan 25, 2024, 11:23:55 PM
Last Edit Date: Jan 25, 2024, 11:40:33 PM

Project Information

This project contains demo scripts for Blockly based editor that are used as examples in the "Getting Started" section of the documentation.

View Full Project

Script Code

<xml xmlns="https://developers.google.com/blockly/xml">
 <variables>
  <variable id="jVWX.QGY%cHn[hzK+n%A">size</variable>
 </variables>
 <block type="variables_set" id=",0sefL+dW}xV5n^$j+AV" x="-689" y="-1055">
  <field name="VAR" id="jVWX.QGY%cHn[hzK+n%A">size</field>
  <value name="VALUE">
   <block type="math_number" id="V^t{t:]qg=9tg8,9LcC8">
    <field name="NUM">3</field>
   </block>
  </value>
  <next>
   <block type="bitbybit.draw.drawAnyAsyncNoReturn" id="$2#tlK1lUC`%0`Yy=Na.">
    <value name="Entity">
     <block type="bitbybit.occt.shapes.solid.createCube" id="KSbGrF@x?4}%ch#4CC?N">
      <value name="Size">
       <block type="variables_get" id="FoIWtg5M|v!ht|=%;aq;">
        <field name="VAR" id="jVWX.QGY%cHn[hzK+n%A">size</field>
       </block>
      </value>
      <value name="Center">
       <block type="bitbybit.point.pointXYZ" id="jxe4^~!Dm|=.jsOXT%CQ">
        <value name="X">
         <block type="math_number" id="oSJ:g{kkIk/r{Yt$BW:`">
          <field name="NUM">0</field>
         </block>
        </value>
        <value name="Y">
         <block type="math_number" id="sFs?IY5vqosq~TV(Inzo">
          <field name="NUM">0</field>
         </block>
        </value>
        <value name="Z">
         <block type="math_number" id="_-4Thhl)EZH2~HQVQ%]X">
          <field name="NUM">0</field>
         </block>
        </value>
       </block>
      </value>
     </block>
    </value>
   </block>
  </next>
 </block>
</xml>
