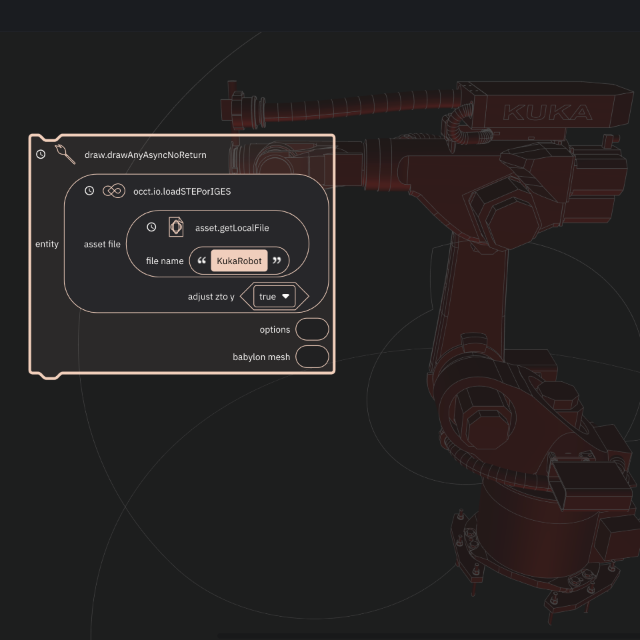

Script: Local Asset STEP Import

Type: blockly
Project: Getting Started Demos Blockly
Author: matas
Date Created: Jan 24, 2024, 7:23:31 PM
Last Edit Date: Feb 22, 2024, 9:14:34 AM

Project Information

This project contains demo scripts for Blockly based editor that are used as examples in the "Getting Started" section of the documentation.

View Full Project

Script Code

<xml xmlns="https://developers.google.com/blockly/xml">
 <block type="bitbybit.draw.drawAnyAsyncNoReturn" id="koZlTGQ3?S4-H{M(DyWV" x="-391" y="-1213">
  <value name="Entity">
   <block type="bitbybit.occt.io.loadSTEPorIGES" id=";(/nc[$tH2rT)}-8wWS;">
    <value name="AssetFile">
     <block type="bitbybit.asset.getLocalFile" id="j,*.UKnGTfHEmlI{jC]g">
      <value name="FileName">
       <block type="text" id="#}0Q_Rl?30_h3w}J3CGM">
        <field name="TEXT">KukaRobot</field>
       </block>
      </value>
     </block>
    </value>
    <value name="AdjustZtoY">
     <block type="logic_boolean" id="rL^0pucdlW4$^q-z*LPg">
      <field name="BOOL">TRUE</field>
     </block>
    </value>
   </block>
  </value>
 </block>
</xml>
