Script: Variable Radius Fillet Rete Example
- Type
rete- Project
- Variable Radius Fillets
- Author
- bitbybit
- Date Created
- Mar 12, 2024, 11:43:26 AM
- Last Edit Date
- Aug 6, 2024, 8:28:17 PM
Project Information

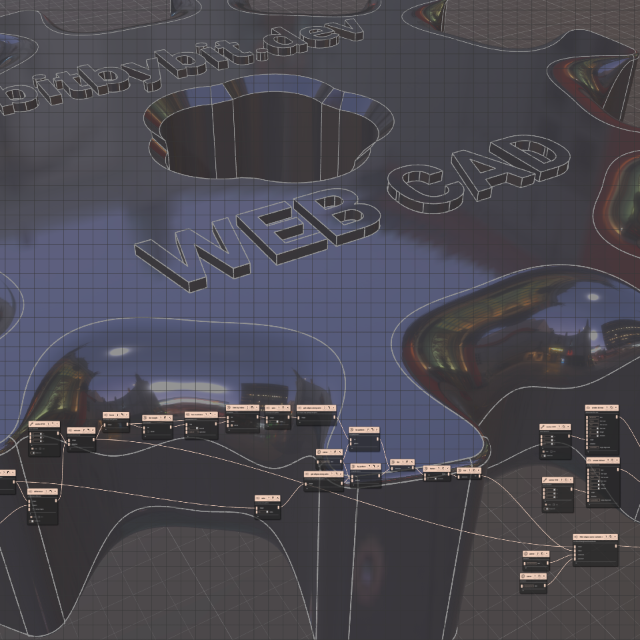

This project demonstrates how you can create variable radius fillets by using latest release algorithms.
Script Code
{
"id": "rete-v2-json",
"nodes": {
"17d8f0b56e29ede2": {
"id": "17d8f0b56e29ede2",
"name": "bitbybit.occt.shapes.wire.createCircleWire",
"async": true,
"drawable": true,
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
},
"radius": 10,
"center": [
0,
0,
0
],
"direction": [
0,
1,
0
]
},
"inputs": {},
"position": [
-764.3031005859375,
660.5866394042969
]
},
"1ab0ae8504be40c0": {
"id": "1ab0ae8504be40c0",
"name": "bitbybit.occt.shapes.wire.divideWireByParamsToPoints",
"async": true,
"drawable": true,
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 1
},
"nrOfDivisions": 10,
"removeStartPoint": false,
"removeEndPoint": true
},
"inputs": {
"shape": {
"connections": [
{
"node": "17d8f0b56e29ede2",
"output": "result",
"data": {}
}
]
}
},
"position": [
-389.4554443359375,
733.8053894042969
]
},
"b31f503965cd5a19": {
"id": "b31f503965cd5a19",
"name": "bitbybit.occt.shapes.face.createCircleFace",
"async": true,
"drawable": true,
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
},
"radius": 2,
"center": [
0,
0,
0
],
"direction": [
0,
1,
0
]
},
"inputs": {
"center": {
"connections": [
{
"node": "7986daf0c8ecff41",
"output": "item",
"data": {}
}
]
}
},
"position": [
363.7672119140625,
785.9421081542969
]
},
"7986daf0c8ecff41": {
"id": "7986daf0c8ecff41",
"name": "bitbybit.lists.passThrough",
"data": {},
"inputs": {
"item": {
"connections": [
{
"node": "1ab0ae8504be40c0",
"output": "result",
"data": {}
}
]
}
},
"position": [
18.7086181640625,
826.6999206542969
]
},
"6660023f97e4dd4e": {
"id": "6660023f97e4dd4e",
"name": "bitbybit.occt.shapes.face.createFaceFromWire",
"async": true,
"drawable": true,
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
},
"planar": true
},
"inputs": {
"shape": {
"connections": [
{
"node": "17d8f0b56e29ede2",
"output": "result",
"data": {}
}
]
}
},
"position": [
4.883463690510212,
350.2128902249829
]
},
"496df64aa1391ae0": {
"id": "496df64aa1391ae0",
"name": "bitbybit.occt.booleans.difference",
"async": true,
"drawable": true,
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
},
"keepEdges": false
},
"inputs": {
"shape": {
"connections": [
{
"node": "6660023f97e4dd4e",
"output": "result",
"data": {}
}
]
},
"shapes": {
"connections": [
{
"node": "8d36b40a8235689c",
"output": "list",
"data": {}
}
]
}
},
"position": [
1097.7550232363185,
621.8977542754228
]
},
"8d36b40a8235689c": {
"id": "8d36b40a8235689c",
"name": "bitbybit.lists.createList",
"data": {},
"inputs": {
"listElements": {
"connections": [
{
"node": "b31f503965cd5a19",
"output": "result",
"data": {}
}
]
}
},
"position": [
748.5891678514611,
791.7900126148625
]
},
"ad88dec11f21a092": {
"id": "ad88dec11f21a092",
"name": "bitbybit.occt.shapes.wire.getWire",
"async": true,
"drawable": true,
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
},
"index": 0
},
"inputs": {
"shape": {
"connections": [
{
"node": "496df64aa1391ae0",
"output": "result",
"data": {}
}
]
}
},
"position": [
1507.6736686953334,
688.2137000306097
]
},
"6233aed8fc838fef": {
"id": "6233aed8fc838fef",
"name": "bitbybit.occt.fillets.fillet2d",
"async": true,
"drawable": true,
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
},
"radius": 0.4
},
"inputs": {
"shape": {
"connections": [
{
"node": "ad88dec11f21a092",
"output": "result",
"data": {}
}
]
}
},
"position": [
1853.1371147286059,
651.4601111741238
]
},
"092cbed3770a5454": {
"id": "092cbed3770a5454",
"name": "bitbybit.occt.operations.extrude",
"async": true,
"drawable": true,
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
},
"direction": [
0,
1,
0
]
},
"inputs": {
"direction": {
"connections": [
{
"node": "161b57fd309e7c3b",
"output": "result",
"data": {}
}
]
},
"shape": {
"connections": [
{
"node": "5244a84ce9712e4c",
"output": "result",
"data": {}
}
]
}
},
"position": [
3172.048865525746,
268.7206450984949
]
},
"030588abaeb3fd31": {
"id": "030588abaeb3fd31",
"name": "bitbybit.occt.shapes.face.createFaceFromWire",
"async": true,
"drawable": true,
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
},
"planar": true
},
"inputs": {
"shape": {
"connections": [
{
"node": "6233aed8fc838fef",
"output": "result",
"data": {}
}
]
}
},
"position": [
2313.0057038879536,
693.9496941980877
]
},
"57303db5df03474c": {
"id": "57303db5df03474c",
"name": "bitbybit.lists.getByPattern",
"async": false,
"drawable": false,
"data": {
"genericNodeData": {
"hide": false,
"oneOnOne": false,
"flatten": 0
},
"pattern": [
true,
true,
false
]
},
"inputs": {
"list": {
"connections": [
{
"node": "a5546a35d2addfae",
"output": "result",
"data": {}
}
]
},
"pattern": {
"connections": [
{
"node": "8703cb1a8107720f",
"output": "result",
"data": {}
}
]
}
},
"position": [
6017.673890121047,
631.149823051028
]
},
"a5546a35d2addfae": {
"id": "a5546a35d2addfae",
"name": "bitbybit.occt.shapes.edge.getEdgesAlongWire",
"async": true,
"drawable": true,
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
}
},
"inputs": {
"shape": {
"connections": [
{
"node": "68a3542cdbabb83c",
"output": "result",
"data": {}
}
]
}
},
"position": [
5551.098432203211,
706.9443492880005
]
},
"68a3542cdbabb83c": {
"id": "68a3542cdbabb83c",
"name": "bitbybit.occt.shapes.wire.getWire",
"async": true,
"drawable": true,
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
},
"index": 0
},
"inputs": {
"shape": {
"connections": [
{
"node": "030588abaeb3fd31",
"output": "result",
"data": {}
}
]
}
},
"position": [
5057.551553238045,
949.3032828589517
]
},
"8703cb1a8107720f": {
"id": "8703cb1a8107720f",
"name": "bitbybit.json.parse",
"async": false,
"drawable": false,
"data": {
"genericNodeData": {
"hide": false,
"oneOnOne": false,
"flatten": 0
},
"text": "[true, false, false, false]"
},
"inputs": {},
"position": [
5671.858139708035,
486.4648312453794
]
},
"5626d379c2fe621c": {
"id": "5626d379c2fe621c",
"name": "bitbybit.occt.fillets.filletEdgesSameVariableRadius",
"async": true,
"drawable": true,
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
}
},
"inputs": {
"shape": {
"connections": [
{
"node": "092cbed3770a5454",
"output": "result",
"data": {}
}
]
},
"paramsU": {
"connections": [
{
"node": "b64b7713c8557f50",
"output": "result",
"data": {}
}
]
},
"radiusList": {
"connections": [
{
"node": "f1145ac97d7c3477",
"output": "result",
"data": {}
}
]
},
"edges": {
"connections": [
{
"node": "7adddab7f62d817c",
"output": "list",
"data": {}
}
]
}
},
"position": [
8253.470667444739,
1337.892118765149
]
},
"f1145ac97d7c3477": {
"id": "f1145ac97d7c3477",
"name": "bitbybit.json.parse",
"async": false,
"drawable": false,
"data": {
"genericNodeData": {
"hide": false,
"oneOnOne": false,
"flatten": 0
},
"text": "[0.1,1.3,1.2,1.3,0.1]"
},
"inputs": {},
"position": [
7749.132892262525,
1507.2299706466856
]
},
"b64b7713c8557f50": {
"id": "b64b7713c8557f50",
"name": "bitbybit.json.parse",
"async": false,
"drawable": false,
"data": {
"genericNodeData": {
"hide": false,
"oneOnOne": false,
"flatten": 0
},
"text": "[0.1, 0.3,0.5,0.7, 0.9]"
},
"inputs": {},
"position": [
7720.841472575566,
1733.107187252156
]
},
"e0746e72637215d3": {
"id": "e0746e72637215d3",
"name": "bitbybit.babylon.scene.enableSkybox",
"async": false,
"drawable": false,
"data": {
"genericNodeData": {
"hide": false,
"oneOnOne": false,
"flatten": 0
},
"skybox": "city",
"size": 1000,
"blur": 0.5,
"environmentIntensity": 0.7
},
"inputs": {},
"position": [
-791.9948909865094,
1613.605029621447
]
},
"e1943ae900342c28": {
"id": "e1943ae900342c28",
"name": "bitbybit.babylon.material.pbrMetallicRoughness.create",
"async": false,
"drawable": false,
"data": {
"genericNodeData": {
"hide": false,
"oneOnOne": false,
"flatten": 0
},
"name": "Custom Material",
"baseColor": "#393947",
"emissiveColor": "#000000",
"metallic": 0.9,
"roughness": 0.1,
"alpha": 1,
"backFaceCulling": false,
"zOffset": 2
},
"inputs": {},
"position": [
9945.23262160967,
1147.239630647563
]
},
"7026a28a07a9f886": {
"id": "7026a28a07a9f886",
"name": "bitbybit.draw.optionsOcctShapeMaterial",
"async": false,
"drawable": false,
"data": {
"genericNodeData": {
"hide": false,
"oneOnOne": false,
"flatten": 0
},
"precision": 0.003,
"drawEdges": true,
"edgeColour": "#ffffff",
"edgeWidth": 2
},
"inputs": {
"faceMaterial": {
"connections": [
{
"node": "e1943ae900342c28",
"output": "result",
"data": {}
}
]
}
},
"position": [
10343.506399115948,
1074.0170752773429
]
},
"161b57fd309e7c3b": {
"id": "161b57fd309e7c3b",
"name": "bitbybit.vector.vectorXYZ",
"async": false,
"drawable": true,
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
},
"x": 0,
"y": 4,
"z": 0
},
"inputs": {},
"position": [
2784.7038459372584,
205.04999044806965
]
},
"820a8a1937d4678d": {
"id": "820a8a1937d4678d",
"name": "bitbybit.lists.createList",
"data": {},
"inputs": {
"listElements": {
"connections": [
{
"node": "57303db5df03474c",
"output": "result",
"data": {}
},
{
"node": "80f00f4062a6fa27",
"output": "result",
"data": {}
}
]
}
},
"position": [
6416.792046510773,
587.2993135145988
]
},
"20f5814ef70f1953": {
"id": "20f5814ef70f1953",
"name": "bitbybit.lists.flatten",
"data": {
"nrLevels": 2
},
"inputs": {
"list": {
"connections": [
{
"node": "820a8a1937d4678d",
"output": "list",
"data": {}
}
]
}
},
"position": [
6748.4219291528725,
652.3610337123984
]
},
"7adddab7f62d817c": {
"id": "7adddab7f62d817c",
"name": "bitbybit.lists.createList",
"data": {},
"inputs": {
"listElements": {
"connections": [
{
"node": "20f5814ef70f1953",
"output": "result",
"data": {}
}
]
}
},
"position": [
7086.5083918232995,
671.569220593341
]
},
"ee9c5cd58e50eb47": {
"id": "ee9c5cd58e50eb47",
"name": "bitbybit.occt.shapes.edge.getEdgesAlongWire",
"async": true,
"drawable": true,
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
}
},
"inputs": {
"shape": {
"connections": [
{
"node": "cf1301a7fd0f9c6c",
"output": "result",
"data": {}
}
]
}
},
"position": [
5477.559223829409,
42.85275540212122
]
},
"80f00f4062a6fa27": {
"id": "80f00f4062a6fa27",
"name": "bitbybit.lists.getByPattern",
"async": false,
"drawable": false,
"data": {
"genericNodeData": {
"hide": false,
"oneOnOne": false,
"flatten": 0
},
"pattern": [
true,
true,
false
]
},
"inputs": {
"pattern": {
"connections": [
{
"node": "8703cb1a8107720f",
"output": "result",
"data": {}
}
]
},
"list": {
"connections": [
{
"node": "ee9c5cd58e50eb47",
"output": "result",
"data": {}
}
]
}
},
"position": [
6002.417154461244,
262.7614827772473
]
},
"803b4f6c76e02220": {
"id": "803b4f6c76e02220",
"name": "bitbybit.occt.shapes.face.getFaces",
"async": true,
"drawable": true,
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
}
},
"inputs": {
"shape": {
"connections": [
{
"node": "092cbed3770a5454",
"output": "result",
"data": {}
}
]
}
},
"position": [
3530.2378298299764,
114.12596772622209
]
},
"08221496566d7a0e": {
"id": "08221496566d7a0e",
"name": "bitbybit.lists.listLength",
"async": false,
"drawable": false,
"data": {
"genericNodeData": {
"hide": false,
"oneOnOne": false,
"flatten": 0
},
"clone": false
},
"inputs": {
"list": {
"connections": [
{
"node": "803b4f6c76e02220",
"output": "result",
"data": {}
}
]
}
},
"position": [
3926.551495962836,
143.06551919087937
]
},
"9f8a95fb5758e20d": {
"id": "9f8a95fb5758e20d",
"name": "bitbybit.math.twoNrOperation",
"async": false,
"drawable": false,
"data": {
"genericNodeData": {
"hide": false,
"oneOnOne": false,
"flatten": 0
},
"first": 1,
"second": 1,
"operation": "subtract"
},
"inputs": {
"first": {
"connections": [
{
"node": "08221496566d7a0e",
"output": "result",
"data": {}
}
]
}
},
"position": [
4353.030521126785,
110.08874324421515
]
},
"35e3bf7f7975d3ab": {
"id": "35e3bf7f7975d3ab",
"name": "bitbybit.lists.getItem",
"async": false,
"drawable": false,
"data": {
"genericNodeData": {
"hide": false,
"oneOnOne": false,
"flatten": 0
},
"index": 0,
"clone": true
},
"inputs": {
"list": {
"connections": [
{
"node": "803b4f6c76e02220",
"output": "result",
"data": {}
}
]
},
"index": {
"connections": [
{
"node": "9f8a95fb5758e20d",
"output": "result",
"data": {}
}
]
}
},
"position": [
4767.933049362163,
39.94147142849002
]
},
"cf1301a7fd0f9c6c": {
"id": "cf1301a7fd0f9c6c",
"name": "bitbybit.occt.shapes.wire.getWire",
"async": true,
"drawable": true,
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
},
"index": 0
},
"inputs": {
"shape": {
"connections": [
{
"node": "35e3bf7f7975d3ab",
"output": "result",
"data": {}
}
]
}
},
"position": [
5159.822692277663,
43.39615389540526
]
},
"6d86810816bd8c17": {
"id": "6d86810816bd8c17",
"name": "bitbybit.draw.drawAnyAsync",
"async": true,
"drawable": false,
"data": {
"genericNodeData": {
"hide": false,
"oneOnOne": false,
"flatten": 0
}
},
"inputs": {
"options": {
"connections": [
{
"node": "7026a28a07a9f886",
"output": "result",
"data": {}
}
]
},
"entity": {
"connections": [
{
"node": "687b06d7c492cf9f",
"output": "result",
"data": {}
}
]
}
},
"position": [
10912.870563450537,
792.0041020981217
]
},
"1e2c9a0363925cbe": {
"id": "1e2c9a0363925cbe",
"name": "bitbybit.draw.drawGridMesh",
"async": false,
"drawable": false,
"data": {
"genericNodeData": {
"hide": false,
"oneOnOne": false,
"flatten": 0
},
"width": 400,
"height": 400,
"subdivisions": 10,
"majorUnitFrequency": 10,
"minorUnitVisibility": 0.45,
"gridRatio": 0.5,
"opacity": 0.5,
"backFaceCulling": false,
"mainColor": "#ffffff",
"secondaryColor": "#ffffff"
},
"inputs": {},
"position": [
-414.59904044352606,
1600.6752720224
]
},
"27219e39b60fad34": {
"id": "27219e39b60fad34",
"name": "bitbybit.babylon.scene.drawDirectionalLight",
"async": false,
"drawable": false,
"data": {
"genericNodeData": {
"hide": false,
"oneOnOne": false,
"flatten": 0
},
"direction": [
-100,
-100,
-100
],
"intensity": 3,
"diffuse": "#ffffff",
"specular": "#ffffff",
"shadowGeneratorMapSize": 1024,
"enableShadows": true,
"shadowDarkness": 0
},
"inputs": {},
"position": [
-5.543787940057385,
1736.7054090372303
]
},
"dad664e07cab360b": {
"id": "dad664e07cab360b",
"name": "bitbybit.advanced.text3d.create",
"async": true,
"drawable": true,
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
},
"text": "bitbybit.dev",
"fontType": "Roboto",
"fontVariant": "Bold",
"fontSize": 1.8,
"height": 0.2,
"rotation": 0,
"origin": [
0,
0,
0
],
"direction": [
0,
1,
0
],
"originAlignment": "centerMiddle"
},
"inputs": {
"origin": {
"connections": [
{
"node": "dca6c88916e41f8b",
"output": "result",
"data": {}
}
]
}
},
"position": [
8375.678792323308,
40.74465036670003
]
},
"dca6c88916e41f8b": {
"id": "dca6c88916e41f8b",
"name": "bitbybit.vector.vectorXYZ",
"async": false,
"drawable": true,
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
},
"x": 0,
"y": 4,
"z": -4
},
"inputs": {},
"position": [
7918.238818362392,
233.12029333128072
]
},
"bd53a9d5d9b5287c": {
"id": "bd53a9d5d9b5287c",
"name": "bitbybit.advanced.text3d.getCompoundShape",
"async": false,
"drawable": true,
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
}
},
"inputs": {
"model": {
"connections": [
{
"node": "dad664e07cab360b",
"output": "result",
"data": {}
}
]
}
},
"position": [
9086.454162603068,
533.3703593785017
]
},
"91274de5f93fcf54": {
"id": "91274de5f93fcf54",
"name": "bitbybit.vector.vectorXYZ",
"async": false,
"drawable": true,
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
},
"x": 0,
"y": 4,
"z": 4
},
"inputs": {},
"position": [
7943.0808703133025,
766.6920306218535
]
},
"f11c3598c5db688a": {
"id": "f11c3598c5db688a",
"name": "bitbybit.advanced.text3d.create",
"async": true,
"drawable": true,
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
},
"text": "WEB CAD",
"fontType": "Roboto",
"fontVariant": "Bold",
"fontSize": 2,
"height": 0.2,
"rotation": 0,
"origin": [
0,
0,
0
],
"direction": [
0,
1,
0
],
"originAlignment": "centerMiddle"
},
"inputs": {
"origin": {
"connections": [
{
"node": "91274de5f93fcf54",
"output": "result",
"data": {}
}
]
}
},
"position": [
8386.979439615623,
569.4334045431249
]
},
"5244a84ce9712e4c": {
"id": "5244a84ce9712e4c",
"name": "bitbybit.occt.booleans.difference",
"async": true,
"drawable": true,
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
},
"keepEdges": false
},
"inputs": {
"shapes": {
"connections": [
{
"node": "1a1e2fffba420776",
"output": "list",
"data": {}
}
]
},
"shape": {
"connections": [
{
"node": "030588abaeb3fd31",
"output": "result",
"data": {}
}
]
}
},
"position": [
2772.463589644358,
881.655847535417
]
},
"4ce57ed3088f1594": {
"id": "4ce57ed3088f1594",
"name": "bitbybit.occt.shapes.face.createCircleFace",
"async": true,
"drawable": true,
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
},
"radius": 1.2,
"center": [
0,
0,
0
],
"direction": [
0,
1,
0
]
},
"inputs": {
"center": {
"connections": [
{
"node": "752548cecf134dff",
"output": "item",
"data": {}
}
]
}
},
"position": [
1587.109012412342,
1314.457095616584
]
},
"a263bef929af4def": {
"id": "a263bef929af4def",
"name": "bitbybit.occt.shapes.wire.createCircleWire",
"async": true,
"drawable": true,
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
},
"radius": 1.2,
"center": [
0,
0,
0
],
"direction": [
0,
1,
0
]
},
"inputs": {},
"position": [
371.9642036626137,
1286.4562074934286
]
},
"ba6be9e1170ed7fd": {
"id": "ba6be9e1170ed7fd",
"name": "bitbybit.occt.shapes.wire.divideWireByParamsToPoints",
"async": true,
"drawable": true,
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 1
},
"nrOfDivisions": 5,
"removeStartPoint": false,
"removeEndPoint": true
},
"inputs": {
"shape": {
"connections": [
{
"node": "a263bef929af4def",
"output": "result",
"data": {}
}
]
}
},
"position": [
773.8227280396106,
1339.5308525069888
]
},
"752548cecf134dff": {
"id": "752548cecf134dff",
"name": "bitbybit.lists.passThrough",
"data": {},
"inputs": {
"item": {
"connections": [
{
"node": "ba6be9e1170ed7fd",
"output": "result",
"data": {}
}
]
}
},
"position": [
1230.567014092418,
1390.2671229653456
]
},
"1a1e2fffba420776": {
"id": "1a1e2fffba420776",
"name": "bitbybit.lists.createList",
"data": {},
"inputs": {
"listElements": {
"connections": [
{
"node": "4ce57ed3088f1594",
"output": "result",
"data": {}
}
]
}
},
"position": [
1982.596671069358,
1325.2165445363762
]
},
"2955f7f979d606cf": {
"id": "2955f7f979d606cf",
"name": "bitbybit.occt.fillets.chamferEdges",
"async": true,
"drawable": true,
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
},
"distance": 0.3
},
"inputs": {
"shape": {
"connections": [
{
"node": "5626d379c2fe621c",
"output": "result",
"data": {}
}
]
}
},
"position": [
9085.261330919646,
1354.824822781705
]
},
"687b06d7c492cf9f": {
"id": "687b06d7c492cf9f",
"name": "bitbybit.occt.shapes.compound.makeCompound",
"async": true,
"drawable": true,
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
}
},
"inputs": {
"shapes": {
"connections": [
{
"node": "34d07f4c1aac551d",
"output": "list",
"data": {}
}
]
}
},
"position": [
10034.070045929137,
656.2669483169293
]
},
"34d07f4c1aac551d": {
"id": "34d07f4c1aac551d",
"name": "bitbybit.lists.createList",
"data": {},
"inputs": {
"listElements": {
"connections": [
{
"node": "bd53a9d5d9b5287c",
"output": "result",
"data": {}
},
{
"node": "6fe3a06a880a87d3",
"output": "result",
"data": {}
},
{
"node": "2955f7f979d606cf",
"output": "result",
"data": {}
}
]
}
},
"position": [
9709.77203163195,
696.5788602663482
]
},
"6fe3a06a880a87d3": {
"id": "6fe3a06a880a87d3",
"name": "bitbybit.advanced.text3d.getCompoundShape",
"async": false,
"drawable": true,
"data": {
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
}
},
"inputs": {
"model": {
"connections": [
{
"node": "f11c3598c5db688a",
"output": "result",
"data": {}
}
]
}
},
"position": [
9090.070904294022,
784.0961658626884
]
}
}
} Cloud Plans
Choose Your Plan
Select the perfect plan for your 3D development needs
FREE
€0/forever- Core 3D algorithms
- Unlimited public projects
- Small cloud storage
Get Started
SILVER
€6/month- Complex 3D algorithms
- Private projects
- Mid-size cloud storage
Choose Silver
Most Popular
GOLD
€12/month- Advanced 3D algorithms
- Unlimited private projects
- Large cloud storage
Choose Gold
B2B
ENTERPRISE
Custom pricing- Managed Bitbybit CAD Cloud
- Batch CAD hundreds of files
- Long lasting 3D computations
Learn More
