Script: Freeform Decorative Vase

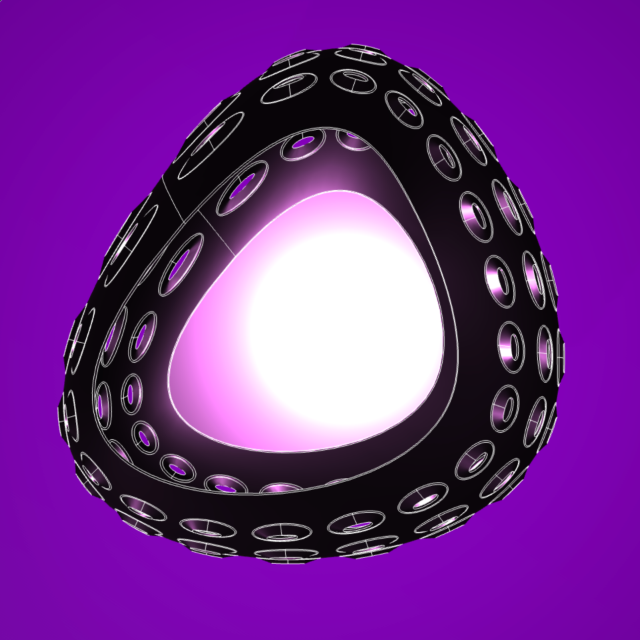

Freeform Decorative Vase picture
Type
Blockly logo indicatorblockly
Author
matas
Date Created
Dec 9, 2022, 5:09:16 PM
Last Edit Date
Dec 5, 2023, 5:44:01 PM
Edit Script Preview

Project Information

This project creates a double curved parametric model by lofting surface from interpolated periodic bspline curves. By using our new OpenCascade (OCCT) components we modelled the solid geometry. This object can thus be exported and 3D printed. This small example demonstrates how to draw 2D curves on 3D double curved surfaces, split edges, loft and sew faces to form shells and thick solid objects.

View Full Project

Script Code

<xml xmlns="https://developers.google.com/blockly/xml">
 <variables>
  <variable id="0dvp3:dj5bz%K/6-t#s+">face</variable>
  <variable id="TC`ZX(-AgXb{8E~@6^u/">uvParams</variable>
  <variable id="2^Q-N!%M(5QY*3,SjZjY">srf</variable>
  <variable id="-?PFj;sqp]dunhz|[/PQ">ellipseMinor</variable>
  <variable id=")D|z+SUVIRkTL.Wg(m]~">ellipseMajor</variable>
  <variable id="#|0hz9A,rSrp.T]4,1Hk">ellipsesOnSurface</variable>
  <variable id="Hc+aQ,@M,j{Qx2DhN*W:">curve1</variable>
  <variable id="4td}#E)?F*lX^:2WOINn">i</variable>
  <variable id="7*^v?Y;^3SV2-Q172p$h">curve2</variable>
  <variable id="e/$DaRE5=XZ{x#TU~wUs">curve3</variable>
  <variable id="3ZsSD-.`eXDI9gfdsbxI">face1</variable>
  <variable id="85.A(S/.oO4yqw%tD^8|">face2</variable>
  <variable id="Jb}OqCmeVh~H-cDIX%{e">uvParams1</variable>
  <variable id="O2DS:5q7f[YJK*wE`T[P">uvParams2</variable>
  <variable id="DKAISb%*M~+$/_,:ECDc">ellipsesOnSurface1</variable>
  <variable id="6$-:{2?d3;2Ey92n.xr4">ellipsesOnSurface2</variable>
  <variable id="6Uobshv).d$BLqg6z[/f">toSew</variable>
  <variable id="APfT.`+4@$eBae(4%o(O">j</variable>
  <variable id="m!J4oi0a0k5gLjuS2aU2">e1</variable>
  <variable id="FGrDwhNZ]G{|YJ-Wwq5S">e2</variable>
  <variable id="EW(,TM7|IXP0/Ba}#T9.">loft</variable>
 </variables>
 <block type="bitbybit.babylon.scene.activateCamera" id="X8iymOoyK9~n6H=)%4ht" x="-911" y="-174">
  <value name="Camera">
   <block type="bitbybit.babylon.camera.arcRotate.create" id="RH%XM+ow_lP`-RzJrWT9">
    <value name="Alpha">
     <block type="math_number" id="91dStGd{KX44keVy(2b#">
      <field name="NUM">42</field>
     </block>
    </value>
    <value name="Beta">
     <block type="math_number" id="KRGZ{*0_x[.ItaJ$d+6q">
      <field name="NUM">1.3</field>
     </block>
    </value>
    <value name="Radius">
     <block type="math_number" id="YJT?-y2nT|=qO)tEJV8(">
      <field name="NUM">50</field>
     </block>
    </value>
    <value name="Target">
     <block type="bitbybit.point.pointXYZ" id="-,+o3+1urZkZ@8fii[b(">
      <value name="X">
       <block type="math_number" id="0U9f*QzBxBIE#[FjBt@P">
        <field name="NUM">0</field>
       </block>
      </value>
      <value name="Y">
       <block type="math_number" id="Wk21Fn8BC*V59{WK-#Wl">
        <field name="NUM">7</field>
       </block>
      </value>
      <value name="Z">
       <block type="math_number" id="Z*iAC$|qp3YY2ANdPXN^">
        <field name="NUM">0</field>
       </block>
      </value>
     </block>
    </value>
   </block>
  </value>
  <next>
   <block type="bitbybit.babylon.scene.drawDirectionalLightNoReturn" id="Nm~%j6VYLM4Z=GUXd3#!">
    <value name="Direction">
     <block type="bitbybit.point.pointXYZ" id="YzF?Hhhx11H+BUB%1;Mc">
      <value name="X">
       <block type="math_number" id="m%H)3NXjCZg=XSaXPKfX">
        <field name="NUM">-100</field>
       </block>
      </value>
      <value name="Y">
       <block type="math_number" id="DW^%T,M{3NQ$fp?UHLh.">
        <field name="NUM">-50</field>
       </block>
      </value>
      <value name="Z">
       <block type="math_number" id="HAcpBHbR/(fgOR+4~I=J">
        <field name="NUM">100</field>
       </block>
      </value>
     </block>
    </value>
    <value name="Intensity">
     <block type="math_number" id="#|]KYHVOfR{Y}iR0i;J`">
      <field name="NUM">0.5</field>
     </block>
    </value>
    <value name="Diffuse">
     <block type="colour_picker" id="lh)RQ)LPhtK(`#!:eym=">
      <field name="COLOUR">#ffffff</field>
     </block>
    </value>
    <value name="Specular">
     <block type="colour_picker" id="Is/rX@VuX(V!C)SRm[g5">
      <field name="COLOUR">#ffffff</field>
     </block>
    </value>
    <value name="ShadowGeneratorMapSize">
     <block type="math_number" id="9X_[BA!=fdpA=|CxMO[Y">
      <field name="NUM">1024</field>
     </block>
    </value>
    <value name="EnableShadows">
     <block type="logic_boolean" id="+I-7c[xvi7OA3t^_7z@1">
      <field name="BOOL">TRUE</field>
     </block>
    </value>
    <value name="ShadowDarkness">
     <block type="math_number" id="ynp8DBtwZZ}-^DAH[qTW">
      <field name="NUM">0</field>
     </block>
    </value>
    <next>
     <block type="variables_set" id="{(9ZKNhx;i`F/=/HdbXv">
      <field name="VAR" id="Hc+aQ,@M,j{Qx2DhN*W:">curve1</field>
      <value name="VALUE">
       <block type="bitbybit.occt.shapes.wire.interpolatePoints" id="f+wMy$*ZJOs~]L0_zpnb">
        <value name="Points">
         <block type="lists_create_with" id=",:^flO%|A@|XAK+cGqjk">
          <mutation items="4">
          </mutation>
          <value name="ADD0">
           <block type="bitbybit.point.pointXYZ" id="e0_V^RDqE!y;{6FC=}^s">
            <value name="X">
             <block type="math_number" id="r-Q~d?WU4gfT/3c~+NUg">
              <field name="NUM">-10</field>
             </block>
            </value>
            <value name="Y">
             <block type="math_number" id="AeB08!CEMD-B%(*at;KD">
              <field name="NUM">0</field>
             </block>
            </value>
            <value name="Z">
             <block type="math_number" id="iXT;*BR[W$U3p,[SI37l">
              <field name="NUM">-10</field>
             </block>
            </value>
           </block>
          </value>
          <value name="ADD1">
           <block type="bitbybit.point.pointXYZ" id="LRudbD$CyXNbb0xg`N$V">
            <value name="X">
             <block type="math_number" id="17,#it,H142|o]4{EDw}">
              <field name="NUM">10</field>
             </block>
            </value>
            <value name="Y">
             <block type="math_number" id="3^:._.Y6ktKtKc{]MHi.">
              <field name="NUM">0</field>
             </block>
            </value>
            <value name="Z">
             <block type="math_number" id="K9aH}zcPn-2IG|,yBUBy">
              <field name="NUM">-18</field>
             </block>
            </value>
           </block>
          </value>
          <value name="ADD2">
           <block type="bitbybit.point.pointXYZ" id="V5(LR;gtr1LI=fEp=C?Y">
            <value name="X">
             <block type="math_number" id="i[}PfPw_=Pl@`hLfpUa_">
              <field name="NUM">10</field>
             </block>
            </value>
            <value name="Y">
             <block type="math_number" id="0am8##S^CU2T5+6f+09;">
              <field name="NUM">0</field>
             </block>
            </value>
            <value name="Z">
             <block type="math_number" id=",V9Jh%GIz%#L:gT!/be$">
              <field name="NUM">10</field>
             </block>
            </value>
           </block>
          </value>
          <value name="ADD3">
           <block type="bitbybit.point.pointXYZ" id="Cg_A(EVmpba9e5^SlFY9">
            <value name="X">
             <block type="math_number" id="vc!8Y$@w;HoQi9Uy~mc%">
              <field name="NUM">-10</field>
             </block>
            </value>
            <value name="Y">
             <block type="math_number" id="br)fhU=1e6-raM653P?!">
              <field name="NUM">0</field>
             </block>
            </value>
            <value name="Z">
             <block type="math_number" id="|Hu9SL+oMBsu2{VelN]B">
              <field name="NUM">10</field>
             </block>
            </value>
           </block>
          </value>
         </block>
        </value>
        <value name="Periodic">
         <block type="logic_boolean" id="X#h@[Cl16:7=Q8n@tY+{">
          <field name="BOOL">TRUE</field>
         </block>
        </value>
        <value name="Tolerance">
         <block type="math_number" id="l[:b+{SpgZuaZX!V4u@_">
          <field name="NUM">1e-7</field>
         </block>
        </value>
       </block>
      </value>
      <next>
       <block type="variables_set" id="{t#D/_G{oyr~+(T_H1Qp">
        <field name="VAR" id="7*^v?Y;^3SV2-Q172p$h">curve2</field>
        <value name="VALUE">
         <block type="bitbybit.occt.shapes.wire.interpolatePoints" id="8yqHp-|Z2okR7aZ[Acej">
          <value name="Points">
           <block type="lists_create_with" id="2gaDCjy}q^1r1PQ-M7UG">
            <mutation items="4">
            </mutation>
            <value name="ADD0">
             <block type="bitbybit.point.pointXYZ" id="?/*7xy/Zwfer2s.70dQa">
              <value name="X">
               <block type="math_number" id="Rqkq2isCFYdp=1OJ]u8-">
                <field name="NUM">-18</field>
               </block>
              </value>
              <value name="Y">
               <block type="math_number" id="(_y[W9T.PB|FgqZ%-oD/">
                <field name="NUM">6</field>
               </block>
              </value>
              <value name="Z">
               <block type="math_number" id="/7)|Ll#/T`hJL7$A,PC[">
                <field name="NUM">-14</field>
               </block>
              </value>
             </block>
            </value>
            <value name="ADD1">
             <block type="bitbybit.point.pointXYZ" id="J`fieMeDfX5bG,hX6x+j">
              <value name="X">
               <block type="math_number" id="F67XzH9|jSe!gwn9luSW">
                <field name="NUM">18</field>
               </block>
              </value>
              <value name="Y">
               <block type="math_number" id="8VQDHILZ+BR+!6XtCG0=">
                <field name="NUM">6</field>
               </block>
              </value>
              <value name="Z">
               <block type="math_number" id="g^+*BTLW:iGu;:n(/.)z">
                <field name="NUM">-22</field>
               </block>
              </value>
             </block>
            </value>
            <value name="ADD2">
             <block type="bitbybit.point.pointXYZ" id="yw}}$[0hw)7,=uvOJl$P">
              <value name="X">
               <block type="math_number" id="*BCU!*BF8`Nq-cd)Ro!0">
                <field name="NUM">18</field>
               </block>
              </value>
              <value name="Y">
               <block type="math_number" id=".A4wDq`bjKmr`mQQOTTF">
                <field name="NUM">6</field>
               </block>
              </value>
              <value name="Z">
               <block type="math_number" id="vjPx_XS|eq/LODHA5zE!">
                <field name="NUM">18</field>
               </block>
              </value>
             </block>
            </value>
            <value name="ADD3">
             <block type="bitbybit.point.pointXYZ" id="=4FEVjq0h4odhur?w_zx">
              <value name="X">
               <block type="math_number" id="KJxHN*rGQV;Mg`670k,h">
                <field name="NUM">-18</field>
               </block>
              </value>
              <value name="Y">
               <block type="math_number" id="z)z/981_RRUiiD_V}izs">
                <field name="NUM">6</field>
               </block>
              </value>
              <value name="Z">
               <block type="math_number" id="xC6Ee7Gj6FYg^t1?BlIV">
                <field name="NUM">18</field>
               </block>
              </value>
             </block>
            </value>
           </block>
          </value>
          <value name="Periodic">
           <block type="logic_boolean" id="z]rsGd!Ha9OVm~*Hu1fb">
            <field name="BOOL">TRUE</field>
           </block>
          </value>
          <value name="Tolerance">
           <block type="math_number" id="@CYr^kXr{:t6|y-JS6b%">
            <field name="NUM">1e-7</field>
           </block>
          </value>
         </block>
        </value>
        <next>
         <block type="variables_set" id=".|z.PlNc:)4IVkPeHT)9">
          <field name="VAR" id="e/$DaRE5=XZ{x#TU~wUs">curve3</field>
          <value name="VALUE">
           <block type="bitbybit.occt.shapes.wire.interpolatePoints" id="5Q[P=oUU|r9IU]A+OI$*">
            <value name="Points">
             <block type="lists_create_with" id="mfU]v]W/e0-(Um!)Rn`Z">
              <mutation items="4">
              </mutation>
              <value name="ADD0">
               <block type="bitbybit.point.pointXYZ" id="x3z0%Qmy/nWH;KU_-(.b">
                <value name="X">
                 <block type="math_number" id="EfV.jD8JtT+QR;w#G[_v">
                  <field name="NUM">-10</field>
                 </block>
                </value>
                <value name="Y">
                 <block type="math_number" id="Hxn7;)JR[.*ljQI!xoVp">
                  <field name="NUM">30</field>
                 </block>
                </value>
                <value name="Z">
                 <block type="math_number" id="qtv(yZi$KwY~B/[GNBkN">
                  <field name="NUM">-10</field>
                 </block>
                </value>
               </block>
              </value>
              <value name="ADD1">
               <block type="bitbybit.point.pointXYZ" id=".5WnLr?Wa*rRF%KJ[6?9">
                <value name="X">
                 <block type="math_number" id="erjI{=6:A#c(~-wc8n^}">
                  <field name="NUM">10</field>
                 </block>
                </value>
                <value name="Y">
                 <block type="math_number" id="x1o%K6Pv:%gD5XWQvYr#">
                  <field name="NUM">26</field>
                 </block>
                </value>
                <value name="Z">
                 <block type="math_number" id="0INws!wpab^$@=Ed^gjh">
                  <field name="NUM">-18</field>
                 </block>
                </value>
               </block>
              </value>
              <value name="ADD2">
               <block type="bitbybit.point.pointXYZ" id="X0uWq9h0^aF9OZRFs%-#">
                <value name="X">
                 <block type="math_number" id="Y7{3=KK+=WH!*7RfjAS@">
                  <field name="NUM">10</field>
                 </block>
                </value>
                <value name="Y">
                 <block type="math_number" id=";e7i0rIobC~lBH`[J}2*">
                  <field name="NUM">16</field>
                 </block>
                </value>
                <value name="Z">
                 <block type="math_number" id="d(gu;mdB{+P?eYQ5eo]b">
                  <field name="NUM">10</field>
                 </block>
                </value>
               </block>
              </value>
              <value name="ADD3">
               <block type="bitbybit.point.pointXYZ" id="?P/#}D@U#I`=iGqU0@M%">
                <value name="X">
                 <block type="math_number" id="[7SSj#^T*ei96K,?Y^!X">
                  <field name="NUM">-10</field>
                 </block>
                </value>
                <value name="Y">
                 <block type="math_number" id="B3D(.F7l;5xrYz;3ac*A">
                  <field name="NUM">18</field>
                 </block>
                </value>
                <value name="Z">
                 <block type="math_number" id=".]LY,J%S3Pf_5!7RVK8a">
                  <field name="NUM">10</field>
                 </block>
                </value>
               </block>
              </value>
             </block>
            </value>
            <value name="Periodic">
             <block type="logic_boolean" id="JKK0S{iL8;pCi~rg_N*8">
              <field name="BOOL">TRUE</field>
             </block>
            </value>
            <value name="Tolerance">
             <block type="math_number" id="08K_U9rFDzcBc}%*cMys">
              <field name="NUM">1e-7</field>
             </block>
            </value>
           </block>
          </value>
          <next>
           <block type="variables_set" id="m}0}z@9js0|1+J=Pog3p">
            <field name="VAR" id="3ZsSD-.`eXDI9gfdsbxI">face1</field>
            <value name="VALUE">
             <block type="bitbybit.occt.shapes.face.getFace" id="RDGiuF=dzOLjPr7j[0q~">
              <value name="Shape">
               <block type="bitbybit.occt.shapes.face.reversedFace" id=",*Sp}GXkfouYMM+6d?,X">
                <value name="Shape">
                 <block type="bitbybit.occt.operations.loft" id="wb3Q1XK=1avd?nCoWM@e">
                  <value name="Shapes">
                   <block type="lists_create_with" id="Q9AqF)TdK}471F20(Kys">
                    <mutation items="3">
                    </mutation>
                    <value name="ADD0">
                     <block type="variables_get" id="ake%jO/3EHWyYQMta2?-">
                      <field name="VAR" id="Hc+aQ,@M,j{Qx2DhN*W:">curve1</field>
                     </block>
                    </value>
                    <value name="ADD1">
                     <block type="variables_get" id="EJm+h*$d)]lbTPg~wT$n">
                      <field name="VAR" id="7*^v?Y;^3SV2-Q172p$h">curve2</field>
                     </block>
                    </value>
                    <value name="ADD2">
                     <block type="variables_get" id="Qp)(cfl4*Kxc*HX#4Rwk">
                      <field name="VAR" id="e/$DaRE5=XZ{x#TU~wUs">curve3</field>
                     </block>
                    </value>
                   </block>
                  </value>
                  <value name="MakeSolid">
                   <block type="logic_boolean" id="i}*Lo7!b|M(|;GZvNm31">
                    <field name="BOOL">FALSE</field>
                   </block>
                  </value>
                 </block>
                </value>
               </block>
              </value>
              <value name="Index">
               <block type="math_number" id="rQRZJ.P;69(!_^y)L=Y/">
                <field name="NUM">0</field>
               </block>
              </value>
             </block>
            </value>
            <next>
             <block type="variables_set" id="97Sy6e45@X/oZiGm3[-M">
              <field name="VAR" id="85.A(S/.oO4yqw%tD^8|">face2</field>
              <value name="VALUE">
               <block type="bitbybit.occt.shapes.face.getFace" id="dB;0OTc@[9a@G)7#d)#J">
                <value name="Shape">
                 <block type="bitbybit.occt.operations.offset" id="*:)}Ewjd-zC^Njw8`6zU">
                  <value name="Shape">
                   <block type="variables_get" id="6DGdA?q22vc)A@c[2g60">
                    <field name="VAR" id="3ZsSD-.`eXDI9gfdsbxI">face1</field>
                   </block>
                  </value>
                  <value name="Distance">
                   <block type="math_number" id="i)sl+qKX?zVC/X;~3frg">
                    <field name="NUM">-0.5</field>
                   </block>
                  </value>
                  <value name="Tolerance">
                   <block type="math_number" id="WQj]#]@gKGZork?bk^52">
                    <field name="NUM">0.1</field>
                   </block>
                  </value>
                 </block>
                </value>
                <value name="Index">
                 <block type="math_number" id="0?sy/^d@)v;-s6ju`QnH">
                  <field name="NUM">0</field>
                 </block>
                </value>
               </block>
              </value>
              <next>
               <block type="bitbybit.draw.drawAnyAsyncNoReturn" id="}:HUBP)z{.a.Ay(G/!7J">
                <value name="Entity">
                 <block type="bitbybit.occt.transforms.translate" id=")r.KP948J2BV/qVJp(XW">
                  <value name="Shape">
                   <block type="bitbybit.occt.transforms.scale" id="GWi?Q+Z#lus:KleJCNPT">
                    <value name="Shape">
                     <block type="bitbybit.occt.shapes.face.reversedFace" id="abKFh|~bkT|UwGiy6N%:">
                      <value name="Shape">
                       <block type="bitbybit.occt.shapes.face.createFaceFromWire" id="tnBKS$up)t!L2J~C6*SP">
                        <value name="Shape">
                         <block type="variables_get" id="xwm*3HL7v60o:;*P8_xt">
                          <field name="VAR" id="Hc+aQ,@M,j{Qx2DhN*W:">curve1</field>
                         </block>
                        </value>
                        <value name="Planar">
                         <block type="logic_boolean" id="jSh2:Hntv[Fy3CzdRs*@">
                          <field name="BOOL">TRUE</field>
                         </block>
                        </value>
                       </block>
                      </value>
                     </block>
                    </value>
                    <value name="Factor">
                     <block type="math_number" id="wLzPGQrwWf*:8*.yAPw?">
                      <field name="NUM">4</field>
                     </block>
                    </value>
                   </block>
                  </value>
                  <value name="Translation">
                   <block type="bitbybit.point.pointXYZ" id="+YdV(t[}_u#ZmU|/Q?ae">
                    <value name="X">
                     <block type="math_number" id="*fiXvazx[Oki,MchVI_0">
                      <field name="NUM">0</field>
                     </block>
                    </value>
                    <value name="Y">
                     <block type="math_number" id="@HX+1tC].mg9}R@_]@Q,">
                      <field name="NUM">-0.4</field>
                     </block>
                    </value>
                    <value name="Z">
                     <block type="math_number" id="O%2SED3Rn@S*y8;9c!(u">
                      <field name="NUM">0</field>
                     </block>
                    </value>
                   </block>
                  </value>
                 </block>
                </value>
                <value name="Options">
                 <block type="bitbybit.draw.optionsOcctShapeSimple" id="C!?]bYOFGL|,jhdIxNG#">
                  <value name="Precision">
                   <block type="math_number" id="3hM*zhRIb7t=$Cuu!Ygy">
                    <field name="NUM">0.05</field>
                   </block>
                  </value>
                  <value name="DrawFaces">
                   <block type="logic_boolean" id="NLBNZJ(KtA0^A%68/=TR">
                    <field name="BOOL">TRUE</field>
                   </block>
                  </value>
                  <value name="FaceColour">
                   <block type="colour_picker" id="tp?RwYNo]tzn2deS`RvY">
                    <field name="COLOUR">#6600cc</field>
                   </block>
                  </value>
                  <value name="DrawEdges">
                   <block type="logic_boolean" id="EwpHYXNb4,B:79[?ruh!">
                    <field name="BOOL">TRUE</field>
                   </block>
                  </value>
                  <value name="EdgeColour">
                   <block type="colour_picker" id="?R62:``@gp1U=Ba9F2Nl">
                    <field name="COLOUR">#bbbbff</field>
                   </block>
                  </value>
                  <value name="EdgeWidth">
                   <block type="math_number" id="O4paSQjh.b~YI:[|*q$v">
                    <field name="NUM">2</field>
                   </block>
                  </value>
                 </block>
                </value>
                <next>
                 <block type="base_time_async_context" id="3$45oKj+o(0tf|FOsF0l">
                  <statement name="Then">
                   <block type="variables_set" id="(BCHY3hYZ|WI5b?|KnGF">
                    <field name="VAR" id="Jb}OqCmeVh~H-cDIX%{e">uvParams1</field>
                    <value name="VALUE">
                     <block type="base_time_await_return" id="tYk.MFyw:$.RVQZjeEW)">
                      <value name="Promise">
                       <block type="procedures_callreturn" id="A%;yhiuPVG2AXAdT_b?d">
                        <mutation name="makeUvParams">
                         <arg name="face">
                         </arg>
                        </mutation>
                        <value name="ARG0">
                         <block type="variables_get" id="A]%pKmuwuR#D;.a4*-3p">
                          <field name="VAR" id="3ZsSD-.`eXDI9gfdsbxI">face1</field>
                         </block>
                        </value>
                       </block>
                      </value>
                     </block>
                    </value>
                    <next>
                     <block type="variables_set" id="N}ZXGB~;ow.]{?:d)XDM">
                      <field name="VAR" id="O2DS:5q7f[YJK*wE`T[P">uvParams2</field>
                      <value name="VALUE">
                       <block type="base_time_await_return" id="a7dz5W1F5@J0-=a[K()F">
                        <value name="Promise">
                         <block type="procedures_callreturn" id="VCi_P24c9hsKjx+)rKED">
                          <mutation name="makeUvParams">
                           <arg name="face">
                           </arg>
                          </mutation>
                          <value name="ARG0">
                           <block type="variables_get" id="!$yrdQ=/$s5(e(lH%(6$">
                            <field name="VAR" id="85.A(S/.oO4yqw%tD^8|">face2</field>
                           </block>
                          </value>
                         </block>
                        </value>
                       </block>
                      </value>
                      <next>
                       <block type="variables_set" id="mTN,`HfUA*M~6/pkO|4D">
                        <field name="VAR" id="DKAISb%*M~+$/_,:ECDc">ellipsesOnSurface1</field>
                        <value name="VALUE">
                         <block type="base_time_await_return" id="+Bgyh^LFn|*HR2Lu,hic">
                          <value name="Promise">
                           <block type="procedures_callreturn" id="egx6Wh$kLkS.LaQjwk_3">
                            <mutation name="ellipsesOnSurface">
                             <arg name="uvParams">
                             </arg>
                             <arg name="srf">
                             </arg>
                             <arg name="ellipseMinor">
                             </arg>
                             <arg name="ellipseMajor">
                             </arg>
                            </mutation>
                            <value name="ARG0">
                             <block type="variables_get" id="Hf`(]MO$!twV=Icmbjt:">
                              <field name="VAR" id="Jb}OqCmeVh~H-cDIX%{e">uvParams1</field>
                             </block>
                            </value>
                            <value name="ARG1">
                             <block type="bitbybit.occt.geom.surfaces.surfaceFromFace" id=",=dVi{P,Zy0je,NnP|-+">
                              <value name="Shape">
                               <block type="variables_get" id="#a~5]u]EfCfPq%pKQ0p^">
                                <field name="VAR" id="3ZsSD-.`eXDI9gfdsbxI">face1</field>
                               </block>
                              </value>
                             </block>
                            </value>
                            <value name="ARG2">
                             <block type="math_number" id=",~rqhJ:g^yo%~+tS:`~n">
                              <field name="NUM">0.02</field>
                             </block>
                            </value>
                            <value name="ARG3">
                             <block type="math_number" id="J73fz:2qEvYwx(G:%1Qr">
                              <field name="NUM">0.04</field>
                             </block>
                            </value>
                           </block>
                          </value>
                         </block>
                        </value>
                        <next>
                         <block type="variables_set" id="QtU#z!cz`chcz^w+TdPm">
                          <field name="VAR" id="6$-:{2?d3;2Ey92n.xr4">ellipsesOnSurface2</field>
                          <value name="VALUE">
                           <block type="base_time_await_return" id="t!EtPPP+uSV5.iTNY7?C">
                            <value name="Promise">
                             <block type="procedures_callreturn" id="FxdCpHKXe,pf}9]qZ`?p">
                              <mutation name="ellipsesOnSurface">
                               <arg name="uvParams">
                               </arg>
                               <arg name="srf">
                               </arg>
                               <arg name="ellipseMinor">
                               </arg>
                               <arg name="ellipseMajor">
                               </arg>
                              </mutation>
                              <value name="ARG0">
                               <block type="variables_get" id="zR?i`(J:.B}YsdU~q#5f">
                                <field name="VAR" id="O2DS:5q7f[YJK*wE`T[P">uvParams2</field>
                               </block>
                              </value>
                              <value name="ARG1">
                               <block type="bitbybit.occt.geom.surfaces.surfaceFromFace" id="RPy7Bux5B4kpl0I@tgg5">
                                <value name="Shape">
                                 <block type="variables_get" id="I]xhwturSkmkG!bh1cJ3">
                                  <field name="VAR" id="85.A(S/.oO4yqw%tD^8|">face2</field>
                                 </block>
                                </value>
                               </block>
                              </value>
                              <value name="ARG2">
                               <block type="math_number" id="^0B34{d}[a5GefT0p%|{">
                                <field name="NUM">0.01</field>
                               </block>
                              </value>
                              <value name="ARG3">
                               <block type="math_number" id="6P,-_|Pcf?i0*5/VCAMz">
                                <field name="NUM">0.01</field>
                               </block>
                              </value>
                             </block>
                            </value>
                           </block>
                          </value>
                          <next>
                           <block type="variables_set" id="R1t+=kG}{ie4xNDhhg/c">
                            <field name="VAR" id="6Uobshv).d$BLqg6z[/f">toSew</field>
                            <value name="VALUE">
                             <block type="lists_create_with" id="Y?]J?8PEu_H:W?Y2Z}Or">
                              <mutation items="0">
                              </mutation>
                             </block>
                            </value>
                            <next>
                             <block type="controls_for" id=",,J#W@pUp|RL{Dmi:mR}">
                              <field name="VAR" id="APfT.`+4@$eBae(4%o(O">j</field>
                              <value name="FROM">
                               <block type="math_number" id="kBdk1*[_o?S?sTo:GrDK">
                                <field name="NUM">1</field>
                               </block>
                              </value>
                              <value name="TO">
                               <block type="lists_length" id="%oGUe]Vl/q`@+]OShH$c">
                                <value name="VALUE">
                                 <block type="variables_get" id="|sNrqwr8GzQ3KB7BQ[+R">
                                  <field name="VAR" id="DKAISb%*M~+$/_,:ECDc">ellipsesOnSurface1</field>
                                 </block>
                                </value>
                               </block>
                              </value>
                              <value name="BY">
                               <block type="math_number" id="]8mupjBLaBtyzeS}/gFQ">
                                <field name="NUM">1</field>
                               </block>
                              </value>
                              <statement name="DO">
                               <block type="variables_set" id="9b4/W(pY*P6~/BdgsDdX">
                                <field name="VAR" id="m!J4oi0a0k5gLjuS2aU2">e1</field>
                                <value name="VALUE">
                                 <block type="lists_getIndex" id="ZauN.m1R^C2,YziXrYLt">
                                  <mutation statement="false" at="true">
                                  </mutation>
                                  <field name="MODE">GET</field>
                                  <field name="WHERE">FROM_START</field>
                                  <value name="VALUE">
                                   <block type="variables_get" id="{)hs^coS(ocNLn:0-aFv">
                                    <field name="VAR" id="DKAISb%*M~+$/_,:ECDc">ellipsesOnSurface1</field>
                                   </block>
                                  </value>
                                  <value name="AT">
                                   <block type="variables_get" id="l*M9`a3]GpigKdt~0+a1">
                                    <field name="VAR" id="APfT.`+4@$eBae(4%o(O">j</field>
                                   </block>
                                  </value>
                                 </block>
                                </value>
                                <next>
                                 <block type="variables_set" id="8s`R?K!)@8ZHEgaVQ-M~">
                                  <field name="VAR" id="FGrDwhNZ]G{|YJ-Wwq5S">e2</field>
                                  <value name="VALUE">
                                   <block type="lists_getIndex" id="2J02n_`m@GVoum#(ur)H">
                                    <mutation statement="false" at="true">
                                    </mutation>
                                    <field name="MODE">GET</field>
                                    <field name="WHERE">FROM_START</field>
                                    <value name="VALUE">
                                     <block type="variables_get" id="xk0nKlw$QHU+)L?qkjV$">
                                      <field name="VAR" id="6$-:{2?d3;2Ey92n.xr4">ellipsesOnSurface2</field>
                                     </block>
                                    </value>
                                    <value name="AT">
                                     <block type="variables_get" id="9I5yzp,ndCz/r15XV8/`">
                                      <field name="VAR" id="APfT.`+4@$eBae(4%o(O">j</field>
                                     </block>
                                    </value>
                                   </block>
                                  </value>
                                  <next>
                                   <block type="variables_set" id="Ne8K;=RFvC;jiC`Yh?Au">
                                    <field name="VAR" id="EW(,TM7|IXP0/Ba}#T9.">loft</field>
                                    <value name="VALUE">
                                     <block type="bitbybit.occt.operations.loft" id="uaNP4_XvRHhSRys^76;_">
                                      <value name="Shapes">
                                       <block type="lists_create_with" id="}[h](/UU^l_Ho1x!A]mC">
                                        <mutation items="2">
                                        </mutation>
                                        <value name="ADD0">
                                         <block type="variables_get" id="6;)qkqR#{(,O*%;3*!EK">
                                          <field name="VAR" id="m!J4oi0a0k5gLjuS2aU2">e1</field>
                                         </block>
                                        </value>
                                        <value name="ADD1">
                                         <block type="variables_get" id="RC^~6UCS7b:fD89eS_t]">
                                          <field name="VAR" id="FGrDwhNZ]G{|YJ-Wwq5S">e2</field>
                                         </block>
                                        </value>
                                       </block>
                                      </value>
                                      <value name="MakeSolid">
                                       <block type="logic_boolean" id="=_?cU[++$4HGF`:A6Nu/">
                                        <field name="BOOL">FALSE</field>
                                       </block>
                                      </value>
                                     </block>
                                    </value>
                                    <next>
                                     <block type="lists_setIndex" id="i3#W`zB8@i$WOOpvZb9^">
                                      <mutation at="false">
                                      </mutation>
                                      <field name="MODE">INSERT</field>
                                      <field name="WHERE">LAST</field>
                                      <value name="LIST">
                                       <block type="variables_get" id="?odelcd?b*S,kaC8+D_H">
                                        <field name="VAR" id="6Uobshv).d$BLqg6z[/f">toSew</field>
                                       </block>
                                      </value>
                                      <value name="TO">
                                       <block type="variables_get" id="L(keG)|uedex*LgbU:%H">
                                        <field name="VAR" id="EW(,TM7|IXP0/Ba}#T9.">loft</field>
                                       </block>
                                      </value>
                                     </block>
                                    </next>
                                   </block>
                                  </next>
                                 </block>
                                </next>
                               </block>
                              </statement>
                              <next>
                               <block type="lists_setIndex" id="jkzI)587G*KvOOW~KPtg">
                                <mutation at="false">
                                </mutation>
                                <field name="MODE">INSERT</field>
                                <field name="WHERE">LAST</field>
                                <value name="LIST">
                                 <block type="variables_get" id="5)fD?%#@pj9w{rY;)^HR">
                                  <field name="VAR" id="6Uobshv).d$BLqg6z[/f">toSew</field>
                                 </block>
                                </value>
                                <value name="TO">
                                 <block type="bitbybit.occt.shapes.face.reversedFace" id="_JE@lg:TH@6-n.xbGYN7">
                                  <value name="Shape">
                                   <block type="bitbybit.occt.shapes.face.getFace" id="-QW]s);GJm2Hx+/kDndM">
                                    <value name="Shape">
                                     <block type="bitbybit.occt.operations.splitShapeWithShapes" id="JD!8nW~F]0s-Z(pP=+t-">
                                      <value name="Shape">
                                       <block type="variables_get" id=":v{x5X[muP+-Rl7ln3f]">
                                        <field name="VAR" id="3ZsSD-.`eXDI9gfdsbxI">face1</field>
                                       </block>
                                      </value>
                                      <value name="Shapes">
                                       <block type="variables_get" id="x8D8LW,B7SE+Fpe%du%h">
                                        <field name="VAR" id="DKAISb%*M~+$/_,:ECDc">ellipsesOnSurface1</field>
                                       </block>
                                      </value>
                                     </block>
                                    </value>
                                    <value name="Index">
                                     <block type="math_arithmetic" id="K#|!V12X:5c2KF/$}%^L">
                                      <field name="OP">MINUS</field>
                                      <value name="A">
                                       <block type="lists_length" id="R85IM-GWE=Ai^w`yEG#x">
                                        <value name="VALUE">
                                         <block type="variables_get" id="s3#|q*Rs/Dc/uKQ*}-Q~">
                                          <field name="VAR" id="DKAISb%*M~+$/_,:ECDc">ellipsesOnSurface1</field>
                                         </block>
                                        </value>
                                       </block>
                                      </value>
                                      <value name="B">
                                       <block type="math_number" id="ZyK7*yp-40HUQ9V4SP.G">
                                        <field name="NUM">1</field>
                                       </block>
                                      </value>
                                     </block>
                                    </value>
                                   </block>
                                  </value>
                                 </block>
                                </value>
                                <next>
                                 <block type="lists_setIndex" id="bb:Th$y`#@?f=`=R`SFT">
                                  <mutation at="false">
                                  </mutation>
                                  <field name="MODE">INSERT</field>
                                  <field name="WHERE">LAST</field>
                                  <value name="LIST">
                                   <block type="variables_get" id="~MK!GvAjp|wi}.wupcns">
                                    <field name="VAR" id="6Uobshv).d$BLqg6z[/f">toSew</field>
                                   </block>
                                  </value>
                                  <value name="TO">
                                   <block type="bitbybit.occt.shapes.face.createFaceFromWire" id="#(2m|%H_m;DYFmIN|J[.">
                                    <value name="Shape">
                                     <block type="variables_get" id="Pl(Mt*6-IkXiX-`xcDA$">
                                      <field name="VAR" id="Hc+aQ,@M,j{Qx2DhN*W:">curve1</field>
                                     </block>
                                    </value>
                                    <value name="Planar">
                                     <block type="logic_boolean" id="?%v}-FM*{}ld/_T)Qa!o">
                                      <field name="BOOL">TRUE</field>
                                     </block>
                                    </value>
                                   </block>
                                  </value>
                                  <next>
                                   <block type="bitbybit.draw.drawAnyAsyncNoReturn" id="_/4BHHAR0|NDx/jiphbs">
                                    <value name="Entity">
                                     <block type="bitbybit.occt.operations.makeThickSolidSimple" id="#ru0BJeQV$.`$s{zS^PM">
                                      <value name="Shape">
                                       <block type="bitbybit.occt.fillets.filletEdges" id="N-L2n=/y#*4D5Pbse9q[">
                                        <value name="Shape">
                                         <block type="bitbybit.occt.shapes.shell.sewFaces" id="Uk40VNCvG-ol1mZ-4O(8">
                                          <value name="Shapes">
                                           <block type="variables_get" id="P:_PNdiJTDV@.1SX%(5x">
                                            <field name="VAR" id="6Uobshv).d$BLqg6z[/f">toSew</field>
                                           </block>
                                          </value>
                                          <value name="Tolerance">
                                           <block type="math_number" id="$2O+2LyKURmb5E]R9C99">
                                            <field name="NUM">0.001</field>
                                           </block>
                                          </value>
                                         </block>
                                        </value>
                                        <value name="Radius">
                                         <block type="math_number" id="/MMBpi(us7#1S,e{a)]L">
                                          <field name="NUM">0.65</field>
                                         </block>
                                        </value>
                                       </block>
                                      </value>
                                      <value name="Offset">
                                       <block type="math_number" id="sEoIRG*:-+pSVLlNH8}T">
                                        <field name="NUM">-0.2</field>
                                       </block>
                                      </value>
                                     </block>
                                    </value>
                                    <value name="Options">
                                     <block type="bitbybit.draw.optionsOcctShapeMaterial" id="`c:MG]n)x4NwT7~YZrzw">
                                      <value name="Precision">
                                       <block type="math_number" id="!4[3BQOBk84[6p4:/oVd">
                                        <field name="NUM">0.1</field>
                                       </block>
                                      </value>
                                      <value name="FaceMaterial">
                                       <block type="bitbybit.babylon.material.pbrMetallicRoughness.create" id="BPQRGva8aPQS#nL(oZzj">
                                        <value name="Name">
                                         <block type="text" id="/4hY):vy^ZDF/-;wGQv~">
                                          <field name="TEXT">MyMaterial</field>
                                         </block>
                                        </value>
                                        <value name="BaseColor">
                                         <block type="colour_picker" id="!LD2A|*zOpnJQE[{nz!?">
                                          <field name="COLOUR">#cc33cc</field>
                                         </block>
                                        </value>
                                        <value name="Metallic">
                                         <block type="math_number" id="ryGQgSUOAxJ9.-UJn}x}">
                                          <field name="NUM">1</field>
                                         </block>
                                        </value>
                                        <value name="Roughness">
                                         <block type="math_number" id="O(Ljk},esz0i7#C^WGzW">
                                          <field name="NUM">0.2</field>
                                         </block>
                                        </value>
                                        <value name="Alpha">
                                         <block type="math_number" id="D:%fWp90u=uM_5NU/!pg">
                                          <field name="NUM">1</field>
                                         </block>
                                        </value>
                                        <value name="BackFaceCulling">
                                         <block type="logic_boolean" id="?1Vq|!UxQ!8@`~Nh+jrv">
                                          <field name="BOOL">TRUE</field>
                                         </block>
                                        </value>
                                        <value name="ZOffset">
                                         <block type="math_number" id="#=`GmYgriBI8,fUN@eu?">
                                          <field name="NUM">2</field>
                                         </block>
                                        </value>
                                       </block>
                                      </value>
                                      <value name="DrawEdges">
                                       <block type="logic_boolean" id="7@qVc:h.[KtAHHNv;u:h">
                                        <field name="BOOL">TRUE</field>
                                       </block>
                                      </value>
                                      <value name="EdgeColour">
                                       <block type="colour_picker" id="`n4#B?VvrA-GrUw?JGaR">
                                        <field name="COLOUR">#ffffff</field>
                                       </block>
                                      </value>
                                      <value name="EdgeWidth">
                                       <block type="math_number" id="?r:AQkGQo@y~!CJZR_E@">
                                        <field name="NUM">2</field>
                                       </block>
                                      </value>
                                     </block>
                                    </value>
                                   </block>
                                  </next>
                                 </block>
                                </next>
                               </block>
                              </next>
                             </block>
                            </next>
                           </block>
                          </next>
                         </block>
                        </next>
                       </block>
                      </next>
                     </block>
                    </next>
                   </block>
                  </statement>
                 </block>
                </next>
               </block>
              </next>
             </block>
            </next>
           </block>
          </next>
         </block>
        </next>
       </block>
      </next>
     </block>
    </next>
   </block>
  </next>
 </block>
 <block type="procedures_defreturn" id="U-ZYLrri*D+08,.93-Z)" x="549" y="114">
  <mutation>
   <arg name="face" varid="0dvp3:dj5bz%K/6-t#s+">
   </arg>
  </mutation>
  <field name="NAME">makeUvParams</field>
  <comment pinned="false" h="80" w="160">Describe this function...</comment>
  <statement name="STACK">
   <block type="variables_set" id="N;:rIBL-{t$/5u`PlgYW">
    <field name="VAR" id="TC`ZX(-AgXb{8E~@6^u/">uvParams</field>
    <value name="VALUE">
     <block type="bitbybit.occt.shapes.face.subdivideToUV" id="{J(e+p(c[K~Di|``TrI9">
      <value name="Shape">
       <block type="variables_get" id="P|E/j~fY#2{pKscBO)~7">
        <field name="VAR" id="0dvp3:dj5bz%K/6-t#s+">face</field>
       </block>
      </value>
      <value name="NrDivisionsU">
       <block type="math_number" id="cU?P#~wDiBNZ)2YD)WEL">
        <field name="NUM">20</field>
       </block>
      </value>
      <value name="NrDivisionsV">
       <block type="math_number" id="|4qY-H!iudk7V|r:]N,+">
        <field name="NUM">8</field>
       </block>
      </value>
      <value name="ShiftHalfStepU">
       <block type="logic_boolean" id="a3/7Xf4vyfoC;BobF?U-">
        <field name="BOOL">TRUE</field>
       </block>
      </value>
      <value name="RemoveStartEdgeU">
       <block type="logic_boolean" id="TV:PlQS#^ZoAUY]nt1EV">
        <field name="BOOL">FALSE</field>
       </block>
      </value>
      <value name="RemoveEndEdgeU">
       <block type="logic_boolean" id="Q]Pd5S[3It[ur;?i1x2a">
        <field name="BOOL">TRUE</field>
       </block>
      </value>
      <value name="ShiftHalfStepV">
       <block type="logic_boolean" id="2I.*c*)kAaw[*w2Ky?a+">
        <field name="BOOL">FALSE</field>
       </block>
      </value>
      <value name="RemoveStartEdgeV">
       <block type="logic_boolean" id="3^j.z#zaF_YVAQ^V%NVN">
        <field name="BOOL">TRUE</field>
       </block>
      </value>
      <value name="RemoveEndEdgeV">
       <block type="logic_boolean" id="MYHk03,Tz(Se?O2nxCf[">
        <field name="BOOL">TRUE</field>
       </block>
      </value>
     </block>
    </value>
   </block>
  </statement>
  <value name="RETURN">
   <block type="variables_get" id="1fu=4hb,I!WlU/oJ|!ef">
    <field name="VAR" id="TC`ZX(-AgXb{8E~@6^u/">uvParams</field>
   </block>
  </value>
 </block>
 <block type="procedures_defreturn" id="nn1,}s5IR`5TwM:]a9~w" x="559" y="808">
  <mutation>
   <arg name="uvParams" varid="TC`ZX(-AgXb{8E~@6^u/">
   </arg>
   <arg name="srf" varid="2^Q-N!%M(5QY*3,SjZjY">
   </arg>
   <arg name="ellipseMinor" varid="-?PFj;sqp]dunhz|[/PQ">
   </arg>
   <arg name="ellipseMajor" varid=")D|z+SUVIRkTL.Wg(m]~">
   </arg>
  </mutation>
  <field name="NAME">ellipsesOnSurface</field>
  <comment pinned="false" h="80" w="160">Describe this function...</comment>
  <statement name="STACK">
   <block type="variables_set" id="%0HWfzU[dP@9YcsApSl~">
    <field name="VAR" id="#|0hz9A,rSrp.T]4,1Hk">ellipsesOnSurface</field>
    <value name="VALUE">
     <block type="lists_create_with" id="jW%SV@V./kHxu!9Z)I7J">
      <mutation items="0">
      </mutation>
     </block>
    </value>
    <next>
     <block type="controls_forEach" id="-#RYa+#?a~;(ng0$U!g9">
      <field name="VAR" id="4td}#E)?F*lX^:2WOINn">i</field>
      <value name="LIST">
       <block type="variables_get" id=":P5B=zk_b[,p2Fh|r}=[">
        <field name="VAR" id="TC`ZX(-AgXb{8E~@6^u/">uvParams</field>
       </block>
      </value>
      <statement name="DO">
       <block type="lists_setIndex" id="q!zb1Q{hGFAAJDbS5Bx/">
        <mutation at="false">
        </mutation>
        <field name="MODE">INSERT</field>
        <field name="WHERE">LAST</field>
        <value name="LIST">
         <block type="variables_get" id="Tti($kT@~#=WW{FlYp1y">
          <field name="VAR" id="#|0hz9A,rSrp.T]4,1Hk">ellipsesOnSurface</field>
         </block>
        </value>
        <value name="TO">
         <block type="bitbybit.occt.shapes.wire.combineEdgesAndWiresIntoAWire" id="!DqS]1}9Sss[=LjRBMot">
          <value name="Shapes">
           <block type="lists_create_with" id="b,rzV)(=v{vIB%pL=[zx">
            <mutation items="1">
            </mutation>
            <value name="ADD0">
             <block type="bitbybit.occt.shapes.edge.makeEdgeFromGeom2dCurveAndSurface" id="=`oNnzI9T}4,ASv{/;[q">
              <value name="Curve">
               <block type="bitbybit.occt.geom.curves.geom2dEllipse" id="B]l2{Q[S4=tMGQL{fS45">
                <value name="Center">
                 <block type="variables_get" id="JCbe93HRt%QSKb%Olpk/">
                  <field name="VAR" id="4td}#E)?F*lX^:2WOINn">i</field>
                 </block>
                </value>
                <value name="Direction">
                 <block type="bitbybit.vector.vectorXY" id="-{E/pK6+g0c8bY~.WA~^">
                  <value name="X">
                   <block type="math_number" id="f=Ny_j6y-wC5l%bufL@4">
                    <field name="NUM">0</field>
                   </block>
                  </value>
                  <value name="Y">
                   <block type="math_number" id="7Ilu8s8RKl,bRTHM0#!;">
                    <field name="NUM">1</field>
                   </block>
                  </value>
                 </block>
                </value>
                <value name="RadiusMinor">
                 <block type="variables_get" id="V,JU?0yl#TRO~{:2eoki">
                  <field name="VAR" id="-?PFj;sqp]dunhz|[/PQ">ellipseMinor</field>
                 </block>
                </value>
                <value name="RadiusMajor">
                 <block type="variables_get" id="-WFWNf=0q(NJtGttzY8v">
                  <field name="VAR" id=")D|z+SUVIRkTL.Wg(m]~">ellipseMajor</field>
                 </block>
                </value>
                <value name="Sense">
                 <block type="logic_boolean" id="yCyI|(Q)rO-Bij#4uXf9">
                  <field name="BOOL">TRUE</field>
                 </block>
                </value>
               </block>
              </value>
              <value name="Surface">
               <block type="variables_get" id="J=eyRwnTcQ[JI/Z8ffTg">
                <field name="VAR" id="2^Q-N!%M(5QY*3,SjZjY">srf</field>
               </block>
              </value>
             </block>
            </value>
           </block>
          </value>
         </block>
        </value>
       </block>
      </statement>
     </block>
    </next>
   </block>
  </statement>
  <value name="RETURN">
   <block type="variables_get" id="cr!}`xNk^Y~NY:k+Y~#=">
    <field name="VAR" id="#|0hz9A,rSrp.T]4,1Hk">ellipsesOnSurface</field>
   </block>
  </value>
 </block>
</xml>
Plans & Pricing

Choose Your Plan

Editor plans for 3D development, API keys for server-side CAD algorithms

Editor Plans

Cloud storage, private projects & 3D algorithms for Bitbybit editors

FREE

€0/forever
  • Core 3D algorithms
  • Unlimited public projects
  • Small cloud storage
Get Started

SILVER

€12/month
  • Complex 3D algorithms
  • Private projects
  • Mid-size cloud storage
Choose Silver
Most Popular

GOLD

€34/month
  • Advanced 3D algorithms
  • Unlimited private projects
  • Large cloud storage
Choose Gold

API Key Plans

Run CAD algorithms on managed cloud servers from your own backend applications

API keys unlock server-side 3D & CAD operations. Manage them from Bitbybit Studio and integrate into your backend. Create a free account to get started.

STARTER

€79/month
  • 480 compute minutes/mo
  • 50 MB file size
  • Hard cap (no overage)
Get Started
Best Value

PROFESSIONAL

€199/month
  • 1,200 compute minutes/mo
  • 250 MB file size
  • Overage: €0.15/min
Choose Professional

BUSINESS

€699/month
  • 5,000 compute minutes/mo
  • 1 GB file size
  • Overage: €0.10/min
Choose Business
B2B

ENTERPRISE

Custom pricing

Custom software development, dedicated servers & CAD automation at scale.

Contact UsLearn More
CAD Automation & Software
  • Custom software development
  • Cloud CAD automation pipelines
  • 3D configurators (STEP & GLTF)
  • Batch export jobs
  • Custom algorithms & deployment
Infrastructure & Support
  • Custom compute allocation
  • Dedicated / VPS server tenants
  • Long-running computation jobs
  • Custom upload limits & overage
  • SLA & premium support

All prices exclude applicable taxes

View all plan details
