Script: Example in TypeScript

Type: typescript
Project: Nurbs curve along points
Author: bitbybit
Date Created: Mar 19, 2021, 9:18:09 AM
Last Edit Date: Dec 5, 2023, 7:15:01 PM

Project Information

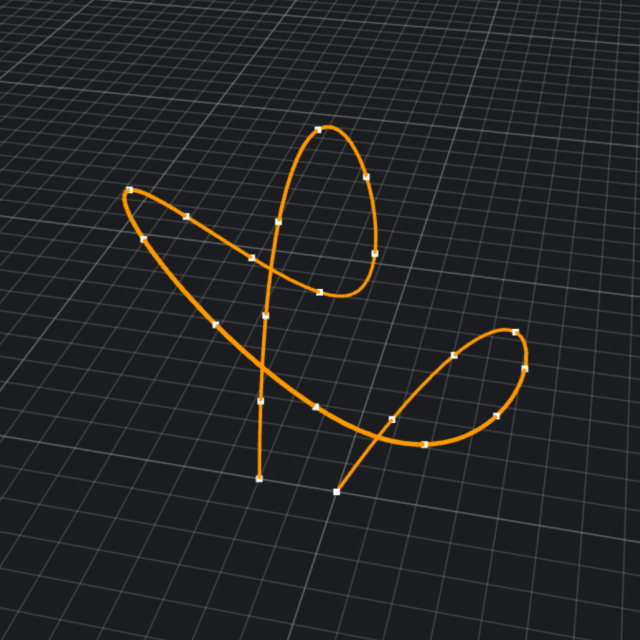

The NURBS curve gets created by using 7 control points. That curve is then subdivided into 20 equally distanced points. The result is visualised.

View Full Project

Script Code

const Inputs = Bit.Inputs;

const whiteColour = '#ffffff';
const lightGreyColour = '#eeeeee';
const greyColour = '#666666';

const drawGridMeshInput = new Inputs.Draw.SceneDrawGridMeshDto();
drawGridMeshInput.mainColor = whiteColour;
drawGridMeshInput.secondaryColor = lightGreyColour;
bitbybit.draw.drawGridMesh(drawGridMeshInput);

const pointsForCurve = [[0, 0, 0], [1, 2, -2], [-2, 3, -1], [0, 4, 2], [2, 2, 0], [2, 3, 0], [0, 0, 1]] as Bit.Inputs.Base.Point3[];

const curve = bitbybit.verb.curve.createCurveByPoints({ points: pointsForCurve, degree: 3 });

const drawCurveInput = new Inputs.Draw.DrawBasicGeometryOptions();
drawCurveInput.size = 5;
drawCurveInput.colours = greyColour;
bitbybit.draw.drawAny({ entity: curve, options: drawCurveInput });

const subdividedPoints = bitbybit.verb.curve.divideByEqualArcLengthToPoints({
    curve,
    subdivision: 20,
});

const drawPointsInput = new Inputs.Draw.DrawBasicGeometryOptions();
drawPointsInput.size = 0.2;
drawPointsInput.colours = whiteColour;
bitbybit.draw.drawAny({ entity: subdividedPoints, options: drawPointsInput });
