Script: Rete Texture Cloud Asset Example

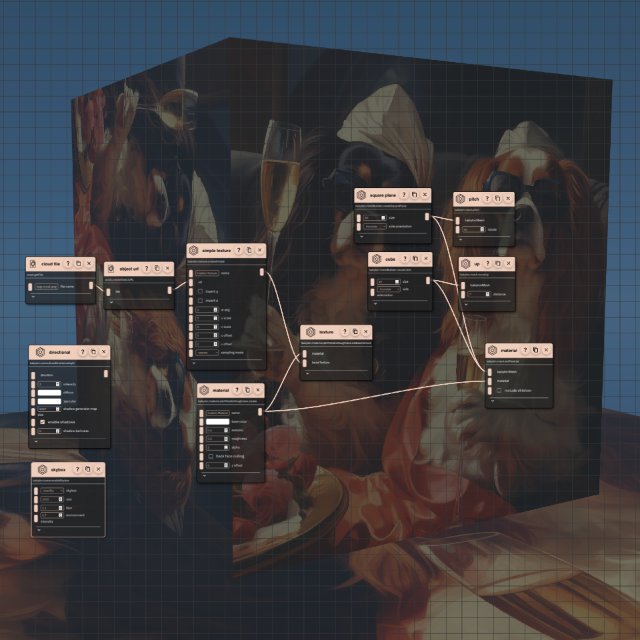

Rete Texture Cloud Asset Example picture

Type: rete
Project: Texture Cloud Assets
Author: matas
Date Created: Jan 31, 2024, 1:28:25 PM
Last Edit Date: Feb 1, 2024, 12:58:13 PM

Project Information

In this project we demonstrate how to load Cloud image assets and create BabylonJS texture from them. Then we apply texture to material and add material on the mesh.

View Full Project

Script Code

{
  "id": "rete-v2-json",
  "nodes": {
    "6d7b8b5c9e6128d5": {
      "id": "6d7b8b5c9e6128d5",
      "name": "bitbybit.babylon.scene.enableSkybox",
      "data": {
        "genericNodeData": {
          "hide": false,
          "oneOnOne": false,
          "flatten": 0
        },
        "skybox": "clearSky",
        "size": 1000,
        "blur": 0.1,
        "environmentIntensity": 0.7
      },
      "inputs": {},
      "position": [
        -1748.2235966056035,
        2287.137489931887
      ]
    },
    "7fe9ecc4d902bb63": {
      "id": "7fe9ecc4d902bb63",
      "name": "bitbybit.babylon.meshBuilder.createCube",
      "data": {
        "genericNodeData": {
          "hide": false,
          "oneOnOne": false,
          "flatten": 0
        },
        "size": 10,
        "sideOrientation": "frontside"
      },
      "inputs": {},
      "position": [
        -300.50075895410714,
        1381.1184066760088
      ]
    },
    "9ddbf040ab42dc73": {
      "id": "9ddbf040ab42dc73",
      "name": "bitbybit.babylon.texture.createSimple",
      "data": {
        "genericNodeData": {
          "hide": false,
          "oneOnOne": false,
          "flatten": 0
        },
        "name": "Custom Texture",
        "invertY": false,
        "invertZ": false,
        "wAng": 0,
        "uScale": 1,
        "vScale": 1,
        "uOffset": 0,
        "vOffset": 0,
        "samplingMode": "nearest"
      },
      "inputs": {
        "url": {
          "connections": [
            {
              "node": "baf99decb2e06c02",
              "output": "result",
              "data": {}
            }
          ]
        }
      },
      "position": [
        -1081.5717679169038,
        1344.3863333597362
      ]
    },
    "e0f0b07d6d5b5724": {
      "id": "e0f0b07d6d5b5724",
      "name": "bitbybit.asset.getFile",
      "data": {
        "genericNodeData": {
          "hide": false,
          "oneOnOne": false,
          "flatten": 0
        },
        "fileName": "dogs-small.jpeg"
      },
      "inputs": {},
      "position": [
        -1773.0021560939676,
        1402.082775509084
      ]
    },
    "baf99decb2e06c02": {
      "id": "baf99decb2e06c02",
      "name": "bitbybit.asset.createObjectURL",
      "data": {
        "genericNodeData": {
          "hide": false,
          "oneOnOne": false,
          "flatten": 0
        }
      },
      "inputs": {
        "file": {
          "connections": [
            {
              "node": "e0f0b07d6d5b5724",
              "output": "result",
              "data": {}
            }
          ]
        }
      },
      "position": [
        -1436.8880228129242,
        1422.8649941044107
      ]
    },
    "0bf77a6a7d739c0a": {
      "id": "0bf77a6a7d739c0a",
      "name": "bitbybit.babylon.material.pbrMetallicRoughness.create",
      "data": {
        "genericNodeData": {
          "hide": false,
          "oneOnOne": false,
          "flatten": 0
        },
        "name": "Custom Material",
        "baseColor": "#ffffff",
        "metallic": 0.1,
        "roughness": 0.9,
        "alpha": 1,
        "backFaceCulling": false,
        "zOffset": 0
      },
      "inputs": {},
      "position": [
        -1036.102771368627,
        1945.9499108262057
      ]
    },
    "7da83f21975db135": {
      "id": "7da83f21975db135",
      "name": "bitbybit.babylon.material.pbrMetallicRoughness.setBaseTexture",
      "data": {
        "genericNodeData": {
          "hide": false,
          "oneOnOne": false,
          "flatten": 0
        }
      },
      "inputs": {
        "material": {
          "connections": [
            {
              "node": "0bf77a6a7d739c0a",
              "output": "result",
              "data": {}
            }
          ]
        },
        "baseTexture": {
          "connections": [
            {
              "node": "9ddbf040ab42dc73",
              "output": "result",
              "data": {}
            }
          ]
        }
      },
      "position": [
        -592.5592186183312,
        1695.3932010285878
      ]
    },
    "d7db2177c13cb4b7": {
      "id": "d7db2177c13cb4b7",
      "name": "bitbybit.babylon.mesh.setMaterial",
      "data": {
        "genericNodeData": {
          "hide": false,
          "oneOnOne": false,
          "flatten": 0
        },
        "includeChildren": false
      },
      "inputs": {
        "babylonMesh": {
          "connections": [
            {
              "node": "7fe9ecc4d902bb63",
              "output": "result",
              "data": {}
            },
            {
              "node": "1ab53ac0739d2224",
              "output": "result",
              "data": {}
            }
          ]
        },
        "material": {
          "connections": [
            {
              "node": "0bf77a6a7d739c0a",
              "output": "result",
              "data": {}
            }
          ]
        }
      },
      "position": [
        204.0120779669482,
        1774.1086349259886
      ]
    },
    "b351b0e6dc2dd69f": {
      "id": "b351b0e6dc2dd69f",
      "name": "bitbybit.babylon.scene.drawDirectionalLight",
      "data": {
        "genericNodeData": {
          "hide": false,
          "oneOnOne": false,
          "flatten": 0
        },
        "intensity": 5,
        "diffuse": "#ffffff",
        "specular": "#ffffff",
        "shadowGeneratorMapSize": 1024,
        "enableShadows": true,
        "shadowDarkness": 0
      },
      "inputs": {},
      "position": [
        -1760.2286143997421,
        1782.0262668701857
      ]
    },
    "1ab53ac0739d2224": {
      "id": "1ab53ac0739d2224",
      "name": "bitbybit.babylon.meshBuilder.createSquarePlane",
      "data": {
        "genericNodeData": {
          "hide": false,
          "oneOnOne": false,
          "flatten": 0
        },
        "size": 40,
        "sideOrientation": "frontside"
      },
      "inputs": {},
      "position": [
        -359.8403886310585,
        1106.1257434662566
      ]
    },
    "8eff381776ba2e1e": {
      "id": "8eff381776ba2e1e",
      "name": "bitbybit.babylon.mesh.pitch",
      "data": {
        "genericNodeData": {
          "hide": false,
          "oneOnOne": false,
          "flatten": 0
        },
        "rotate": 90
      },
      "inputs": {
        "babylonMesh": {
          "connections": [
            {
              "node": "1ab53ac0739d2224",
              "output": "result",
              "data": {}
            }
          ]
        }
      },
      "position": [
        65.8469403574502,
        1122.5206909517049
      ]
    },
    "0e1ac976400925f9": {
      "id": "0e1ac976400925f9",
      "name": "bitbybit.babylon.mesh.moveUp",
      "data": {
        "genericNodeData": {
          "hide": false,
          "oneOnOne": false,
          "flatten": 0
        },
        "distance": 7
      },
      "inputs": {
        "babylonMesh": {
          "connections": [
            {
              "node": "7fe9ecc4d902bb63",
              "output": "result",
              "data": {}
            }
          ]
        }
      },
      "position": [
        89.26253471183789,
        1401.6229017560436
      ]
    }
  }
}
