Script: Laptop stand blockly
- Type
blockly- Project
- Laptop vertical stand
- Author
- matas
- Date Created
- Apr 9, 2021, 3:23:57 PM
- Last Edit Date
- Dec 5, 2023, 6:05:08 PM
Project Information

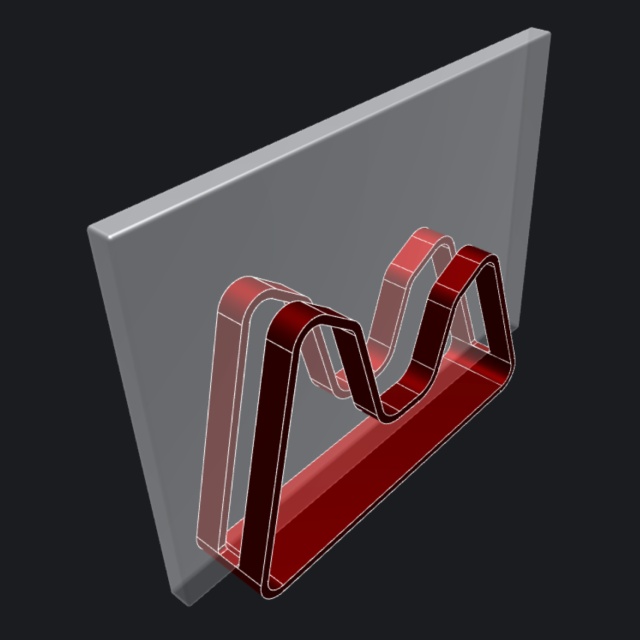

Multi slot and single slot configurable laptop stand. Change parameters and you will be able to configure this stand for your own purposes in minutes.
Script Code
<xml xmlns="https://developers.google.com/blockly/xml">
<variables>
<variable id="K/@-42QKxE!UWz#$7IYX">laptopThickness</variable>
<variable id="3afy[tTcpuyS7A(_?FL+">laptopHeight</variable>
<variable id="wEP~!;MC{M.!*XZQ}(}F">laptopWidth</variable>
<variable id="X{qP1|JP^1%/9tT{gJfZ">standSideThickness</variable>
<variable id="CV:1PX9f4mJwyO*K6wDb">laptopOffsetFromGround</variable>
<variable id="S,8z8C-y;usRfMLjR|oj">profilePoints</variable>
<variable id="0a^sM9$lxDVxu2mq_TVh">laptopToDraw</variable>
<variable id="#D2?Rt8,??{r3}yl-afe">laptopStandThickSolid</variable>
</variables>
<block type="variables_set" id="+t8s!%k9Q5gYsQY6t705" x="4077" y="-1570">
<field name="VAR" id="K/@-42QKxE!UWz#$7IYX">laptopThickness</field>
<value name="VALUE">
<block type="math_number" id="eFs-Qhf~M0X/TJVh;Dps">
<field name="NUM">1.5</field>
</block>
</value>
<next>
<block type="variables_set" id="MO#DWg+DU}9#T!/oSmx}">
<field name="VAR" id="3afy[tTcpuyS7A(_?FL+">laptopHeight</field>
<value name="VALUE">
<block type="math_number" id="s91R}zc6D?nfvtfCpUK1">
<field name="NUM">21.24</field>
</block>
</value>
<next>
<block type="variables_set" id="f8[a57=jdYzS0)ReAtIl">
<field name="VAR" id="wEP~!;MC{M.!*XZQ}(}F">laptopWidth</field>
<value name="VALUE">
<block type="math_number" id="e[[E+-!#]:=/spVTOAAr">
<field name="NUM">30.41</field>
</block>
</value>
<next>
<block type="variables_set" id="j?PVjJE|;Do9:GUhIyI%">
<field name="VAR" id="X{qP1|JP^1%/9tT{gJfZ">standSideThickness</field>
<value name="VALUE">
<block type="math_number" id="Rwf^BszLL?RF.`!;ku*y">
<field name="NUM">1.7</field>
</block>
</value>
<next>
<block type="variables_set" id="CL+(AbLk+aA_S=f(rW~b">
<field name="VAR" id="CV:1PX9f4mJwyO*K6wDb">laptopOffsetFromGround</field>
<value name="VALUE">
<block type="math_number" id="{v[Uub=5oqQ:%J:P/9g^">
<field name="NUM">2</field>
</block>
</value>
<next>
<block type="variables_set" id="{aiLOA0GN3dxAGw$9gCc">
<field name="VAR" id="S,8z8C-y;usRfMLjR|oj">profilePoints</field>
<value name="VALUE">
<block type="lists_create_with" id=";_WNmH7$;c)Q_26c_VB%">
<mutation items="8">
</mutation>
<value name="ADD0">
<block type="bitbybit.point.pointXYZ" id="?IOUv8CiVx8ZGkMEQo$_">
<value name="X">
<block type="math_number" id="kh?}t,8)rF0G?t|:#J85">
<field name="NUM">-12.5</field>
</block>
</value>
<value name="Y">
<block type="math_number" id="-r4Kf.+;v}=l:E[EwM%^">
<field name="NUM">0</field>
</block>
</value>
<value name="Z">
<block type="math_number" id="osMZhq,`_L93?g#DDx0o">
<field name="NUM">0</field>
</block>
</value>
</block>
</value>
<value name="ADD1">
<block type="bitbybit.point.pointXYZ" id="@4s^pMCg4FRDZD4Y#03{">
<value name="X">
<block type="math_number" id="i)Z9=.h}Rb(BmO0D6Dez">
<field name="NUM">-8</field>
</block>
</value>
<value name="Y">
<block type="math_number" id="tx*U0C^5~85?*:7)]SA|">
<field name="NUM">13</field>
</block>
</value>
<value name="Z">
<block type="math_number" id="@$LWoC#8oH[9{)2LrsvZ">
<field name="NUM">0</field>
</block>
</value>
</block>
</value>
<value name="ADD2">
<block type="bitbybit.point.pointXYZ" id="eKgOfB:7GEh[EArt)5s_">
<value name="X">
<block type="math_number" id="[+sjsMVK?N?qdMg.#n8@">
<field name="NUM">-4</field>
</block>
</value>
<value name="Y">
<block type="math_number" id="W2x9[-}JoYP3QV~ty?Fk">
<field name="NUM">11</field>
</block>
</value>
<value name="Z">
<block type="math_number" id="F!xm_HK*6td:cHUWsBW6">
<field name="NUM">0</field>
</block>
</value>
</block>
</value>
<value name="ADD3">
<block type="bitbybit.point.pointXYZ" id=").|_]~A+gBgkc91-iN,N">
<value name="X">
<block type="math_number" id="bxz~g_a/DR=$3G*x%F2L">
<field name="NUM">-2</field>
</block>
</value>
<value name="Y">
<block type="math_number" id="!|q(u]3%5y%{6BiJ]F!:">
<field name="NUM">6</field>
</block>
</value>
<value name="Z">
<block type="math_number" id=".z9,chAw~]I$e$f$lyoB">
<field name="NUM">0</field>
</block>
</value>
</block>
</value>
<value name="ADD4">
<block type="bitbybit.point.pointXYZ" id="],KZ7[0L,aM/FK]++F$+">
<value name="X">
<block type="math_number" id="7s@H.xrjoOIfk*ZMTH%W">
<field name="NUM">2</field>
</block>
</value>
<value name="Y">
<block type="math_number" id="%-e[WO|e^[)JMEA[J{!e">
<field name="NUM">6</field>
</block>
</value>
<value name="Z">
<block type="math_number" id=":Jx?0F)}l_Pl!sV-z2o:">
<field name="NUM">0</field>
</block>
</value>
</block>
</value>
<value name="ADD5">
<block type="bitbybit.point.pointXYZ" id="5qjGQ,2;pHcNJ/wIo9Im">
<value name="X">
<block type="math_number" id="JVO`*rmaO(Cj3/PB@Soy">
<field name="NUM">4</field>
</block>
</value>
<value name="Y">
<block type="math_number" id="TRXO~MNiqv,C(F:7=!ay">
<field name="NUM">14</field>
</block>
</value>
<value name="Z">
<block type="math_number" id="Y-r59G(Zzr-1:FKxK)h~">
<field name="NUM">0</field>
</block>
</value>
</block>
</value>
<value name="ADD6">
<block type="bitbybit.point.pointXYZ" id="C*kg8E!zh^sQ%/gZA,dy">
<value name="X">
<block type="math_number" id="5NQ%mh-KV=1Ru|[?$NFM">
<field name="NUM">8</field>
</block>
</value>
<value name="Y">
<block type="math_number" id="B_Tp@9gV?K8?7g;K6~Im">
<field name="NUM">17</field>
</block>
</value>
<value name="Z">
<block type="math_number" id="^vx6n;VHR$hD}A@mAToV">
<field name="NUM">0</field>
</block>
</value>
</block>
</value>
<value name="ADD7">
<block type="bitbybit.point.pointXYZ" id="-J`E#A#_5U~`$E*w}Gp1">
<value name="X">
<block type="math_number" id="$bj7~{]Hr*!O*Wy9,lcN">
<field name="NUM">12.5</field>
</block>
</value>
<value name="Y">
<block type="math_number" id="%f*p*nC[FbzR@cG4AQr4">
<field name="NUM">0</field>
</block>
</value>
<value name="Z">
<block type="math_number" id="HH8|mCtlrP;x[0PT@kua">
<field name="NUM">0</field>
</block>
</value>
</block>
</value>
</block>
</value>
<next>
<block type="variables_set" id="?eCY[wdO*~H]`J`*Npi)">
<field name="VAR" id="0a^sM9$lxDVxu2mq_TVh">laptopToDraw</field>
<value name="VALUE">
<block type="bitbybit.occt.fillets.filletEdges" id="H6V*ie{dw+`j*AAuG,n$">
<value name="Shape">
<block type="bitbybit.occt.shapes.solid.createBox" id="VD!^6S6s=*?xAs7io`zL">
<value name="Width">
<block type="variables_get" id="k}+0z|n1GtYo/;|]mWG=">
<field name="VAR" id="wEP~!;MC{M.!*XZQ}(}F">laptopWidth</field>
</block>
</value>
<value name="Length">
<block type="variables_get" id="_i~UIDEg_5*T+s7#:1j~">
<field name="VAR" id="K/@-42QKxE!UWz#$7IYX">laptopThickness</field>
</block>
</value>
<value name="Height">
<block type="variables_get" id="mNIA:zXRG1yKE*70Qp!!">
<field name="VAR" id="3afy[tTcpuyS7A(_?FL+">laptopHeight</field>
</block>
</value>
<value name="Center">
<block type="bitbybit.point.pointXYZ" id="g8S5t4VqjaFoNX`_,x[X">
<value name="X">
<block type="math_number" id="$(sF`=u2)/n9Pe{kD}Bz">
<field name="NUM">0</field>
</block>
</value>
<value name="Y">
<block type="math_arithmetic" id="jo.YD1ZvNhbUV,|YWv+U">
<field name="OP">ADD</field>
<value name="A">
<block type="variables_get" id="3Q]gOoOBW9:v.2Q.9P|H">
<field name="VAR" id="CV:1PX9f4mJwyO*K6wDb">laptopOffsetFromGround</field>
</block>
</value>
<value name="B">
<block type="math_arithmetic" id="IfS!U$Bi2q]#/{s^dj^;">
<field name="OP">DIVIDE</field>
<value name="A">
<block type="variables_get" id="-x-Iy0fUOvpSPEFN0t8r">
<field name="VAR" id="3afy[tTcpuyS7A(_?FL+">laptopHeight</field>
</block>
</value>
<value name="B">
<block type="math_number" id="FIK^C4J[.Y3;)b:g%_]f">
<field name="NUM">2</field>
</block>
</value>
</block>
</value>
</block>
</value>
<value name="Z">
<block type="math_arithmetic" id="XQ(27-opt{UOHct~zfSf">
<field name="OP">ADD</field>
<value name="A">
<block type="variables_get" id="-P,`DTh:o!DV:J)qsYI~">
<field name="VAR" id="X{qP1|JP^1%/9tT{gJfZ">standSideThickness</field>
</block>
</value>
<value name="B">
<block type="math_arithmetic" id="C0_K;9DLvAA7-mZ-+*hP">
<field name="OP">DIVIDE</field>
<value name="A">
<block type="variables_get" id="9GM[ZkY+Iw^XpFP@)Cyk">
<field name="VAR" id="K/@-42QKxE!UWz#$7IYX">laptopThickness</field>
</block>
</value>
<value name="B">
<block type="math_number" id="6y,YvD832aZrP}nMK~5Z">
<field name="NUM">2</field>
</block>
</value>
</block>
</value>
</block>
</value>
</block>
</value>
</block>
</value>
<value name="Radius">
<block type="math_number" id="GGR%#C(U4A04iolTucGF">
<field name="NUM">0.2</field>
</block>
</value>
</block>
</value>
<next>
<block type="variables_set" id="B#G}:LU5DQ7:9Vbf4Tf]">
<field name="VAR" id="#D2?Rt8,??{r3}yl-afe">laptopStandThickSolid</field>
<value name="VALUE">
<block type="bitbybit.occt.operations.makeThickSolidSimple" id="Vrx-e?a_~nRzebpLASuJ">
<value name="Shape">
<block type="bitbybit.occt.fillets.filletEdges" id="jw63z*=^YWu?;KOCHn!e">
<value name="Shape">
<block type="bitbybit.occt.operations.extrude" id="j)=[5dHLv:DKvz/T_l7V">
<value name="Shape">
<block type="bitbybit.occt.shapes.wire.createPolygonWire" id="_(@.7WpA)p-/mwYqm#[K">
<value name="Points">
<block type="variables_get" id="=f;drh1^;f6i?|qA,XKK">
<field name="VAR" id="S,8z8C-y;usRfMLjR|oj">profilePoints</field>
</block>
</value>
</block>
</value>
<value name="Direction">
<block type="bitbybit.point.pointXYZ" id="fQ!9AwE!/W+9x04Q~hF6">
<value name="X">
<block type="math_number" id="~Gw$jb1p.(0OK5tGo,d6">
<field name="NUM">0</field>
</block>
</value>
<value name="Y">
<block type="math_number" id="^qd@NkU{8$wlB4w7e,@4">
<field name="NUM">0</field>
</block>
</value>
<value name="Z">
<block type="math_arithmetic" id="_QkM:WVALXZkoKAmAw!Z">
<field name="OP">ADD</field>
<value name="A">
<block type="variables_get" id="ha^z684,)4o[3O#Ufj~F">
<field name="VAR" id="K/@-42QKxE!UWz#$7IYX">laptopThickness</field>
</block>
</value>
<value name="B">
<block type="math_arithmetic" id="$;^qs61]f|c5,oXTn8Xo">
<field name="OP">MULTIPLY</field>
<value name="A">
<block type="variables_get" id="0nO|mz~DBt|sJn4tk(tq">
<field name="VAR" id="X{qP1|JP^1%/9tT{gJfZ">standSideThickness</field>
</block>
</value>
<value name="B">
<block type="math_number" id="Gthe[)sVw#a{a;yWRw=O">
<field name="NUM">2</field>
</block>
</value>
</block>
</value>
</block>
</value>
</block>
</value>
</block>
</value>
<value name="Radius">
<block type="math_number" id="SpYdD*n*]U7.wog,dOaF">
<field name="NUM">1.5</field>
</block>
</value>
</block>
</value>
<value name="Offset">
<block type="math_number" id="I;;`QPav[izt)|+ZEOG5">
<field name="NUM">-0.5</field>
</block>
</value>
</block>
</value>
<next>
<block type="bitbybit.draw.drawAnyAsyncNoReturn" id="#uk*y$V%6OqaSf[l`!r3">
<value name="Entity">
<block type="bitbybit.occt.booleans.difference" id="zZWEHK.t0S2z`!WB4?s(">
<value name="Shape">
<block type="variables_get" id="#K^*;vq10#PgcJ{n?n4o">
<field name="VAR" id="#D2?Rt8,??{r3}yl-afe">laptopStandThickSolid</field>
</block>
</value>
<value name="Shapes">
<block type="lists_create_with" id="(MR_BpM[I|{5%M1[#bo?">
<mutation items="1">
</mutation>
<value name="ADD0">
<block type="variables_get" id="/fuN4Bg(.7a%~l0CN[1l">
<field name="VAR" id="0a^sM9$lxDVxu2mq_TVh">laptopToDraw</field>
</block>
</value>
</block>
</value>
<value name="KeepEdges">
<block type="logic_boolean" id="zEk;,(rbHa?Z3KogPX7B">
<field name="BOOL">FALSE</field>
</block>
</value>
</block>
</value>
<value name="Options">
<block type="bitbybit.draw.optionsOcctShape" id="w1#EjJ|c-N$8;;yF+,k.">
<value name="FaceOpacity">
<block type="math_number" id="RP|)!6XL%YX`.O~)/4D0">
<field name="NUM">1</field>
</block>
</value>
<value name="EdgeOpacity">
<block type="math_number" id="+WYlu$/G2]i;OiP(p:oy">
<field name="NUM">1</field>
</block>
</value>
<value name="EdgeColour">
<block type="colour_picker" id="(|xuOJhJ@F[Or]B??P$6">
<field name="COLOUR">#ffffff</field>
</block>
</value>
<value name="FaceColour">
<block type="colour_picker" id="A/ShGcPuw4Lni;[:-AY=">
<field name="COLOUR">#990000</field>
</block>
</value>
<value name="EdgeWidth">
<block type="math_number" id="cC8-IR5L[3ns6}i1iSzX">
<field name="NUM">5</field>
</block>
</value>
<value name="DrawEdges">
<block type="logic_boolean" id="Jp-jJLS2_w_%[b=0jGv/">
<field name="BOOL">TRUE</field>
</block>
</value>
<value name="DrawFaces">
<block type="logic_boolean" id="?b^B@Ybf{ykR`wuC|%S^">
<field name="BOOL">TRUE</field>
</block>
</value>
<value name="Precision">
<block type="math_number" id=")2L]3sGcx{x4=9zl}|d7">
<field name="NUM">0.05</field>
</block>
</value>
<value name="DrawEdgeIndexes">
<block type="logic_boolean" id=":#n7YF`6|:)gKy]4AYSp">
<field name="BOOL">FALSE</field>
</block>
</value>
<value name="EdgeIndexHeight">
<block type="math_number" id="_bDN|3S$o,bc~jwt~Ej@">
<field name="NUM">0.06</field>
</block>
</value>
<value name="EdgeIndexColour">
<block type="colour_picker" id="Mx2`7:.6qF#t}t/q1;@6">
<field name="COLOUR">#bbbbff</field>
</block>
</value>
<value name="DrawFaceIndexes">
<block type="logic_boolean" id="cESUSF*LulFTk!NF0g18">
<field name="BOOL">FALSE</field>
</block>
</value>
<value name="FaceIndexHeight">
<block type="math_number" id="jW/8MvWL!aY{):$*N|8G">
<field name="NUM">0.06</field>
</block>
</value>
<value name="FaceIndexColour">
<block type="colour_picker" id="oB#*0K+sZ1H2eh=c-0n2">
<field name="COLOUR">#0000ff</field>
</block>
</value>
</block>
</value>
<next>
<block type="bitbybit.draw.drawAnyAsyncNoReturn" id="h@@i1[-mQWr7*d$0cSol">
<value name="Entity">
<block type="variables_get" id="2otb0Z%oOE1KL*q?,pc)">
<field name="VAR" id="0a^sM9$lxDVxu2mq_TVh">laptopToDraw</field>
</block>
</value>
<value name="Options">
<block type="bitbybit.draw.optionsOcctShape" id="TQBN/ZNlYpZYW%)%zBmj">
<value name="FaceOpacity">
<block type="math_number" id="R!f*xHl]jz?J^:S?)RRZ">
<field name="NUM">1</field>
</block>
</value>
<value name="EdgeOpacity">
<block type="math_number" id="EE7z_=[w+-H^Q6D-E{im">
<field name="NUM">0.4</field>
</block>
</value>
<value name="EdgeColour">
<block type="colour_picker" id="a,{4VnfO^|fhb`cT2!T0">
<field name="COLOUR">#ffffff</field>
</block>
</value>
<value name="FaceColour">
<block type="colour_picker" id="$?Hk{U0}imQZ:fL2Xi+x">
<field name="COLOUR">#ffffff</field>
</block>
</value>
<value name="EdgeWidth">
<block type="math_number" id="z7b6/%@y9*9BGW]M(7dW">
<field name="NUM">5</field>
</block>
</value>
<value name="DrawEdges">
<block type="logic_boolean" id="B-GhyPx{HRUU_m|_W$tY">
<field name="BOOL">TRUE</field>
</block>
</value>
<value name="DrawFaces">
<block type="logic_boolean" id="hPK[_{EXT2lVqSKM{Rsi">
<field name="BOOL">TRUE</field>
</block>
</value>
<value name="Precision">
<block type="math_number" id="LUHtUvHv)+0~jXcQ*d0W">
<field name="NUM">0.05</field>
</block>
</value>
<value name="DrawEdgeIndexes">
<block type="logic_boolean" id="Tm5!3nN`zm|^6*$Mc7s%">
<field name="BOOL">FALSE</field>
</block>
</value>
<value name="EdgeIndexHeight">
<block type="math_number" id="06XaN7xMFh.4VjLfx1EW">
<field name="NUM">0.06</field>
</block>
</value>
<value name="EdgeIndexColour">
<block type="colour_picker" id="}U_[OBu9W0|^mv*W9.ZW">
<field name="COLOUR">#bbbbff</field>
</block>
</value>
<value name="DrawFaceIndexes">
<block type="logic_boolean" id="PV40~?B[-`K*L@*5m6W;">
<field name="BOOL">FALSE</field>
</block>
</value>
<value name="FaceIndexHeight">
<block type="math_number" id="6tyvvx6D/V/s%ht+K$=~">
<field name="NUM">0.06</field>
</block>
</value>
<value name="FaceIndexColour">
<block type="colour_picker" id="=W~k8dB6Wf)e_{l6*()G">
<field name="COLOUR">#0000ff</field>
</block>
</value>
</block>
</value>
</block>
</next>
</block>
</next>
</block>
</next>
</block>
</next>
</block>
</next>
</block>
</next>
</block>
</next>
</block>
</next>
</block>
</next>
</block>
</xml>
Plans & Pricing
Choose Your Plan
Editor plans for 3D development, API keys for server-side CAD algorithms
Editor Plans
Cloud storage, private projects & 3D algorithms for Bitbybit editors
API Key Plans
Run CAD algorithms on managed cloud servers from your own backend applications
B2B
ENTERPRISE
Custom pricingCustom software development, dedicated servers & CAD automation at scale.
CAD Automation & Software
- Custom software development
- Cloud CAD automation pipelines
- 3D configurators (STEP & GLTF)
- Batch export jobs
- Custom algorithms & deployment
Infrastructure & Support
- Custom compute allocation
- Dedicated / VPS server tenants
- Long-running computation jobs
- Custom upload limits & overage
- SLA & premium support
