Script: Bitbybit runner cube example in Blockly

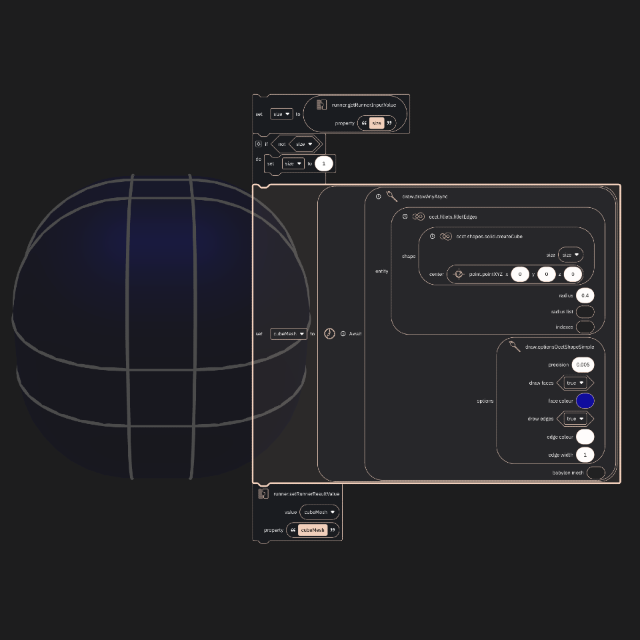

Bitbybit runner cube example in Blockly picture
Type
Blockly logo indicatorblockly
Date Created
Jul 21, 2024, 4:43:48 PM
Last Edit Date
May 27, 2025, 9:37:51 AM

Project Information

This project contains some examples used in various tutorials for showing how BITBYBIT-RUNNER.JS works

View Full Project

Script Code

<xml xmlns="https://developers.google.com/blockly/xml">
 <variables>
  <variable id="_DJUCx+SE9SH3xGN1yo-">size</variable>
  <variable id="K],h0m5CA/p:@(d}jL)q">cubeMesh</variable>
 </variables>
 <block type="variables_set" id="TpuuxC2nOh~F5q=5c4{i" x="-16" y="-206">
  <field name="VAR" id="_DJUCx+SE9SH3xGN1yo-">size</field>
  <value name="VALUE">
   <block type="bitbybit.runner.getRunnerInputValue" id="T}wb0d1H1WU4~rHqU6Z8">
    <value name="Property">
     <block type="text" id="))|_yz$OaS^UU8kI5r!$">
      <field name="TEXT">size</field>
     </block>
    </value>
   </block>
  </value>
  <next>
   <block type="controls_if" id="gBOREBm4^D%21f7g2GAr">
    <value name="IF0">
     <block type="logic_negate" id="a!54OP*F+/vyHMT(6!p]">
      <value name="BOOL">
       <block type="variables_get" id="U=1tRyc6cG3CN^7f:1E+">
        <field name="VAR" id="_DJUCx+SE9SH3xGN1yo-">size</field>
       </block>
      </value>
     </block>
    </value>
    <statement name="DO0">
     <block type="variables_set" id="!XXE^VXr*QcV3b?1sX8e">
      <field name="VAR" id="_DJUCx+SE9SH3xGN1yo-">size</field>
      <value name="VALUE">
       <block type="math_number" id="*!g;!/N-XM^`?17ANEcw">
        <field name="NUM">1</field>
       </block>
      </value>
     </block>
    </statement>
    <next>
     <block type="variables_set" id="glmyDYydQL2=ex8bMhvA">
      <field name="VAR" id="K],h0m5CA/p:@(d}jL)q">cubeMesh</field>
      <value name="VALUE">
       <block type="base_time_await_return" id="H9k.WKw7O5?dsysdzRg?">
        <value name="Promise">
         <block type="bitbybit.draw.drawAnyAsync" id="3n^@/8zZXkRWbQFt?[(m">
          <value name="Entity">
           <block type="bitbybit.occt.fillets.filletEdges" id="6-?FxF/TH`00-Uh|_T12">
            <value name="Shape">
             <block type="bitbybit.occt.shapes.solid.createCube" id="NjKMI;:*GYJ2).3M?yj6">
              <value name="Size">
               <block type="variables_get" id="#GiqH1I-B|FAwr$O]yuQ">
                <field name="VAR" id="_DJUCx+SE9SH3xGN1yo-">size</field>
               </block>
              </value>
              <value name="Center">
               <block type="bitbybit.point.pointXYZ" id="..HOv-y|X^q[[1Ktwe5h">
                <value name="X">
                 <block type="math_number" id="1k7i]oML(;2VOAJbhqad">
                  <field name="NUM">0</field>
                 </block>
                </value>
                <value name="Y">
                 <block type="math_number" id="T4v#wdY({5vgxbLkK,3V">
                  <field name="NUM">0</field>
                 </block>
                </value>
                <value name="Z">
                 <block type="math_number" id=",U4KG,+W|/G8$!Z*7WNe">
                  <field name="NUM">0</field>
                 </block>
                </value>
               </block>
              </value>
             </block>
            </value>
            <value name="Radius">
             <block type="math_number" id="T4X)S])jP[|ZQX$Ghya4">
              <field name="NUM">0.4</field>
             </block>
            </value>
           </block>
          </value>
          <value name="Options">
           <block type="bitbybit.draw.optionsOcctShapeSimple" id="D6NqR%pIp.xzBt?@?tV4">
            <value name="Precision">
             <block type="math_number" id="+gI|`k);rE#Q5p/2)9aE">
              <field name="NUM">0.005</field>
             </block>
            </value>
            <value name="DrawFaces">
             <block type="logic_boolean" id="6v},po.Bo3pTR=AliWmO">
              <field name="BOOL">TRUE</field>
             </block>
            </value>
            <value name="FaceColour">
             <block type="colour_picker" id="-9c[v3QN;=c):0z_,nQv">
              <field name="COLOUR">#000099</field>
             </block>
            </value>
            <value name="DrawEdges">
             <block type="logic_boolean" id="yKIqn0u8[sSMp}7/)/R}">
              <field name="BOOL">TRUE</field>
             </block>
            </value>
            <value name="EdgeColour">
             <block type="colour_picker" id="XDSFsc*R[}bp:+5axLbf">
              <field name="COLOUR">#ffffff</field>
             </block>
            </value>
            <value name="EdgeWidth">
             <block type="math_number" id="*g6LsjH2*-fg=lAr9Gx*">
              <field name="NUM">1</field>
             </block>
            </value>
           </block>
          </value>
         </block>
        </value>
       </block>
      </value>
      <next>
       <block type="bitbybit.runner.setRunnerResultValue" id="#sP(;i?@t;x-M0rw:m)B">
        <value name="Value">
         <block type="variables_get" id="{BLbxT(e#=Ta`*:wPXW,">
          <field name="VAR" id="K],h0m5CA/p:@(d}jL)q">cubeMesh</field>
         </block>
        </value>
        <value name="Property">
         <block type="text" id=",@UKLQBJ|:iH-=2p|4tW">
          <field name="TEXT">cubeMesh</field>
         </block>
        </value>
       </block>
      </next>
     </block>
    </next>
   </block>
  </next>
 </block>
</xml>
