Script: Curvy vase model
- Type
rete- Project

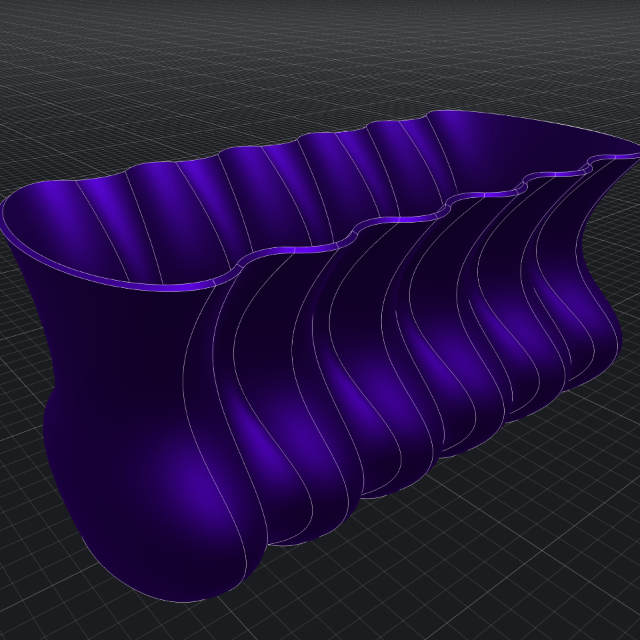

- Curved Vase
- Author
- creator3d
- Date Created
- Apr 17, 2023, 10:14:50 AM
- Last Edit Date
- Apr 24, 2023, 2:01:31 PM
Script Code
{
"id": "bitbybit-dev@0.0.1",
"nodes": {
"10": {
"id": 10,
"data": {
"backFaceCulling": false,
"simpleOutput": true,
"width": 400,
"height": 400,
"subdivisions": 10,
"majorUnitFrequency": 10,
"minorUnitVisibility": 0.45,
"gridRatio": 0.5,
"opacity": 0.5,
"mainColor": "#ffffff",
"secondaryColor": "#ffffff"
},
"inputs": {
"width": {
"connections": []
},
"height": {
"connections": []
},
"subdivisions": {
"connections": []
},
"majorUnitFrequency": {
"connections": []
},
"minorUnitVisibility": {
"connections": []
},
"gridRatio": {
"connections": []
},
"opacity": {
"connections": []
},
"backFaceCulling": {
"connections": []
},
"mainColor": {
"connections": []
},
"secondaryColor": {
"connections": []
}
},
"outputs": {
"result": {
"connections": []
}
},
"position": [
1546.4138700812468,
1860.3766978357235
],
"name": "bitbybit.draw.drawGridMesh"
},
"18": {
"id": 18,
"data": {
"hide": false,
"simpleOutput": true,
"x": 0,
"y": 0,
"z": 0,
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
}
},
"inputs": {
"x": {
"connections": [
{
"node": 22,
"output": "result",
"data": {}
}
]
},
"y": {
"connections": []
},
"z": {
"connections": []
}
},
"outputs": {
"result": {
"connections": [
{
"node": 27,
"input": "center",
"data": {}
},
{
"node": 33,
"input": "center",
"data": {}
}
]
}
},
"position": [
2205.2773213201262,
772.7914253999558
],
"name": "bitbybit.vector.vectorXYZ"
},
"19": {
"id": 19,
"data": {
"simpleOutput": true,
"step": 2,
"min": -5,
"max": 5
},
"inputs": {
"step": {
"connections": []
},
"min": {
"connections": []
},
"max": {
"connections": []
}
},
"outputs": {
"result": {
"connections": [
{
"node": 20,
"input": "listElements",
"data": {}
}
]
}
},
"position": [
1347.3753016603566,
579.8606571445177
],
"name": "bitbybit.vector.span"
},
"20": {
"id": 20,
"data": {},
"inputs": {
"listElements": {
"connections": [
{
"node": 19,
"output": "result",
"data": {}
}
]
}
},
"outputs": {
"list": {
"connections": [
{
"node": 22,
"input": "list",
"data": {}
}
]
}
},
"position": [
1665.920460376686,
686.4738978546959
],
"name": "createList"
},
"22": {
"id": 22,
"data": {
"nrLevels": 2
},
"inputs": {
"list": {
"connections": [
{
"node": 20,
"output": "list",
"data": {}
}
]
},
"nrLevels": {
"connections": []
}
},
"outputs": {
"result": {
"connections": [
{
"node": 18,
"input": "x",
"data": {}
}
]
}
},
"position": [
1805.6115284691207,
781.9543588685884
],
"name": "flatten"
},
"25": {
"id": 25,
"data": {
"keepEdges": false,
"hide": true,
"simpleOutput": true,
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
}
},
"inputs": {
"shapes": {
"connections": [
{
"node": 26,
"output": "list",
"data": {}
}
]
},
"keepEdges": {
"connections": []
}
},
"outputs": {
"result": {
"connections": [
{
"node": 28,
"input": "shape",
"data": {}
}
]
}
},
"position": [
3108.9871558023806,
738.9716066805942
],
"name": "bitbybit.occt.booleans.union"
},
"26": {
"id": 26,
"data": {},
"inputs": {
"listElements": {
"connections": [
{
"node": 27,
"output": "result",
"data": {}
}
]
}
},
"outputs": {
"list": {
"connections": [
{
"node": 25,
"input": "shapes",
"data": {}
}
]
}
},
"position": [
2863.408651280996,
782.3279152426667
],
"name": "createList"
},
"27": {
"id": 27,
"data": {
"hide": true,
"simpleOutput": true,
"radiusMinor": 1.2,
"radiusMajor": 2,
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
}
},
"inputs": {
"center": {
"connections": [
{
"node": 18,
"output": "result",
"data": {}
}
]
},
"direction": {
"connections": []
},
"radiusMinor": {
"connections": []
},
"radiusMajor": {
"connections": []
}
},
"outputs": {
"result": {
"connections": [
{
"node": 26,
"input": "listElements",
"data": {}
}
]
}
},
"position": [
2511.1065284941237,
744.8530099221007
],
"name": "bitbybit.occt.shapes.face.createEllipseFace"
},
"28": {
"id": 28,
"data": {
"hide": true,
"simpleOutput": true,
"index": 0,
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
}
},
"inputs": {
"shape": {
"connections": [
{
"node": 25,
"output": "result",
"data": {}
}
]
},
"index": {
"connections": []
}
},
"outputs": {
"result": {
"connections": [
{
"node": 32,
"input": "shape",
"data": {}
}
]
}
},
"position": [
3428.935280649899,
782.8008659954111
],
"name": "bitbybit.occt.shapes.wire.getWire"
},
"32": {
"id": 32,
"data": {
"hide": true,
"simpleOutput": true,
"radius": 0.3,
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
}
},
"inputs": {
"shape": {
"connections": [
{
"node": 28,
"output": "result",
"data": {}
}
]
},
"radius": {
"connections": []
},
"radiusList": {
"connections": []
},
"indexes": {
"connections": []
},
"direction": {
"connections": []
}
},
"outputs": {
"result": {
"connections": [
{
"node": 42,
"input": "shape",
"data": {}
},
{
"node": 45,
"input": "listElements",
"data": {}
},
{
"node": 47,
"input": "shape",
"data": {}
}
]
}
},
"position": [
3758.8518253527914,
768.1153234283715
],
"name": "bitbybit.occt.fillets.fillet3DWire"
},
"33": {
"id": 33,
"data": {
"hide": true,
"simpleOutput": true,
"radiusMinor": 1.4,
"radiusMajor": 3,
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
}
},
"inputs": {
"center": {
"connections": [
{
"node": 18,
"output": "result",
"data": {}
}
]
},
"direction": {
"connections": []
},
"radiusMinor": {
"connections": []
},
"radiusMajor": {
"connections": []
}
},
"outputs": {
"result": {
"connections": [
{
"node": 34,
"input": "listElements",
"data": {}
}
]
}
},
"position": [
2523.045885439077,
1088.2847587343992
],
"name": "bitbybit.occt.shapes.face.createEllipseFace"
},
"34": {
"id": 34,
"data": {},
"inputs": {
"listElements": {
"connections": [
{
"node": 33,
"output": "result",
"data": {}
}
]
}
},
"outputs": {
"list": {
"connections": [
{
"node": 35,
"input": "shapes",
"data": {}
}
]
}
},
"position": [
2861.150325431853,
1175.4262700298088
],
"name": "createList"
},
"35": {
"id": 35,
"data": {
"keepEdges": false,
"hide": true,
"simpleOutput": true,
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
}
},
"inputs": {
"shapes": {
"connections": [
{
"node": 34,
"output": "list",
"data": {}
}
]
},
"keepEdges": {
"connections": []
}
},
"outputs": {
"result": {
"connections": [
{
"node": 36,
"input": "shape",
"data": {}
}
]
}
},
"position": [
3117.7084203279887,
1147.0901794285091
],
"name": "bitbybit.occt.booleans.union"
},
"36": {
"id": 36,
"data": {
"hide": true,
"simpleOutput": true,
"index": 0,
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
}
},
"inputs": {
"shape": {
"connections": [
{
"node": 35,
"output": "result",
"data": {}
}
]
},
"index": {
"connections": []
}
},
"outputs": {
"result": {
"connections": [
{
"node": 37,
"input": "shape",
"data": {}
}
]
}
},
"position": [
3427.7111906163436,
1133.766346947446
],
"name": "bitbybit.occt.shapes.wire.getWire"
},
"37": {
"id": 37,
"data": {
"hide": true,
"simpleOutput": true,
"radius": 0.6,
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
}
},
"inputs": {
"shape": {
"connections": [
{
"node": 36,
"output": "result",
"data": {}
}
]
},
"radius": {
"connections": []
},
"radiusList": {
"connections": []
},
"indexes": {
"connections": []
},
"direction": {
"connections": []
}
},
"outputs": {
"result": {
"connections": [
{
"node": 38,
"input": "shape",
"data": {}
},
{
"node": 43,
"input": "shape",
"data": {}
}
]
}
},
"position": [
3764.9345946011026,
1152.253997219185
],
"name": "bitbybit.occt.fillets.fillet3DWire"
},
"38": {
"id": 38,
"data": {
"hide": true,
"simpleOutput": true,
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
}
},
"inputs": {
"shape": {
"connections": [
{
"node": 37,
"output": "result",
"data": {}
}
]
},
"translation": {
"connections": [
{
"node": 39,
"output": "result",
"data": {}
}
]
}
},
"outputs": {
"result": {
"connections": [
{
"node": 45,
"input": "listElements",
"data": {}
}
]
}
},
"position": [
4409.394359254515,
1319.1711405551107
],
"name": "bitbybit.occt.transforms.translate"
},
"39": {
"id": 39,
"data": {
"hide": true,
"simpleOutput": true,
"x": 0,
"y": 2,
"z": 0,
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
}
},
"inputs": {
"x": {
"connections": []
},
"y": {
"connections": []
},
"z": {
"connections": []
}
},
"outputs": {
"result": {
"connections": [
{
"node": 38,
"input": "translation",
"data": {}
}
]
}
},
"position": [
4091.474308107737,
1498.102062472317
],
"name": "bitbybit.vector.vectorXYZ"
},
"40": {
"id": 40,
"data": {
"hide": true,
"simpleOutput": true,
"x": 0,
"y": 3,
"z": 0,
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
}
},
"inputs": {
"x": {
"connections": []
},
"y": {
"connections": []
},
"z": {
"connections": []
}
},
"outputs": {
"result": {
"connections": [
{
"node": 42,
"input": "translation",
"data": {}
}
]
}
},
"position": [
4077.1116010172605,
1812.2146005159502
],
"name": "bitbybit.vector.vectorXYZ"
},
"41": {
"id": 41,
"data": {
"hide": true,
"simpleOutput": true,
"x": 0,
"y": 6,
"z": 0,
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
}
},
"inputs": {
"x": {
"connections": []
},
"y": {
"connections": []
},
"z": {
"connections": []
}
},
"outputs": {
"result": {
"connections": [
{
"node": 43,
"input": "translation",
"data": {}
}
]
}
},
"position": [
4081.6776766143976,
2126.73813674604
],
"name": "bitbybit.vector.vectorXYZ"
},
"42": {
"id": 42,
"data": {
"hide": true,
"simpleOutput": true,
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
}
},
"inputs": {
"shape": {
"connections": [
{
"node": 32,
"output": "result",
"data": {}
}
]
},
"translation": {
"connections": [
{
"node": 40,
"output": "result",
"data": {}
}
]
}
},
"outputs": {
"result": {
"connections": [
{
"node": 45,
"input": "listElements",
"data": {}
}
]
}
},
"position": [
4413.966563914506,
1746.8432391112742
],
"name": "bitbybit.occt.transforms.translate"
},
"43": {
"id": 43,
"data": {
"hide": true,
"simpleOutput": true,
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
}
},
"inputs": {
"shape": {
"connections": [
{
"node": 37,
"output": "result",
"data": {}
}
]
},
"translation": {
"connections": [
{
"node": 41,
"output": "result",
"data": {}
}
]
}
},
"outputs": {
"result": {
"connections": [
{
"node": 45,
"input": "listElements",
"data": {}
}
]
}
},
"position": [
4412.311335233013,
2106.4491912482467
],
"name": "bitbybit.occt.transforms.translate"
},
"44": {
"id": 44,
"data": {
"makeSolid": false,
"closed": false,
"periodic": false,
"straight": false,
"useSmoothing": false,
"hide": true,
"simpleOutput": true,
"nrPeriodicSections": 10,
"maxUDegree": 3,
"tolerance": 1e-7,
"parType": "approxCentripetal",
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
}
},
"inputs": {
"shapes": {
"connections": [
{
"node": 46,
"output": "result",
"data": {}
}
]
},
"makeSolid": {
"connections": []
},
"closed": {
"connections": []
},
"periodic": {
"connections": []
},
"straight": {
"connections": []
},
"nrPeriodicSections": {
"connections": []
},
"useSmoothing": {
"connections": []
},
"maxUDegree": {
"connections": []
},
"tolerance": {
"connections": []
},
"parType": {
"connections": []
},
"startVertex": {
"connections": []
},
"endVertex": {
"connections": []
}
},
"outputs": {
"result": {
"connections": [
{
"node": 49,
"input": "listElements",
"data": {}
}
]
}
},
"position": [
5189.307506157054,
1477.44742450557
],
"name": "bitbybit.occt.operations.loftAdvanced"
},
"45": {
"id": 45,
"data": {},
"inputs": {
"listElements": {
"connections": [
{
"node": 32,
"output": "result",
"data": {}
},
{
"node": 38,
"output": "result",
"data": {}
},
{
"node": 42,
"output": "result",
"data": {}
},
{
"node": 43,
"output": "result",
"data": {}
}
]
}
},
"outputs": {
"list": {
"connections": [
{
"node": 46,
"input": "list",
"data": {}
}
]
}
},
"position": [
4763.930749064797,
1505.991428290331
],
"name": "createList"
},
"46": {
"id": 46,
"data": {},
"inputs": {
"list": {
"connections": [
{
"node": 45,
"output": "list",
"data": {}
}
]
}
},
"outputs": {
"result": {
"connections": [
{
"node": 44,
"input": "shapes",
"data": {}
}
]
}
},
"position": [
4969.202845758143,
1472.5792119645705
],
"name": "bitbybit.lists.reverse"
},
"47": {
"id": 47,
"data": {
"planar": false,
"hide": true,
"simpleOutput": true,
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
}
},
"inputs": {
"shape": {
"connections": [
{
"node": 32,
"output": "result",
"data": {}
}
]
},
"planar": {
"connections": []
}
},
"outputs": {
"result": {
"connections": [
{
"node": 49,
"input": "listElements",
"data": {}
}
]
}
},
"position": [
5243.1676127747805,
1167.7512095118507
],
"name": "bitbybit.occt.shapes.face.createFaceFromWire"
},
"49": {
"id": 49,
"data": {},
"inputs": {
"listElements": {
"connections": [
{
"node": 44,
"output": "result",
"data": {}
},
{
"node": 47,
"output": "result",
"data": {}
}
]
}
},
"outputs": {
"list": {
"connections": [
{
"node": 50,
"input": "shapes",
"data": {}
}
]
}
},
"position": [
5605.454472001315,
1316.2421083966472
],
"name": "createList"
},
"50": {
"id": 50,
"data": {
"hide": true,
"simpleOutput": true,
"tolerance": 1e-7,
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
}
},
"inputs": {
"shapes": {
"connections": [
{
"node": 49,
"output": "list",
"data": {}
}
]
},
"tolerance": {
"connections": []
}
},
"outputs": {
"result": {
"connections": [
{
"node": 51,
"input": "shape",
"data": {}
}
]
}
},
"position": [
5827.983289154294,
1307.5711056651132
],
"name": "bitbybit.occt.shapes.shell.sewFaces"
},
"51": {
"id": 51,
"data": {
"hide": true,
"simpleOutput": true,
"radius": 0.3,
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
}
},
"inputs": {
"shape": {
"connections": [
{
"node": 50,
"output": "result",
"data": {}
}
]
},
"radius": {
"connections": []
},
"radiusList": {
"connections": []
},
"indexes": {
"connections": []
}
},
"outputs": {
"result": {
"connections": [
{
"node": 54,
"input": "shape",
"data": {}
}
]
}
},
"position": [
6220.144363262699,
1412.8320531280797
],
"name": "bitbybit.occt.fillets.filletEdges"
},
"52": {
"id": 52,
"data": {
"simpleOutput": true
},
"inputs": {
"entity": {
"connections": [
{
"node": 54,
"output": "result",
"data": {}
}
]
},
"options": {
"connections": [
{
"node": 53,
"output": "result",
"data": {}
}
]
}
},
"outputs": {
"result": {
"connections": []
}
},
"position": [
7125.4198983733695,
1856.1210313548497
],
"name": "bitbybit.draw.drawAnyAsync"
},
"53": {
"id": 53,
"data": {
"drawEdges": true,
"drawFaces": true,
"drawEdgeIndexes": false,
"drawFaceIndexes": false,
"simpleOutput": true,
"faceOpacity": 1,
"edgeOpacity": 1,
"edgeColour": "#ffffff",
"faceColour": "#2b00ff",
"edgeWidth": 0.5,
"precision": 0.002,
"edgeIndexHeight": 0.06,
"edgeIndexColour": "ff00ff",
"faceIndexHeight": 0.06,
"faceIndexColour": "#0000ff"
},
"inputs": {
"faceOpacity": {
"connections": []
},
"edgeOpacity": {
"connections": []
},
"edgeColour": {
"connections": []
},
"faceColour": {
"connections": []
},
"faceMaterial": {
"connections": []
},
"edgeWidth": {
"connections": []
},
"drawEdges": {
"connections": []
},
"drawFaces": {
"connections": []
},
"precision": {
"connections": []
},
"drawEdgeIndexes": {
"connections": []
},
"edgeIndexHeight": {
"connections": []
},
"edgeIndexColour": {
"connections": []
},
"drawFaceIndexes": {
"connections": []
},
"faceIndexHeight": {
"connections": []
},
"faceIndexColour": {
"connections": []
}
},
"outputs": {
"result": {
"connections": [
{
"node": 52,
"input": "options",
"data": {}
}
]
}
},
"position": [
6089.112831483838,
1792.3832355686482
],
"name": "bitbybit.draw.optionsOcctShape"
},
"54": {
"id": 54,
"data": {
"hide": true,
"simpleOutput": true,
"offset": -0.1,
"genericNodeData": {
"hide": true,
"oneOnOne": false,
"flatten": 0
}
},
"inputs": {
"shape": {
"connections": [
{
"node": 51,
"output": "result",
"data": {}
}
]
},
"offset": {
"connections": []
}
},
"outputs": {
"result": {
"connections": [
{
"node": 52,
"input": "entity",
"data": {}
}
]
}
},
"position": [
6743.329002578159,
1639.7889585591763
],
"name": "bitbybit.occt.operations.makeThickSolidSimple"
}
}
} Cloud Plans
Choose Your Plan
Select the perfect plan for your 3D development needs
FREE
€0/forever- Core 3D algorithms
- Unlimited public projects
- Small cloud storage
Get Started
SILVER
€6/month- Complex 3D algorithms
- Private projects
- Mid-size cloud storage
Choose Silver
Most Popular
GOLD
€12/month- Advanced 3D algorithms
- Unlimited private projects
- Large cloud storage
Choose Gold
B2B
ENTERPRISE
Custom pricing- Managed Bitbybit CAD Cloud
- Batch CAD hundreds of files
- Long lasting 3D computations
Learn More
